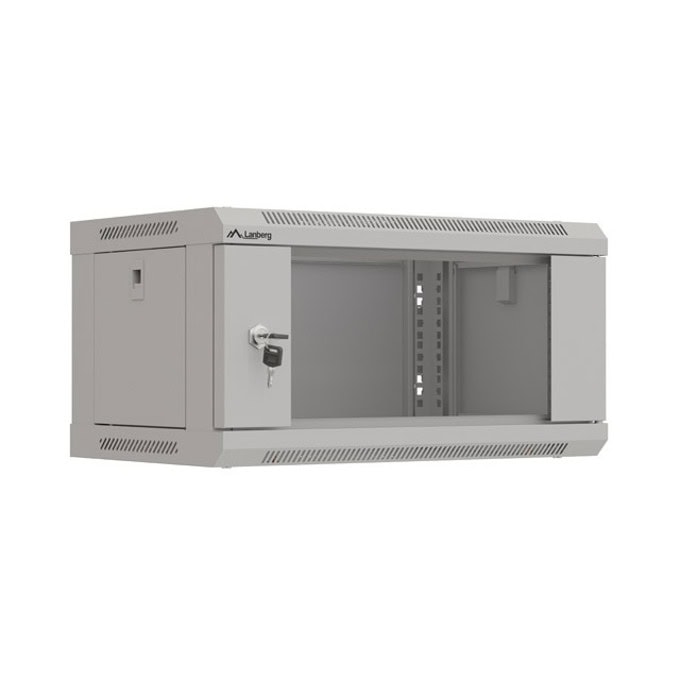

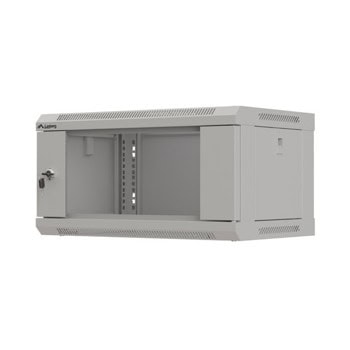

Комуникационен шкаф Lanberg WF03-5304-10S, 19", 4U, 28.1 x 35 x 54 cm, товароносимост до 60кг, сив

Excellent ventilation and room for a fan:

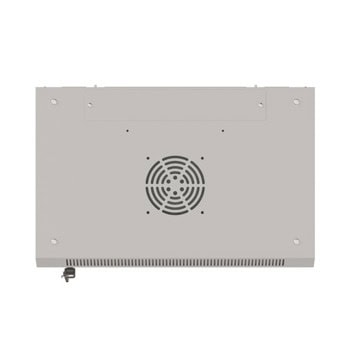

To ensure adequate airflow, there are ventilation holes in the top and bottom panels. In addition, the cabinet has a special place for mounting a 120×120 mm fan, which significantly improves air circulation and reduces the risk of overheating equipment. Thanks to this, WF03 cabinets ensure optimal working conditions for the equipment installed in them and their long service life.


Specifications

Type of cabinet
Wall mount

Size
19"

ICT height
4 U

Assembly type

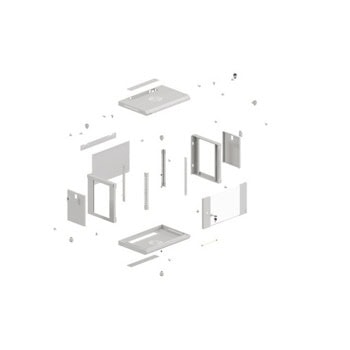

Self-assembly

Working depth
305 mm

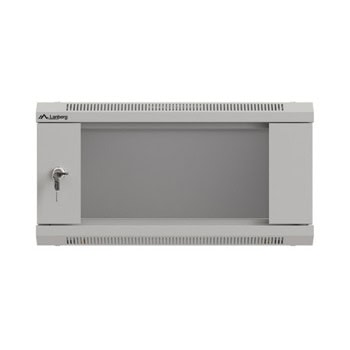

Front door type
Temper glass

Door type
Single-leaf

Maximum front door opening angle
220 °

Maximum static load
60 kg

Slot amount for fans
2

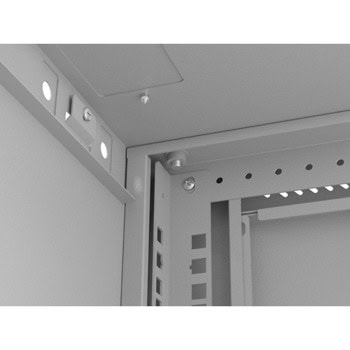

Number of vertical rails
4

Colour
Gray

RAL color
RAL7035

Weatherproof rating
IP20

Front door thickness
5 mm

Upper & lower panel thickness
1 mm

Side panel thickness
1 mm

Mounting rails thickness
1.5 mm

Frame thickness
1.2 mm

Other elements sheet thickness
1 mm

Depth
350 mm

Width
540 mm

Height
281 mm

Weight
9.6 kg

Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982

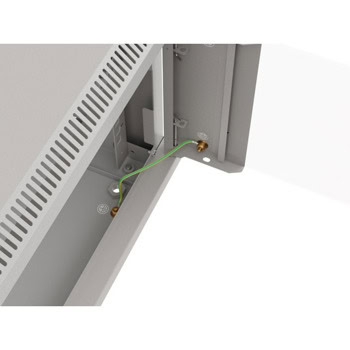

Grounding Details
Bottom panel, Front door
