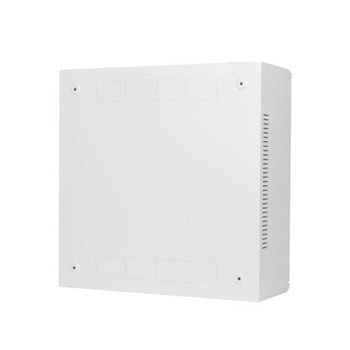

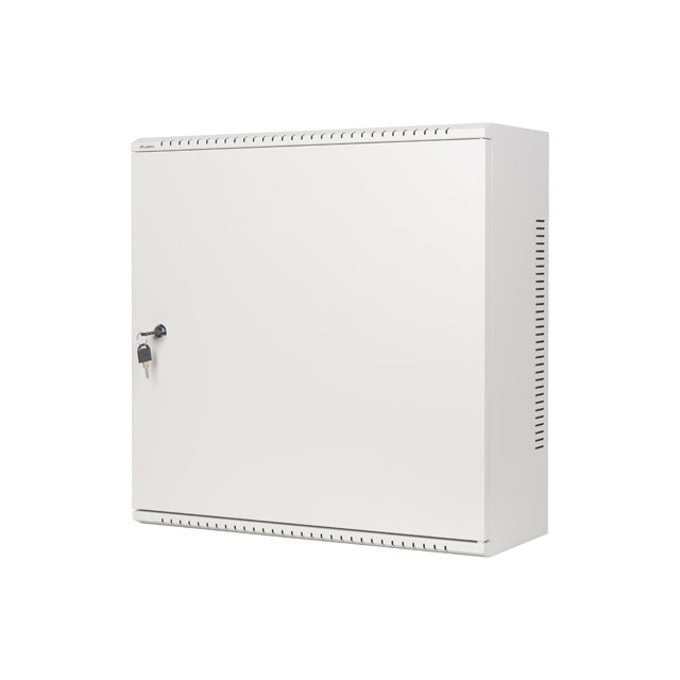

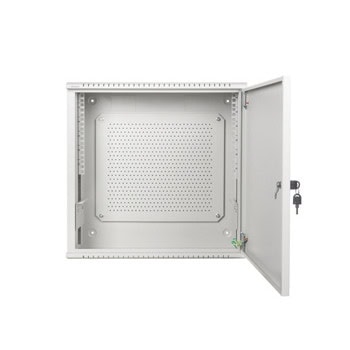

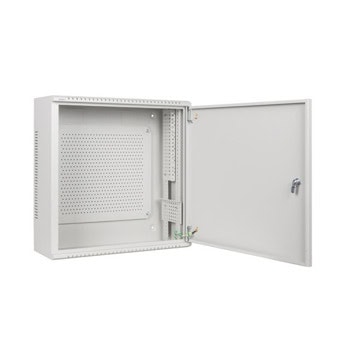

Комуникационен шкаф Lanberg WAF1-5203-06-00S, 19", 3U, 54 x 20 x 54 cm, товароносимост до 60кг, сив

Great possibilities and many applications:

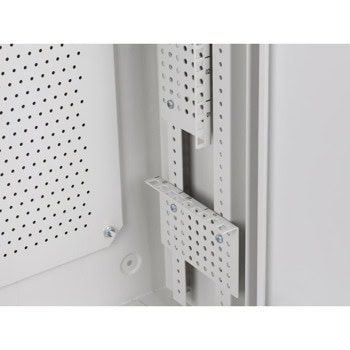

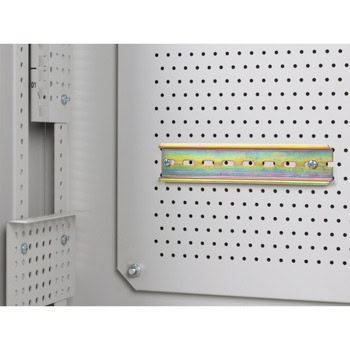

WAF1 cabinets provide security for equipment and convenience of use and configuration for professionals. They are equipped with two 6U high and 3U deep utility rails, allowing equipment to be mounted both vertically and horizontally. This gives the user complete freedom in the arrangement of IT equipment, customizing the cabinet and its equipment to their individual needs. This is an ideal solution for those who need greater flexibility in organizing their equipment.

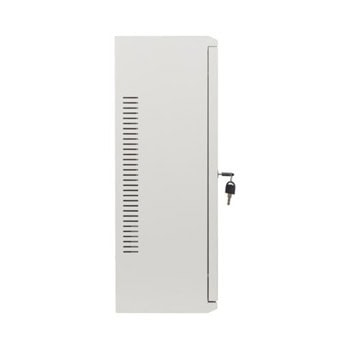

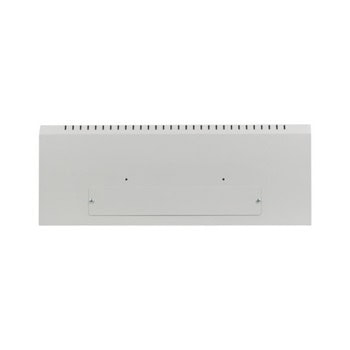

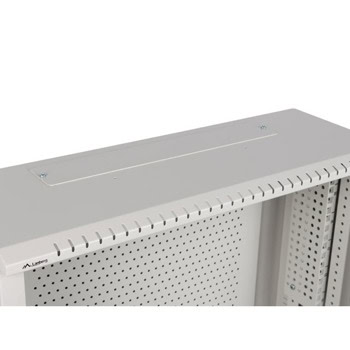

Ventilation holes in the WAF1 RACK cabinet:
This ready-to-use WAF1 cabinet is not only an ergonomic and aesthetically pleasing solution, but also provides adequate air circulation. The module's top and bottom panels, as well as its side walls, feature vents that help keep your IT equipment at the right temperature. This way you can be sure that sensitive equipment will not overheat and will work in perfect condition for years to come.


Specifications

Type of cabinet
Wall mount

ICT depth
3 U

Size
19"

ICT height
6 U

Assembly type
Assembled

Working depth
143 mm

Working height
500 mm

Front door type
Metal

Door type
Single-leaf

Maximum front door opening angle
220 °

Maximum static load
60 kg

Number of vertical rails
2

Number of horizontal rails
2

Thermostat
No

LCD panel
No

Colour
Gray

RAL color
RAL7035

Weatherproof rating
IP20

Front door thickness
1 mm

Upper & lower panel thickness
1 mm

Side panel thickness
1 mm

Mounting rails thickness
1.5 mm

Frame thickness
1.2 mm

Other elements sheet thickness
1 mm

Depth
200 mm

Width
540 mm

Height
540 mm

Weight
11 kg

Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982

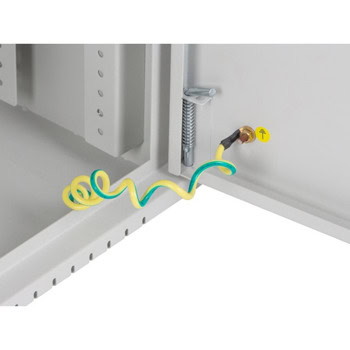

Grounding Details
Bottom panel, Front door
