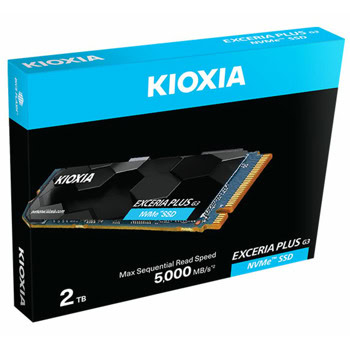

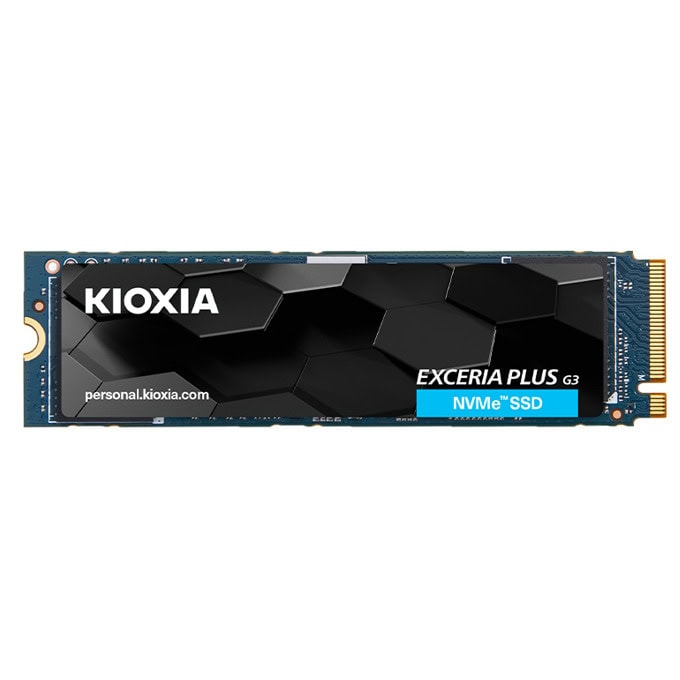

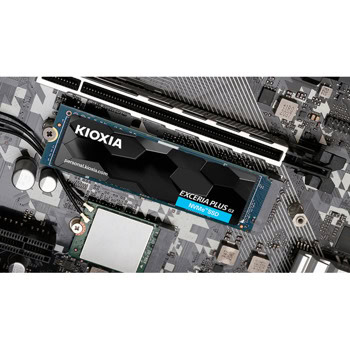

Памет SSD 2TB, Kioxia EXCERIA PLUS G3 (LSD10Z002TG8), NVMe, M.2 (2280), скорост на четене 5000 MB/s, скорост на запис 3900 MB/s

Features

• BiCS FLASH™
• NVMe™ 1.4 Technology
• M.2 2280 Form Factor

• PCIe® Gen4 x4
• SSD Utility Management Software


Welcome to the World of PCIe® 4.0

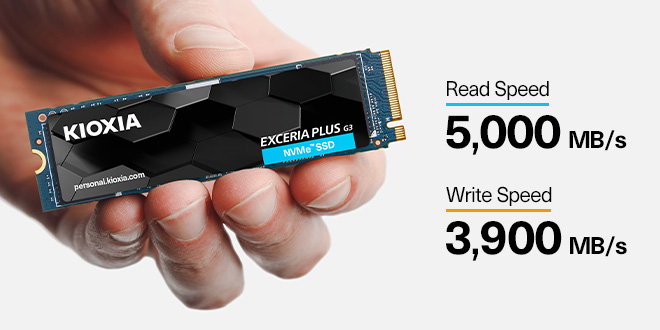

Designed to deliver an enhanced PC experience, the EXCERIA PLUS G3 SSD series is compatible with PCIe® 4.0 and delivers exceptional transfer speeds of up to 5,000 MB/s for sequential reads and 3,900 MB/s for sequential writes. Whether you are gaming or video editing, this new series will provide the performance needed.

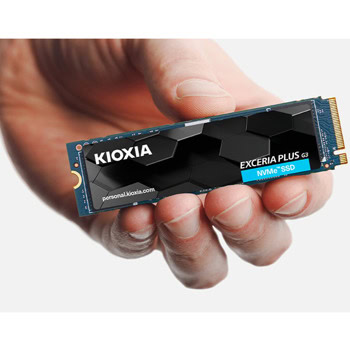

Storage Slimmed Down

Featuring a space-saving, single-sided M.2 2280 form factor, the EXCERIA PLUS G3 SSD series is compatible with a wider range of devices. These compact SSDs plug directly into the motherboard, removing cable clutter for a sleeker and an easy system upgrade.

Speed Ahead with PCIe® 4.0

The EXCERIA PLUS G3 SSD series delivers improved performance without cutting corners. Supporting PCIe® 4.0 and NVMe™ 1.4, these SSDs take mainstream to the next level and offer an upgraded computing experience for gamers and video editors.

Cutting-Edge 3D Flash Memory

Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.

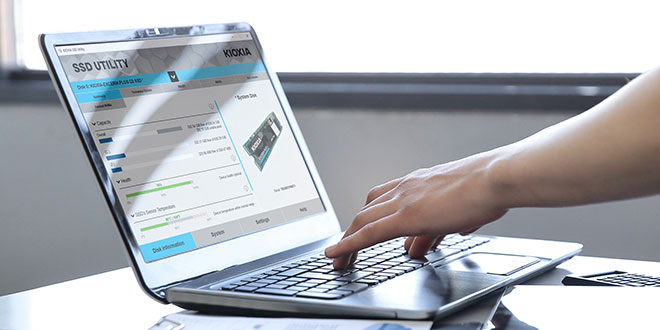

SSD Utility Management Software

The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.

Capacity / dimensions

• Capacity

  2TB

• Form Factor

  M.2 Type 2280-S4-M

• Interface

  PCI Express® Base Specification Revision 4.0 (PCIe®)

• Flash Memory type

  BiCS FLASH™ TLC

• Interface Maximum Speed

  64 GT/s (PCIe® Gen4x4)

• Dimension (Max: LxWxH)

  80.15 x 22.15 x 2.63 mm

• Interface Protocol

  NVM Express™ Base Specification 1.4

• Weight
  2TB: 7.4 g (typ.)

Performance

• Max Sequential Read Speed

  5,000 MB/s

• Max Sequential Write Speed

  3,900 MB/s

• Max Random Read Speed
  2TB: 680,000 IOPS

• Max Random Write Speed

  950,000 IOPS

• Endurance: TBW
  2TB: 1,200 TB

• MTTF

  1.5 million hours

Operating environment / protection performance

• Operating Temperature

  0 ℃ (Ta) to 85 ℃ (Tc)

• Storage Temperature

  -40 ℃ to 85 ℃

• Certification

  RoHS compliant*5

• Shock Resistance

  9.806 km/s2 {1,000 G} 0.5 ms half sine wave

• Vibration

  196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis

• Supply Voltage

  3.3 V ±5 %

• Power Consumption

  PS3: 50 mW (typ.)
  PS4: 5 mW (typ.)

• Power Consumption (Active)
  2TB: 5.3 W (typ.)

Compatibility

• Connector Type

  M.2 M key Socket

• Target Applications

  Client desktops and laptops

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
