Дънна платка за сървър Intel S5520HCT LGA1366 (до 130W), поддържа ECC DDR3, 1x PCI-E 3.0 x16, 2x LAN1000, Software RAID (0,1), SSI EEB 12" X 13"

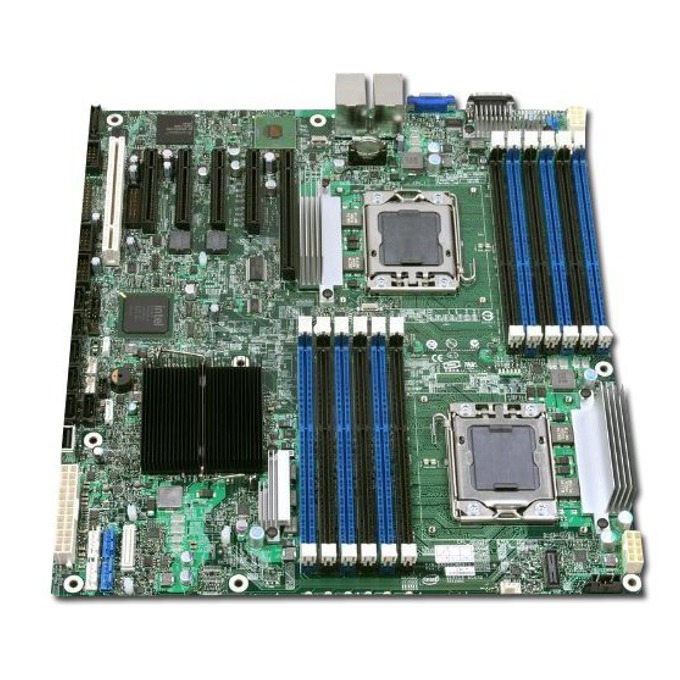

Intel Server Board S5520HCT

# of QPI Links 3
Compatible Product Series 39565, 47915
Board Form Factor SSI EEB (12" X 13")
Chassis Form Factor Pedestal
Socket LGA1366
Integrated BMC with IPMI IPMI 2.0
Embedded Options Available No
Max TDP 130 W
Board Chipset Intel® 5520 Chipset (Intel® 5520 I/O Hub)
Description A pedestal-optimized server board designed with world-class performance, scalable management, and maximum expandability for small and medium business applications


Memory Specifications

Max Memory Size (dependent on memory type) 192 GB
Memory Types DDR3 ECC UDIMM, RDIMM
# of Memory Channels 6
Max Memory Bandwidth 64 GB/s
# of DIMMs 12
ECC Memory Supported ‡ Yes

Graphics Specifications

Integrated Graphics ‡ Yes

Expansion Options

Max # of PCI Express Lanes 36
PCIe x8 Gen 2.x 3
PCIe x16 Gen 2.x 1
PCIe x8 Gen 1.x 1

I/O Specifications

USB Revision USB 2.0
# of USB Ports 8
Total # of SATA Ports 6
RAID Configuration Intel Embedded RAID (0,1); upgradeable to RAID5
# of Serial Ports 2
# of LAN Ports 2
Integrated LAN 2x 1GbE

Package Specifications

Max CPU Configuration 2
Low Halogen Options Available See MDDS

Advanced Technologies

Intel® Remote Management Module Support AXXRMM3
Intel® Node Manager Yes
TPM Version 1.2
Intel® Advanced Management Technology No
Intel® Server Customization Technology No
Intel® Build Assurance Technology No
Intel® Efficient Power Technology No
Intel® Quiet Thermal Technology No

Intel® Platform Protection Technology

Trusted Execution Technology ‡ Yes
