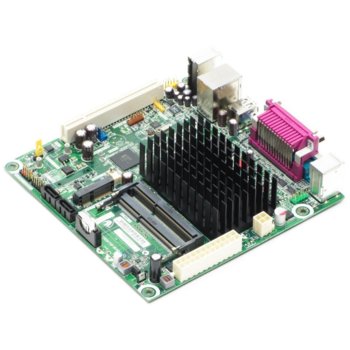

Дънна платка INTEL D525MW, NM10, двуядрен Intel® Atom™ D525 1.8GHz, DDR3, VGA, SB5.1, Lan1000, SATA, Mini-ITX, BULK

Intel® Desktop Board D525MW

PROCESSOR

Processor Support
- Intel Atom processor D525 (dual-core / 1.8 GHz / 512 KB x 2 L2 cache)

CHIPSET
- Intel NM10 Express Chipset

Graphics
- Intel Graphics Media Accelerator 3150

I/O Controller
- Two SATA Ports (fully shrouded)
- Two PS/2 ports
- One serial header
- One serial port
- One parallel port

USB 2.0
- Four external ports
- Two ports via headers
- One USB for flash card / Solid-State Drive

Audio Solution
- Six-channel Intel High Definition Audio (with multi-streaming)
- Front-panel mic / headphone header
- S/PDIF header

10/100/1000 Network Connection
- Realtek 10/100/1000 Mb/s Ethernet Controller

System BIOS
- 8 Mb Flash EEPROM with Intel Platform Innovation Framework with ERI Plug and Play, IDE drive auto-configure
- Advanced configuration and power interface V2.0b, DMI 2.0, multilingual support
- Serial Peripheral Interface (SPI) Flash

Intel Rapid BIOS Boot
- Optimized POST for fast access to PC from power-on

SYSTEM MEMORY

Memory Capacity
- Single-channel DDR3 with two connectors for 1066/800 MHz memory support (4 GB max)

Memory Types
- DDR3 1066/800 SDRAM memory support
- Non-ECC Memory

Memory Voltage
- 1.8 V

Wake-up from Network
- Wired for Management (WfM) 2.0 compatible
- Support for system wake-up using an add-in network interface card with remote wake-up capability

Expansion Capabilities
- One PCI connector
- One PCI Express Mini Card connector

JUMPERS AND FRONT-PANEL CONNECTORS

Jumpers
- Jumper: yellow
- Header: black

Front-Panel COnnectors
- Reset, HD LED, Power LEDs, power on/off, aux LED
- USB 2.0 headers
- Audio header

MECHANICAL

Board Style
- Mini-ITX / microATX-compatible

Board Size
- 6.7"" x 6.7"" (170mm x 170mm)

Baseboard Power Requirements
- ATX12V or SFX12V
