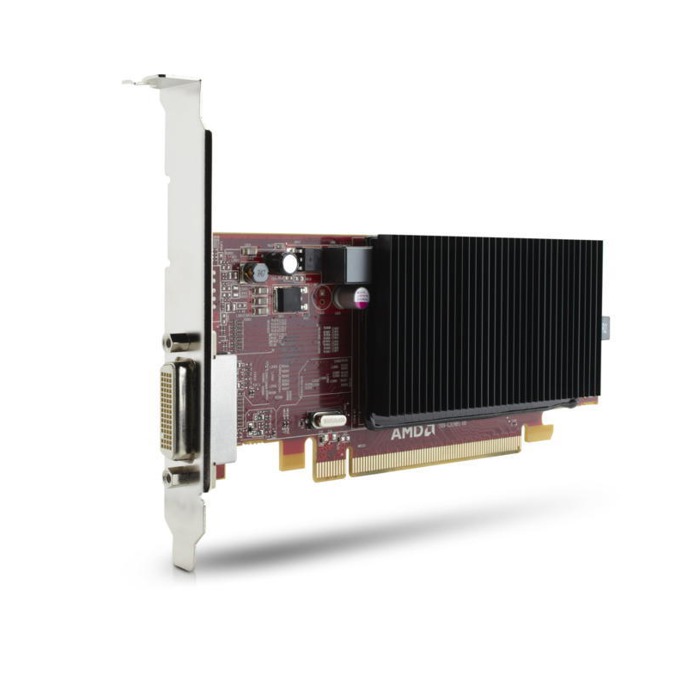

AMD FirePro 2270 512MB Graphics Card

Form Factor
Low Profile, Half Length, 2.3" x 6.6"

Graphics Controller
AMD FirePro 2270 GPU

Input/Output connectors
DMS-59 connector that supports breakout cables for dual VGA or dual DVI output.

Board display options
Supports two displays via included DMS-59 to dual VGA cable or 2 DVI monitors via optional DMS-59 to dual
DVI cable kit part number: DL139A.

Display Output
Board configuration

Specification

Graphics Chip
AMD FirePro 2270 GPU

Core clock
600 MHz

Memory clock
600 MHz

Frame buffer
512 MB DDR3, 64 bit wide

Bus type
PCI Express™ x16 Generation 2.0

Memory
512MB DDR3

Maximum vertical refresh rate
85 Hz

Display support
Integrated 400 MHz RAMDAC

RAMDAC
400 MHz DAC, 10-bit per channel

Display max resolution
Digital 1920x1200
Analog 2048x1536
