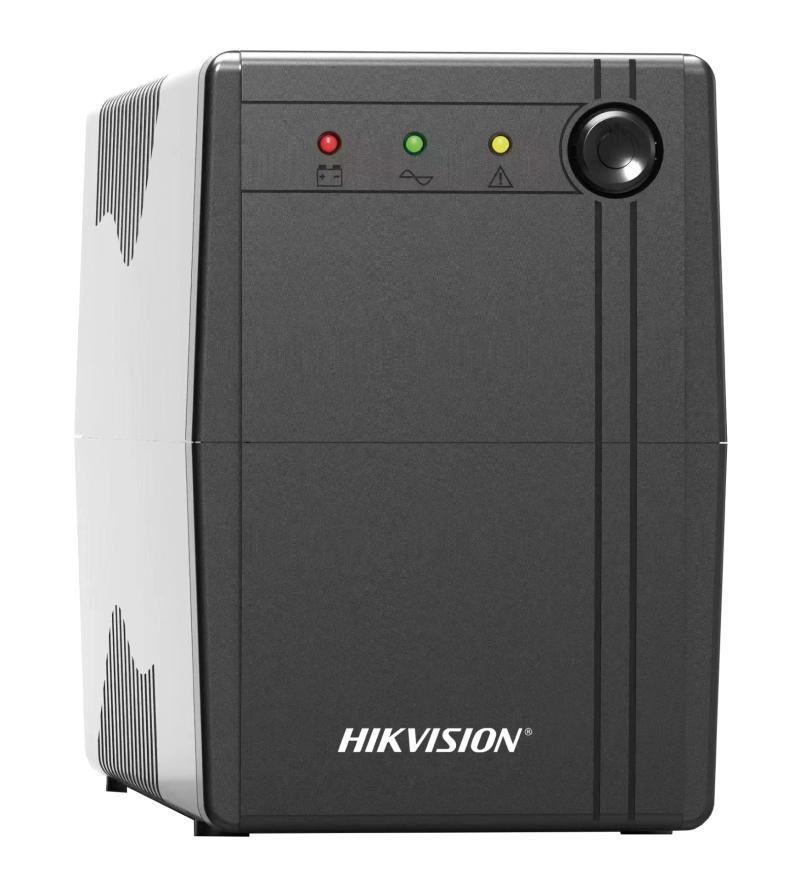

UPS Hikvision DS-UPS600, 600VA/360W, Line Interactive, Tower

Hikvision DS-UPS600

Oversea UPS

• Built-in AVR
• Super fast charging
• Wide input voltage range
• Overload protection
• Short circuit protection
• Surge protection

Specification:

Power

• UPS Capacity 600 VA / 360 W

Input

• Input Voltage Range 85 VAC to 150 VAC
• Input Frequency 50/60 Hz self-adaptive
• Plug Type Type B (NEMA 5-15)

Output

• Output Voltage Range110 VAC to 125 VAC
• Output Frequency50/60 Hz ± 0.5 Hz self-adaptive
• Transfer Time≤ 10 ms
• Waveform PWM
• Outlet Type Type B (NEMA 5-15)
• Outlet Number Battery outlet*4 & Bypass*2

Battery

• Battery Type12 V/7 Ah, lead-acid battery
• Recharge Time4-6 hours recover to 90% capacity

• Typical Backup Time

  Run time at 60w: 35 min

  Run time at 100w: 20 min

  Run time at 200w: 3 min

Interface

• Communicate Ports No

Protection

• Full Protection Surge protection,Overload protection,Discharge protection,Overcharge protection

Indicator

• Display

  LED indicator

  Working Mode (AC Mode): Solid green

  Charging Mode (DC Mode): Solid red

  Overloading Mode: Flashing yellow

• Alarm

  Charging Mode (DC mode): Sounding every 8 seconds

  Low Battery: Sounding every second

  Overloading Mode: Sounding every 0.5 seconds

  Fault: Continuously sounding

General

• Operating Temperature0 °C to 40 °C (32 °F to 104 °F）
• Operating Humidity30% to 90% (non-condensing)
• Dimension274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")
• Weigh tApprox. 4.2 kg (9.26 lb)
