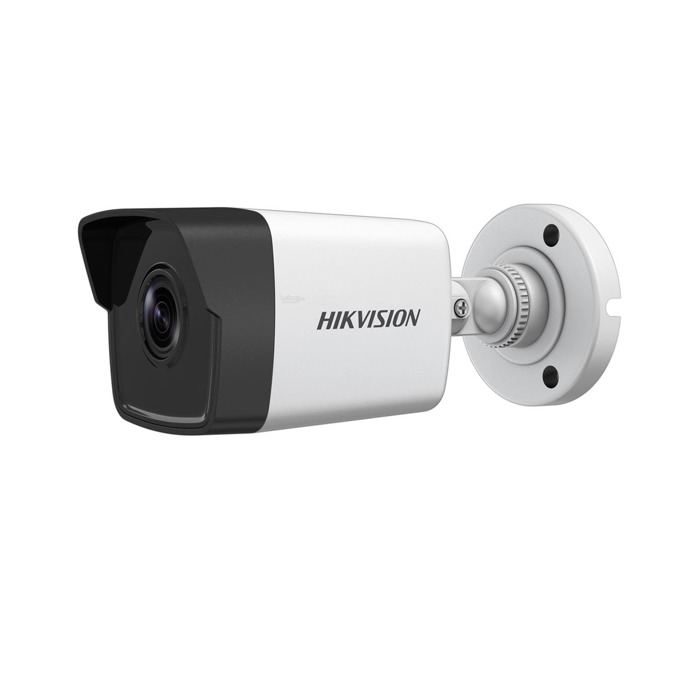

IP камера Hikvision DS-2CD1023G0-I, насочена "bullet" камера, 2MP (1920x1080@25fps), 2.8 mm/4 mm/6 mm обектив, H.264+, H.264, MJPEG, IR осветление (до 30m), външна IP67, PoE, RJ-45

2.0 MP CMOS Network Bullet Camera

Key Features
 - 1/2.8" progressive scan CMOS
 - Up to 2.0 megapixel
 - 2.8 mm/4 mm/6 mm fixed focal lens
 - Up to 30 m IR range
 - Dual stream
 - Digital WDR (Wide Dynamic Range)
 - 3D DNR (Digital Noise Reduction)
 - PoE (Power over Ethernet)
 - IP67
 - Mobile monitoring via Hik-Connect or iVMS-4500



Camera

Image Sensor: 1/2.8" progressive scan CMOS
Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Speed: 1/3 s to 1/100, 000 s, support slow shutter
Lens: 2.8 mm @F2.0, horizontal field of view 105.8°, 4 mm @F2.2, horizontal field of view 83.6°, 6 mm @F2.0, horizontal field of view 55°
Lens Mount: M12
Day &Night: IR cut filter with auto switch
3-Axis Adjustment (Bracket): Pan: 0° to 360°, tilt: -90° to 90°, rotation: 0° to 360°
DNR (Digital Noise Reduction):  3D DNR
WDR (Wide Dynamic Range):  Digital WDR

Compression Standard

Video Compression: Main stream: H.264+/H.264, Sub stream: H.264/MJPEG
H.264 Type: Baseline profile/Main profile
Video Bit Rate: 32 Kbps to 8 Mbps


Max. Resolution: 1920 × 1080
Main Stream
Max. Frame Rate:
50Hz: 25fps @(1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720)

Sub-stream:
Max. Frame Rate
50Hz: 25fps @(704 × 576, 640 × 480, 352 × 288, 320 × 240)
60Hz: 30fps @(704 × 480, 640 × 480, 352 × 240, 320 × 240)

Image Settings: Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch: Support auto, scheduled
Others: Mirror, BLC (area configurable), region of interest (support 1 fixed region)

Network

Network Storage: NAS (NFS, SMB/CIFS)
Detections: Motion Detection
Alarms: Video tampering, network disconnected, IP address conflicted
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,
802.1X, QoS, IPv6, Bonjour
Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Interface

Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

General

Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af)
Power Consumption Max. 5 W/6.5 W (PoE)
Ingress Protection IP67
IR Range Up to 30 m
Dimensions 69.1 mm × 66 mm × 172.7 mm ( 2.7" × 2.6" × 6.8")
Weight 500 g (1.1 lb.)
