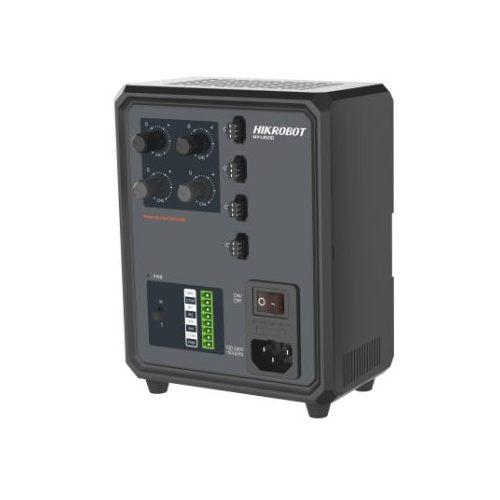

Name: HIKROBOT MV-LE100-120W24-4D :: Light контролер, цифров, constant current, Input: 220VAC, Output: 200W/48VDC, канали: 2, RJ45, DB9F
Brand: HIKROBOT
Price: 254.40 EUR
Availability: InStock

Описание

Използва управление с постоянно напрежение и поддържа безстепенно регулиране на яркостта
Вграден потенциометър за управление от контролния панел, Plug & Play
Осигурява многоканални оптоизолирани входове
Поддържа монтаж чрез плъзгаща шина или винтов отвор
Защита от претоварване и късо съединение

Model	Product Model	MV-LE100-120W24-4D
Model	Type	Analog Light Controller，4 channel，120W/24V
Performance	Drive mode	Analog, constant voltage
	Lighting mode	Continued, trigger
	Channel	4-channel
	Dimming mode	Control panel (knob)
	Lighting response time	< 100 μs
	Trigger mode	External trigger
	Applicable product	Ring lighting, bar lighting, flat lighting, coaxial lighting, etc.
Electrical feature	Input voltage	100 VAC to 240 VAC, 50 Hz/60 Hz
	Input current	2.1 A (115 VAC), 1.2 A (230 VAC)
	Output voltage	24 VDC
	Output current	Max. 5 A
	Output power	Max. 120 W
	Output current for each channel	Max. 3 A
	Trigger in	High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC
Mechanical	Power supply interface	C13 220 VAC interface
	Digital I/O	Opto-isolated input × 4
	Lighting output connector	SMR-03V-BC
	Dimension	130 mm × 92.9 mm × 169.5 mm (5.1" × 3.7" × 6.7")
	Shell material	Plastic
	Weight	Approx. 795 g (1.8 lb.)
	Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
	Humidity	20% to 85% RH, non-condensing
	Ingress protection	IP30
	Cooling mode	Fan cooling
General	Certification	CE, KC
