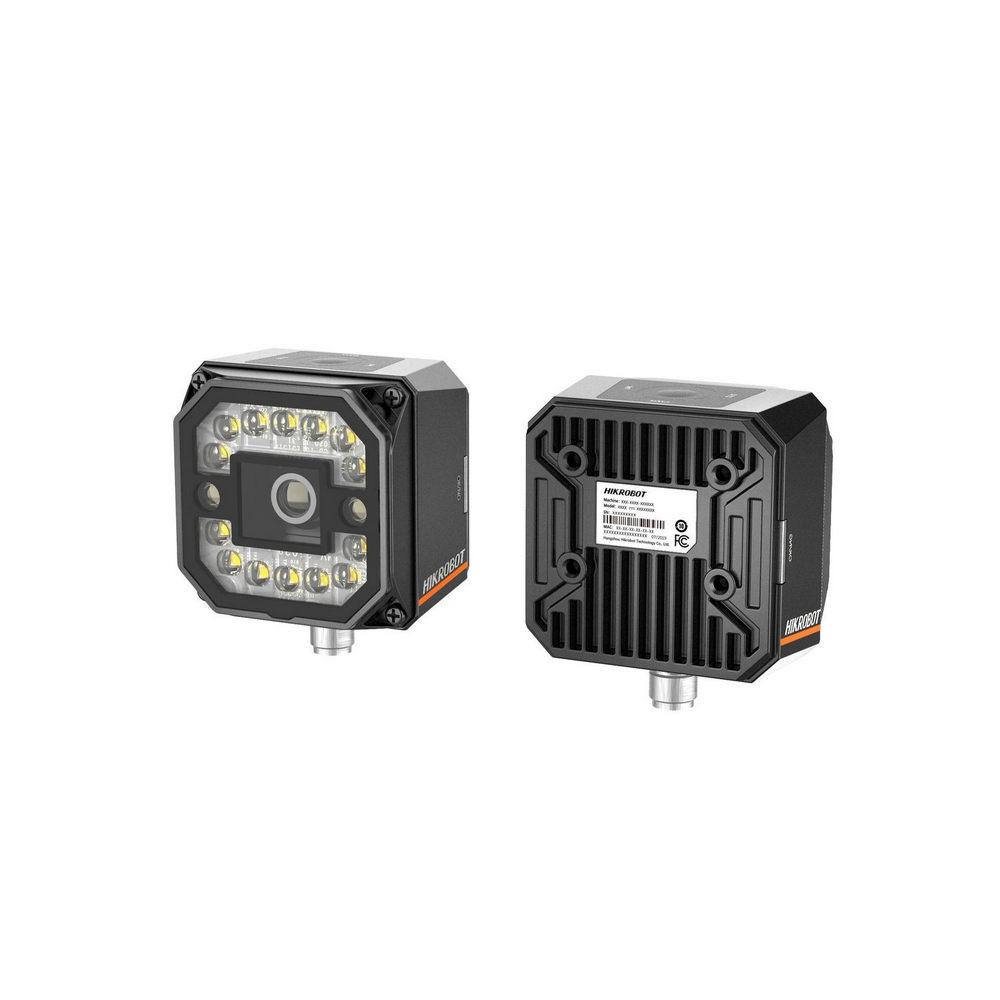

Name: HIKROBOT MV-ID3050PM-08M-WBN :: Smart Code Reader, ID3000 Series, 30 fps, 4.2MPix (2368×1760), 60 codes/sec, 8мм, Fast Ethernet, бял цвят
Brand: HIKROBOT
Price: 1851.60 EUR
Availability: InStock

Описание

Използва вграден deep-learning алгоритъм за разчитане на кодове с висока ефективност
Използва global-shutter CMOS сензор за висококачествени изображения
Използва множество IO интерфейси за входни и изходни сигнали
Използва 14 LED лампи за поляризиран и неполяризиран режим
Използва 2 LED лампи за прицелване за лесен монтаж и насочване към кодове
Индикатори на устройството показват състоянието му и резултатите от четене на кодове

Model	Product Model	MV-ID3050PM-08M-WBN
Model	Type	ID3000 Series 4.2MP，8mm，white lighting industrial Code Reader
Performance	Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 and Industrial 252-dimensional codes: QR Code, Data MatrixStack codes: PDF 417
	Max. frame rate	30 fps
	Max. reading speed	60 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	3.2 µm × 3.2 µm
	Sensor size	1/1.7"
	Resolution	2368 × 1760
	Exposure time	60 μs to 1 sec
	Gain	0 dB to 18 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP
Electrical feature	Data interface	Fast Ethernet
	Digital I/O	17-pin M12 interface provides power supply and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. Device trigger via pressing button on top supported.
	Power supply	24 VDC
	Max. power consumption	10.6 W@24 VDC (light source enabled)
Mechanical	Focal length	8 mm (0.3")
	Lens mount	M12-mount, mechanical autofocus supported.
	Lens cap	Half polarized front cover by default. Polarized and transparent ones are optional.
	Light source	White light by default. Red/blue/IR light is optional.
	Indicator	Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
	Dimension	65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
	Weight	Approx. 280 g (0.6 lb.)
	Ingress protection	IP67 (under proper installation of waterproof lens cap)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	IDMVS
General	Certification	CE, FCC, RoHS, KC
