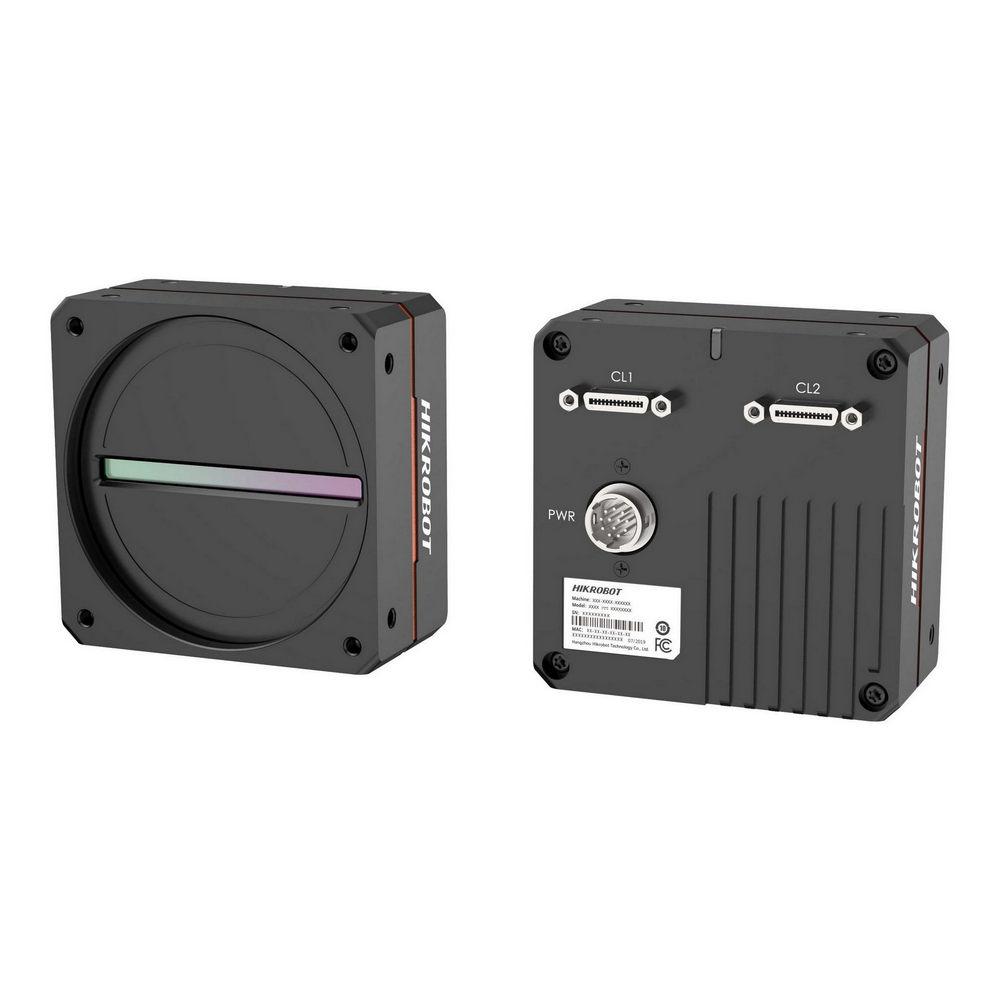

Name: HIKROBOT MV-CL161-41CM :: Machine-Vision камера, Line Scan, CL Series, 16384×1, 3.5 μm, Camera Link, M72*0.75, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Интегрира множество ISP технологии и поддържа ръчно настройване на гама корекция, FFC корекция, LUT, ниво на черното и др.
Поддържа множество режими на експозиция и заснемане
Конфигурируем двупосочен I/O хардуерен дизайн
Компактен дизайн и гъвкава инсталация
Съвместимост с Camera Link Protocol и GenlCam Standard

Model	Product Model	MV-CL161-41CM
Model	Type	16k Camera Link Line Scan Cameras，Mono
Performance	Sensor type	CMOS
	Pixel size	3.5 μm
	Resolution	16384 × 1
	Image mode	1-line
	Max. line rate	10 kHz (Base), 20 kHz (Medium), 40 kHz (Full), and 50 kHz (80-bit)
	Configuration mode	Base, Medium, Full, 80-bit
	Tap geometry	1 × 2, 1 × 4, 1 × 8, 1 × 10
	Tap number	2 Taps, 4 Taps, 8 Taps, 10 Taps
	Pixel clock	40 MHz, 66 MHz, 80 MHz, 85 MHz
	Dynamic range	64.7 dB
	SNR	44.3 dB
	Gain	Supports 1 ×, 2 ×, 4 ×, 8 ×
	Exposure time	2 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical feature	Data interface	Camera Link
	Digital I/O	12-pin P10 connector provides power and I/O: configurable input and output × 4 (Line 0/1/3/4), and support single-end/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 7.2 W@12 VDC
Mechanical	Lens mount	M72*0.75, optical back focal length: 12 mm (0.5"), applicable to F-mount via lens adapter
	Dimension	76 mm × 76 mm × 42.1 mm (3.0" × 3.0" × 1.7")
	Weight	Approx. 320 g (0.7 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 90% RH, non-condensing
General	Client software	MVS and frame grabber software meeting with Camera Link Protocol
	Operating system	32/64-bit Windows 7/10
	Compatibility	Camera Link V1.2, GenICam
	Certification	CE, FCC, RoHS, KC
