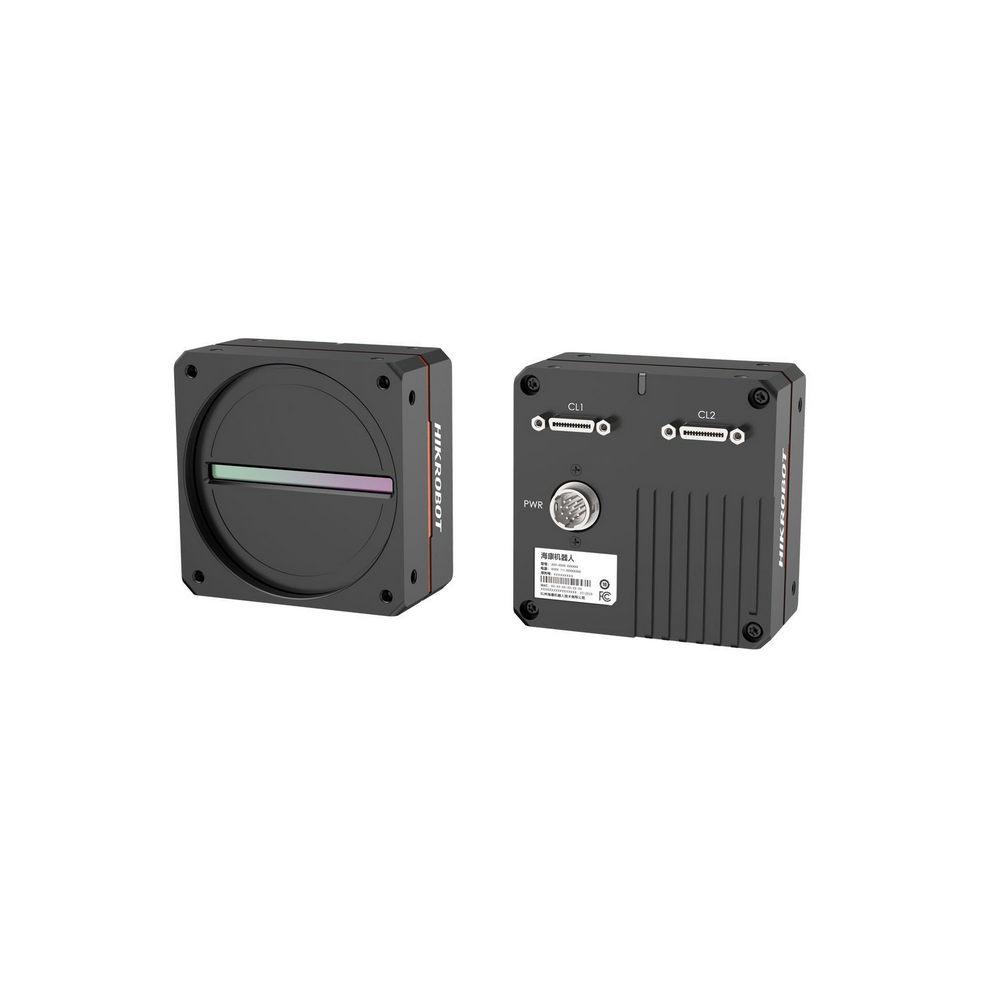

Name: HIKROBOT MV-CL082-92CM :: Machine-Vision камера, Line Scan, CL Series, 7 μm, 8192×2, Camera Link, M72*0.75, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа множество режими на експозиция и заснемане на изображения
Поддържа множество ISP технологии и ръчна настройка за гама корекция, FFC корекция, LUT, ниво на черното и др.
Поддържа ROI за увеличаване на линейната скорост (макс. 200 kHz в 1-линеен режим)
Поддържа двупосочно I/O окабеляване за гъвкави настройки на входа/изхода
Компактен дизайн и гъвкав монтаж
Съвместим с протокола Camera Link и стандарта GenlCam

Model	Product Model	MV-CL082-92CM
Model	Type	8k pixels Linescan Cameras.Camera Link,Mono
Performance	Sensor type	CMOS
	Pixel size	7 μm
	Resolution	8192 × 2
	Image mode	Supports 1-line, 2-TDI
	Max. line rate	20 kHz (Base), 40 kHz (Medium), 80 kHz (Full), 100 kHz (80-bit)
	Configuration mode	Base, Medium, Full, 80-bit
	Tap geometry	1 × 2, 1 × 4, 1 × 8, 1 × 10
	Tap number	2 Taps, 4 Taps, 8 Taps, 10 Taps
	Pixel clock	40 MHz, 66 MHz, 80 MHz, 85 MHz
	Dynamic range	63.4 dB
	SNR	40.8 dB
	Gain	Supports 1.0 ×
	Exposure time	3 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical feature	Data interface	Camera Link
	Digital I/O	12-pin P10 connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 9.8 W@12 VDC
Mechanical	Lens mount	M72*0.75, optical back focal length: 12 mm (0.5"), applicable to F-mount via lens adapter
	Dimension	76 mm × 76 mm × 42.1 mm (3.0" × 3.0" × 1.7")
	Weight	Approx. 320 g (0.7 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -20 °C to 55 °C (-4 °F to 131 °F); Storage temperature : -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 90% RH, non-condensing
General	Client software	MVS and frame grabber software meeting with Camera Link Protocol
	Operating system	32/64-bit Windows 7/10
	Compatibility	Camera Link V1.2, GenICam
	Certification	CE, RoHS2.0, KC
