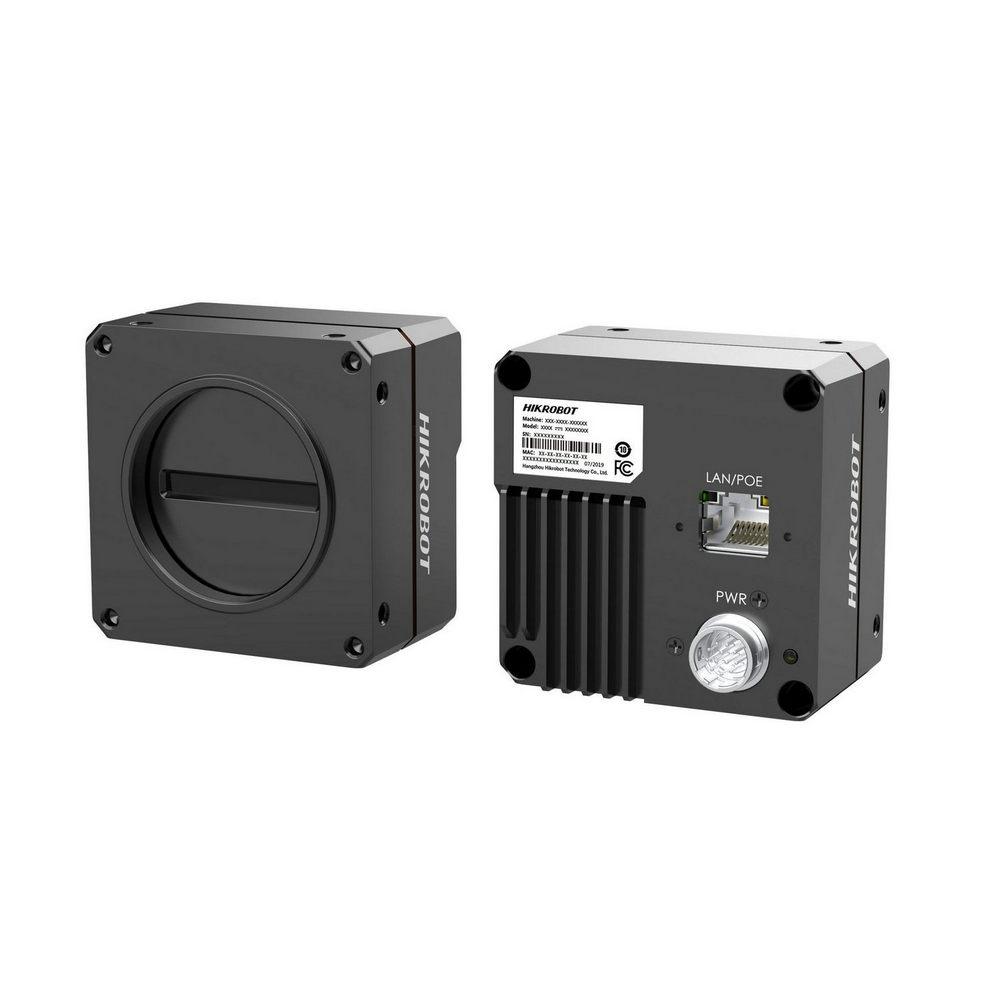

Name: HIKROBOT MV-CL042-91GM :: Machine-Vision камера, Line Scan, CL Series, 4096×2, 7 μm, Gigabit, M42 *1.0, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Подържа image high-bandwidth mode, trigger-width exposure
Поддържа ръчна настройка за гама корекция, PRNU корекция, LUT, отместване на нивото на черното и др.
Двупосочна I/O връзка, гъвкава конфигурация за вход/изход
Компактен дизайн и гъвкав монтаж
Съвместим с GigE Vision V2.0 и GenICam Standard

Model	Product Model	MV-CL042-91GM
Model	Type	4K GigE Line Scan Cameras，Mono
Performance	Sensor type	CMOS
	Pixel size	7 μm
	Resolution	4096 × 2
	Image mode	Supports 1 Line/2 TDI
	Max. line rate	Standard mode: 28 kHz @Mono 8, 14 kHz @Mono 10/12High-bandwidth mode: 80 kHz @Mono 8/10/12
	Dynamic range	65.6 dB
	SNR	40 dB
	Gain	Supports 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 ×
	Exposure time	5 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode, and supports trigger-width exposure
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical feature	Data interface	GigE
	Digital I/O	12-pin Hirose connector provides power and I/O: configurable output and input × 4 (Line 0/1/3/4), supports single-end/differential
	Power supply	12 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 5.8 W@12 VDC
Mechanical	Lens mount	M42 *1.0, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and others via lens adapter
	Dimension	62 mm × 62 mm × 41 mm (2.4" × 2.4" × 1.6")
	Weight	Approx. 280 g (0.6 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -20 °C to 55 °C (32 °F to 131 °F); Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 90% RH, non-condensing
General	Client software	MVS or the third-party software meeting with GigE Vision protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
