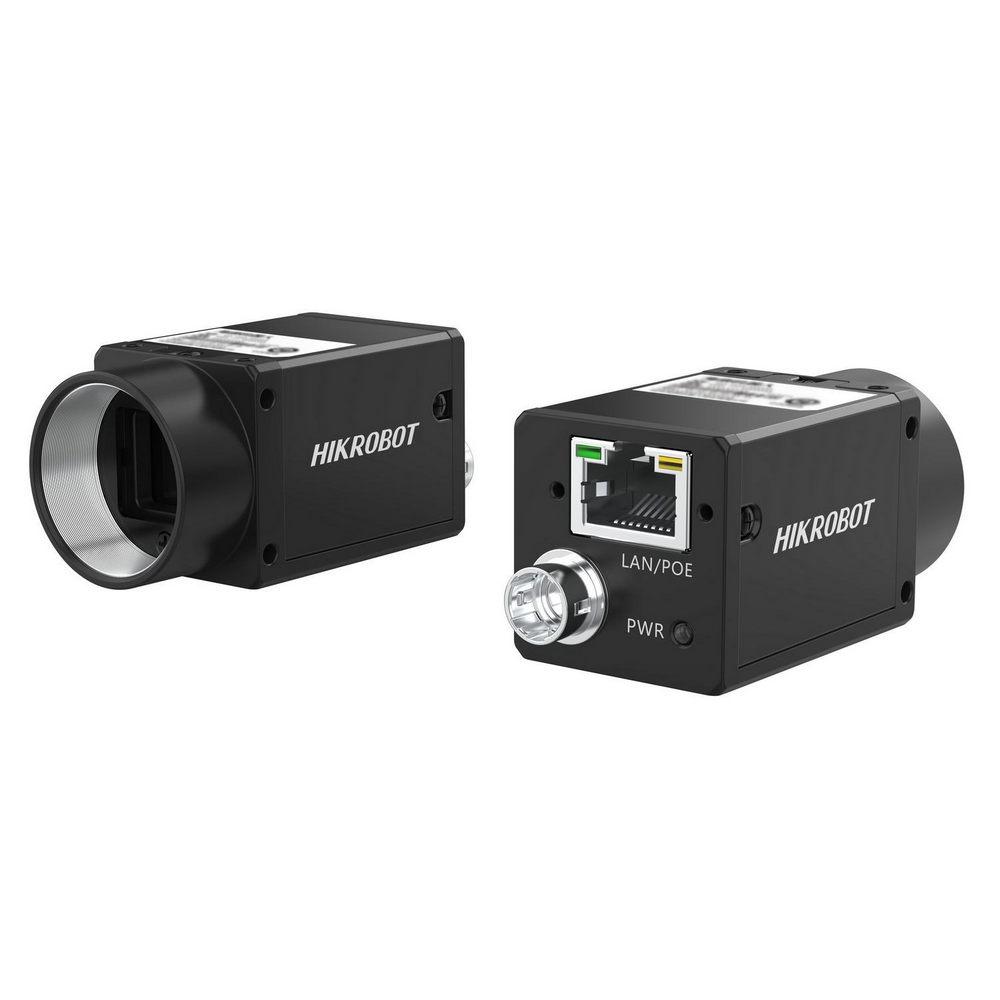

Name: HIKROBOT MV-CI013-GS-NN :: Machine-Vision камера, Infrared, CI Series, 5 μm, 91 fps @ 1280×1024 Mono 8, C-Mount, Gigabit
Brand: HIKROBOT
Availability: OutOfStock

Описание

InGaAs сензор, поддържа спектрално изобразяване от 0.4 μm до 1.7 μm
Множество функции на ISP, като цифрово намаляване на шума, съотношение на контраста и др.
Компактен дизайн за монтаж в малки пространства
GigE интерфейс и максимално разстояние на предаване от 100 метра
Съвместимост с GigE Vision V2.0 протокол, GenlCam стандарт и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CI013-GS-NN
Model	Type	1.3MP SWIR Camera, IMX990, GigE, fanless
Performance	Sensor type	InGaAs
	Sensor model	IMX990
	Pixel size	5 μm × 5 μm
	Sensor size	1/2"
	Resolution	1280 × 1024
	Max. frame rate	91 fps @1280 × 1024 Mono 8
	Dynamic range	56 dB
	SNR	52.2 dB
	Gain	0 dB to 18 dB
	Exposure time	UltraShort exposure mode: 3 μs to 7 μsStandard exposure mode: 8 μs to 0.1 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	GigE
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2)
	Power supply	9 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 2.7 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 100 g (0.22 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -30 °C to 50 °C (-22 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
