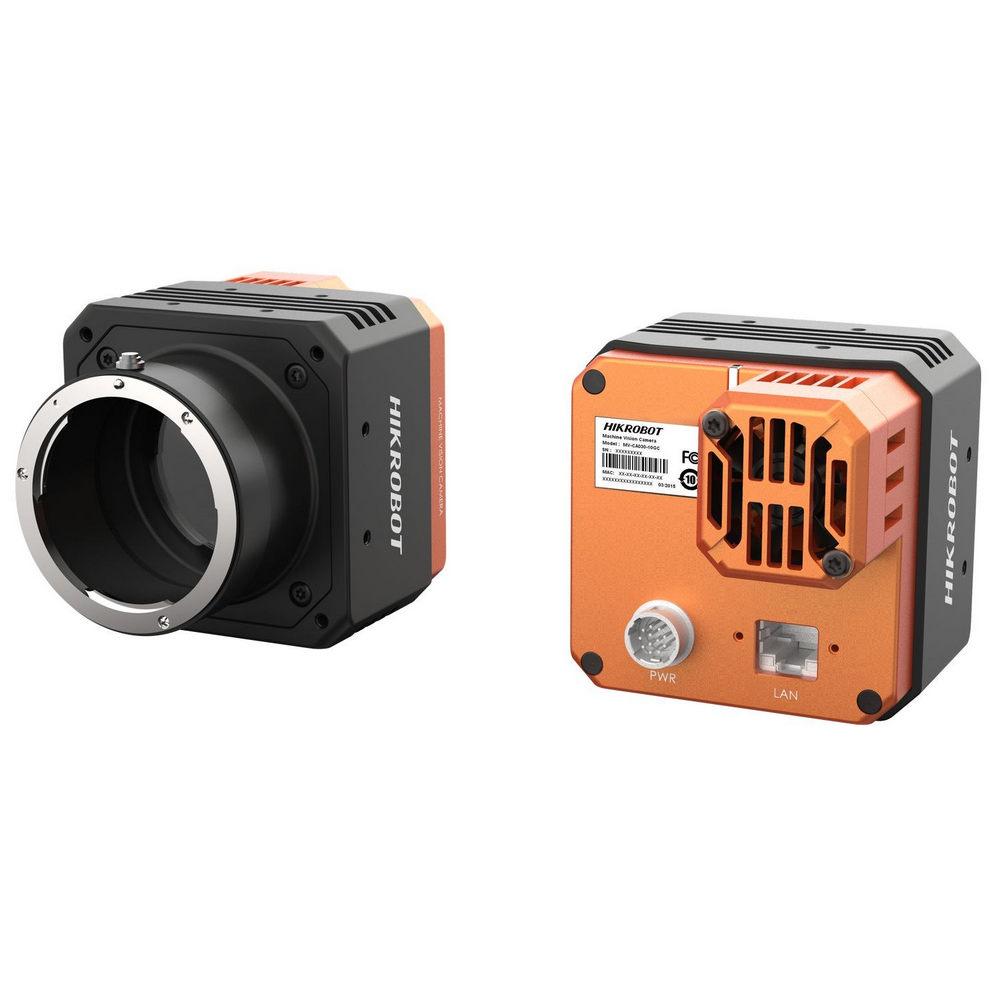

Name: HIKROBOT MV-CH310-10GM-F-NF :: Machine-Vision камера, Area Scan, CH Series, 3.45 μm, 3.9 fps @ 6464×4852 Mono 8, 46.5мм (1.8 ), Gigabit, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 6464 × 4852, pixel size 3.45 μm × 3.45 μm
Поддържа автоматично и ръчно регулиране на усилване, контрол на експозицията, LUT, корекция на гама и др.
GigE интерфейс, осигуряващ максимално разстояние на предаване от 100 метра без реле
Компактен дизайн с монтажни отвори на панелите за гъвкав монтаж

Model	Product Model	MV-CH310-10GM-F-NF
Model	Type	31MP Area Scan Camera, GigE, IMX342, Mono, F-mount, with fan
Performance	Sensor type	CMOS, global shutter
	Sensor model	IMX342
	Pixel size	3.45 µm × 3.45 µm
	Sensor size	22.3 mm × 16.7 mm
	Resolution	6464 × 4852
	Max. frame rate	3.9 fps @6464 × 4852 Mono 8
	Dynamic range	73 dB
	SNR	40 dB
	Gain	0 dB to 24 dB
	Exposure time	UltraShort exposure mode: 3 μs to 33 μsStandard exposure mode: 36 μs to 2 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	GigE
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
	Power supply	9 VDC to 24 VDC
	Power consumption	Typ. 9 W@12 VDC
Mechanical	Lens mount	Flange focal length 46.5 mm (1.8")
	Dimension	74 mm × 74 mm × 80.1 mm (2.9" × 2.9" × 3.2")
	Weight	Approx. 600 g (1.3 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux, and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, RoHS, KC
