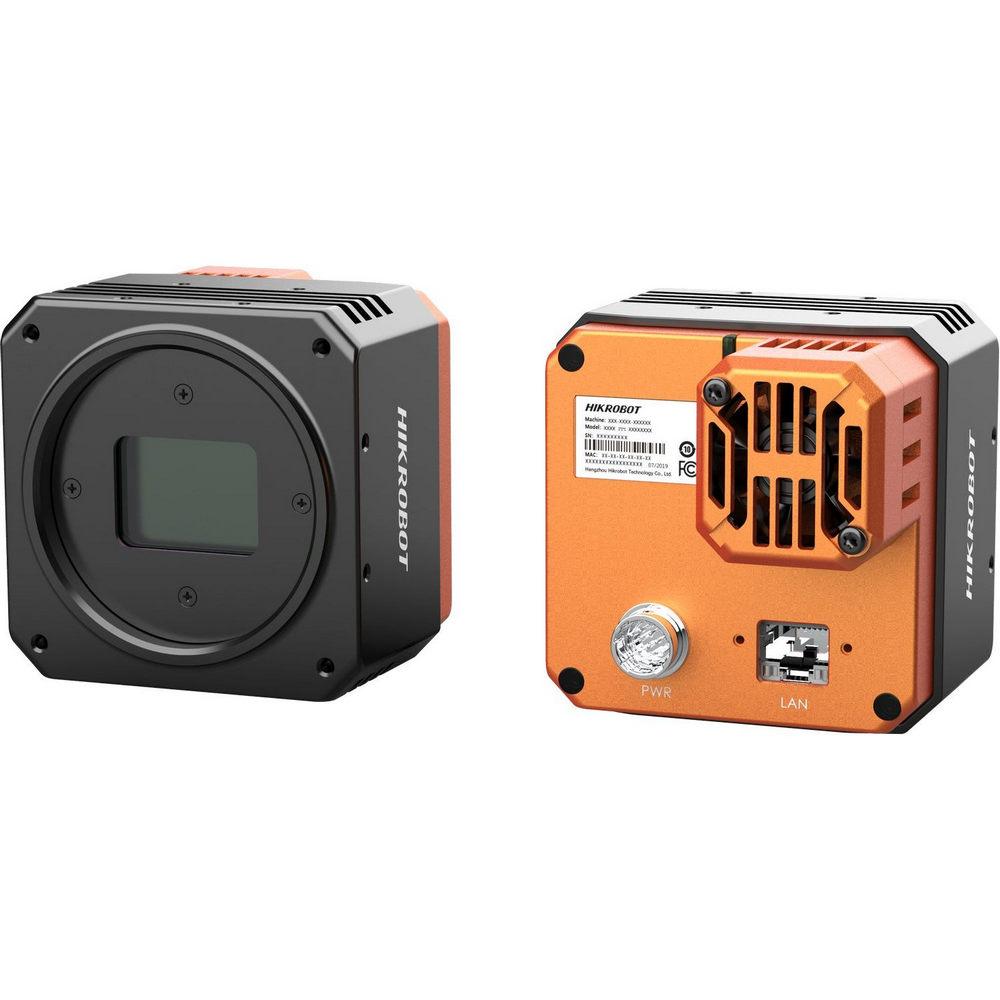

Name: HIKROBOT MV-CH250-90TM-M58S-NF :: Machine-Vision камера, Area Scan, CH Series, 10 Gigabit, 11.48мм (0.5 ), 2.5 μm, 41.6 fps @ 5120×5120 Mono 8, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 5120 × 5120, pixel size 2.5 μm × 2.5 μm
10 GigE интерфейс, осигуряващ максимално разстояние на предаване от 100 метра
Поддържа корекция за време на експозиция, усилване, таблица за търсене (LUT), гама корекция и др.
Монтажни отвори на панелите за гъвкав монтаж
Съвместим с GigE Vision Protocol V2.0, GenICam Standard и софтуер на трети страни, базиран на протокола/стандарта

Model	Product Model	MV-CH250-90TM-M58S-NF
Model	Type	25MP Area Scan Camera, 10GigE, GMAX0505, Mono, M58-mount, with fan
Performance	Sensor type	CMOS, global shutter
	Sensor model	GMAX0505
	Pixel size	2.5 µm × 2.5 µm
	Sensor size	1.1"
	Resolution	5120 × 5120
	Max. frame rate	41.6 fps @5120 × 5120 Mono 8
	Dynamic range	63 dB
	SNR	36 dB
	Gain	2.0 × to 5.0 ×
	Exposure time	UltraShort exposure mode: 3 μs to 8 μsStandard exposure mode: 9 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	10GigE
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
	Power supply	9 VDC to 24 VDC
	Power consumption	Typ. 9.7 W@12 VDC
Mechanical	Lens mount	Flange focal length 11.48 mm (0.5")
	Dimension	74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1")
	Weight	Approx. 550 g (1.2 lb.)
	Ingress protection	IP40 ( under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 64-bit Windows 11
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, RoHS, KC
