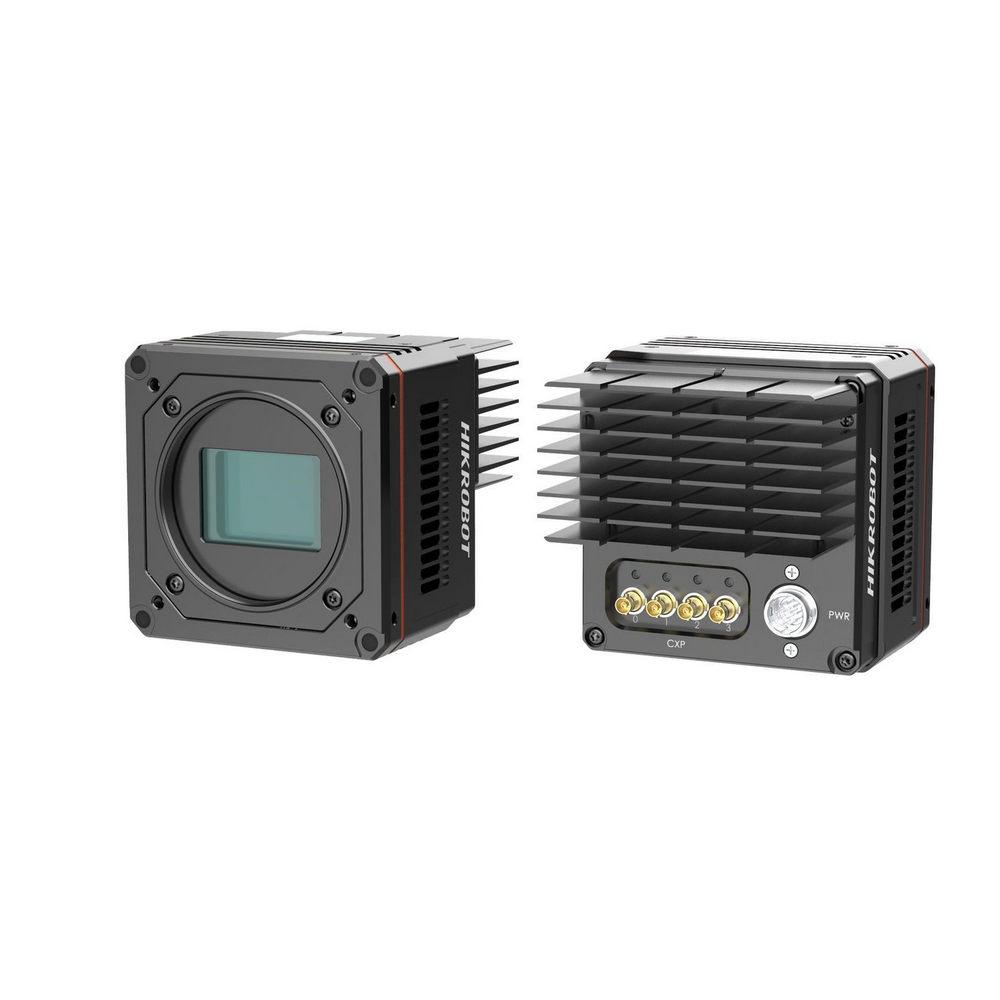

Name: HIKROBOT MV-CH210-90YM-M58S-NN :: Machine-Vision камера, Area Scan, CH Series, 222 fps @ 5120×4096 Mono 8, 4.5 μm, CoaXPress, M58*0.75, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 5120 × 4096, pixel size 4.5 µm × 4.5 µm
Използва global shutter CMOS сензор, осигуряващ високо съотношение сигнал/шум, широк динамичен диапазон и висококачествени изображения
Поддържа LSC Sequencer Polling
Ниска консумация, без вентилатори
CXP-12 интерфейс за предаване на данни
Съвместимост с CoaXPress Protocol и GenlCam Standard

Model	Product Model	MV-CH210-90YM-M58S-NN
Model	Type	21MP Area Scan Camera, Gsprint4521, CXP-12, M58-mount, Fanless, Mono
Performance	Sensor type	CMOS, global shutter
	Sensor model	Gsprint
	Pixel size	4.5 µm × 4.5 µm
	Sensor size	23.04 mm × 18.43 mm
	Resolution	5120 × 4096
	Max. frame rate	222 fps @5120 × 4096 Mono 8
	Dynamic range	65 dB
	SNR	43 dB
	Gain	Supports 1.0 ×, 2.0 ×, 4.0 ×
	Exposure time	4 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	CoaXPress
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
	Power supply	12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP
	Power consumption	Typ. 18 W@24 VDC
Mechanical	Lens mount	M58*0.75, optical back focal length 11.48 mm (0.5")
	Dimension	84 mm × 84 mm × 62.5 mm (3.3" × 3.3" × 2.5")
	Weight	Approx. 650 g (1.4 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or frame grabber software meeting with CoaXPress Protocol
	Operating system	32/64-bit Windows 7/10
	Compatibility	CoaXPress, GenlCam
	Certification	CE, RoHS, KC
