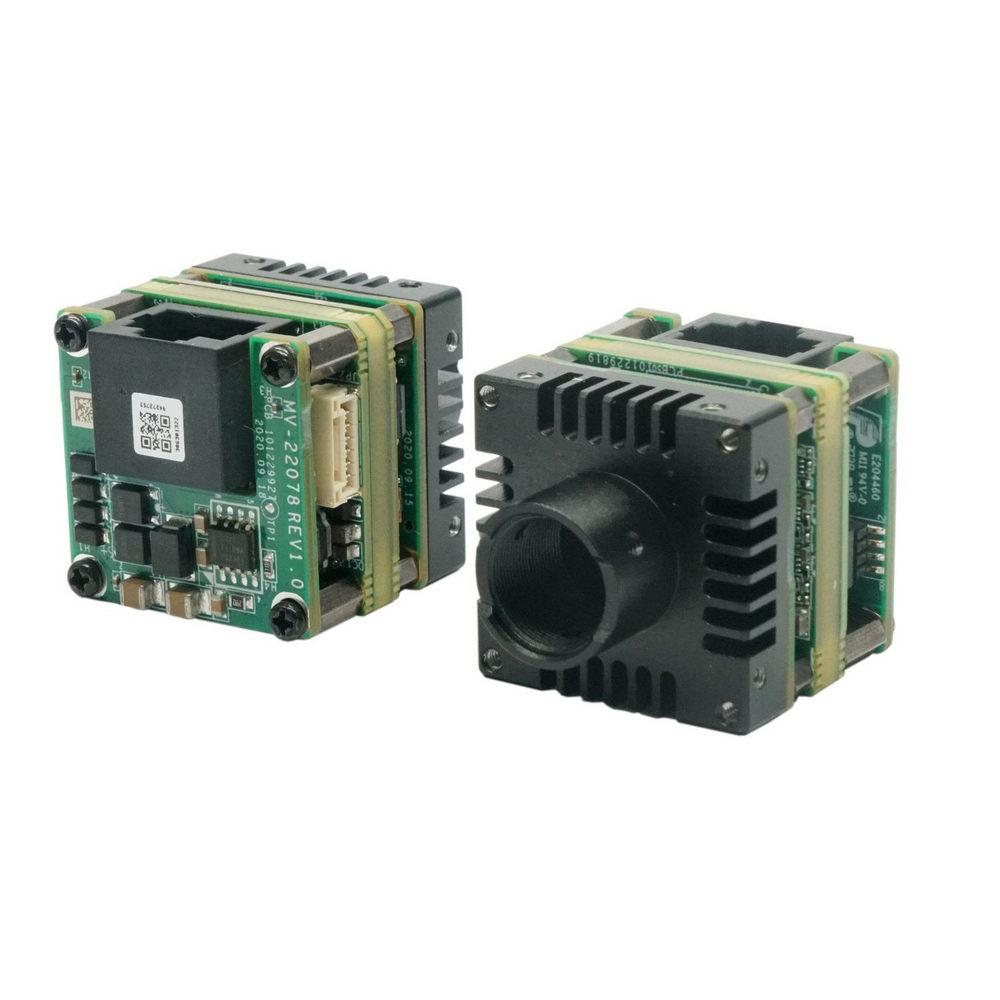

Name: HIKROBOT MV-CB060-10GC-S :: Machine-Vision камера, Board Level, CB Series, 19.1 fps @ 3072×2048, 2.4 μm, цветна, Gigabit, M12-mount
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа автоматично или ръчно регулиране на усилването, времето на експозиция, баланса на бялото, ръчно регулиране на гама корекция, LUT, Binning и др.
Прилага функции за намаляване на шума и компресия, за да осигури висококачествени изображения
GigE интерфейс и максимално разстояние на предаване от 100 метра
Съвместимост с GigE Vision V2.0 протокол, GenlCam стандарт и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CB060-10GC-S
Model	Type	6MP Board Level Camera, GigE,IMX178,Color,M12-mout
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	IMX178
	Pixel size	2.4 μm × 2.4 μm
	Sensor size	1/1.8"
	Resolution	3072 × 2048
	Max. frame rate	19.1 fps @3072 × 204830.7 fps @3072 × 2048 (image compression mode enabled)
	Dynamic range	71.3 dB
	SNR	41.3 dB
	Gain	0 dB to 24 dB
	Exposure time	25 μs to 2.5 sec
	Exposure mode	Off/ Once/ Continuous exposure mode
	Mono/color	Color
	Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p,YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
	Binning	Supports 1 × 1, 2 × 2
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	GigE
	Digital I/O	6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 2.6 W@12 VDC
Mechanical	Lens mount	M12-mount
	Dimension	29 mm × 29 mm × 30.2 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 45 g (0.1 lb.)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, FCC, RoHS, KC
