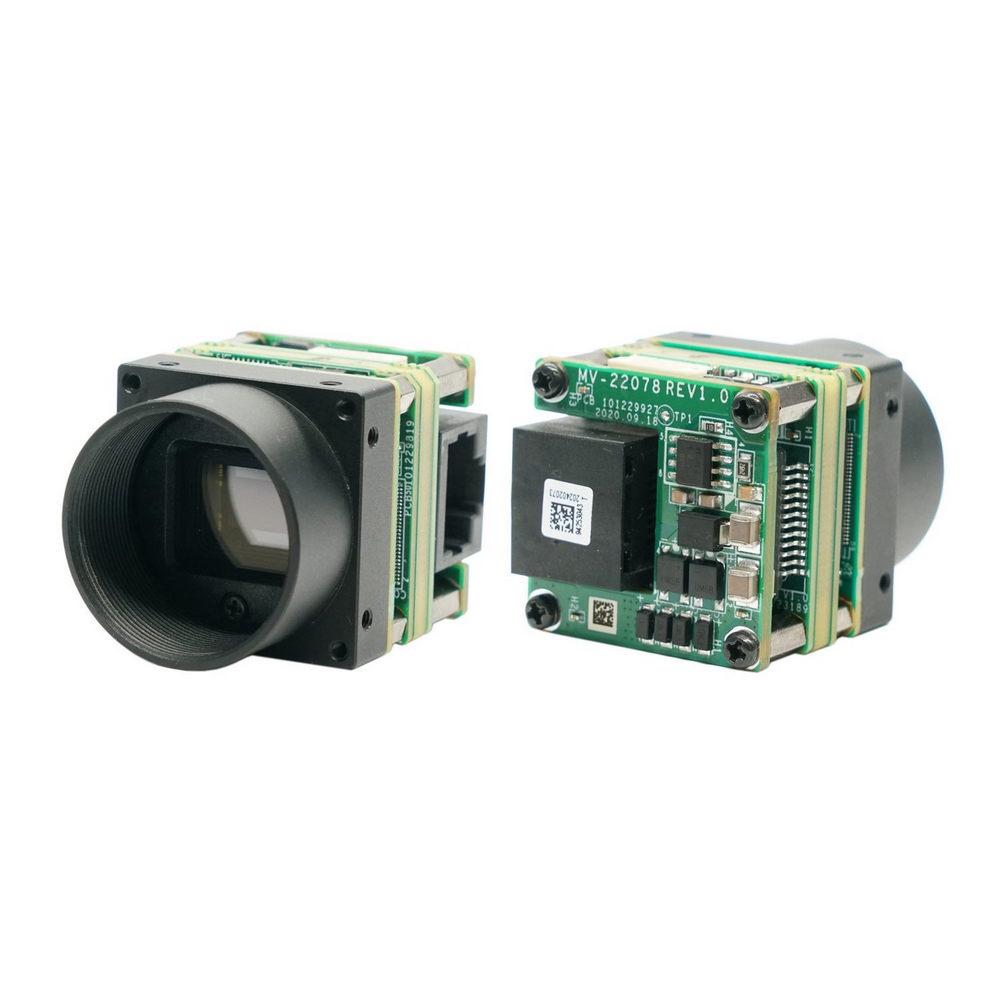

Name: HIKROBOT MV-CB004-10GM-S :: Machine-Vision камера, Board Level, CB Series, 125.2 fps @ 720×540, 6.9 μm, Gigabit, M12-mount, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа автоматично или ръчно регулиране на усилването, времето на експозиция, баланса на бялото, ръчно регулиране на гама корекция, LUT, Binning и др.
Използва функция за намаляване на шума, за да осигури висококачествени изображения
GigE интерфейс и максимално разстояние на предаване от 100 метра
Съвместимост с GigE Vision V2.0 протокол, GenlCam стандарт и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CB004-10GM-S
Model	Type	0.4MP Board Level Camera, GigE,IMX297,Mono,M12-mout
Performance	Sensor type	CMOS, global shutter
	Sensor model	IMX297
	Pixel size	6.9 μm × 6.9 μm
	Sensor size	1/2.9"
	Resolution	720 × 540
	Max. frame rate	125.2 fps @720 × 540
	Dynamic range	74 dB
	SNR	41 dB
	Gain	0 dB to 24 dB
	Exposure time	UltraShort exposure mode: 1 μs to 14 μsStandard exposure mode: 15 μs to 10 sec
	Exposure mode	Off/ Once/ Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	GigE
	Digital I/O	6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 2.5 W@12 VDC
Mechanical	Lens mount	M12-mount
	Dimension	29 mm × 29 mm × 30.2 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 45 g (0.1 lb.)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, FCC, RoHS, KC
