Name: HIKROBOT MV-ACP-H6p-open-SF-7m :: Power/IO кабел, Arm, Flexible, Hirose 6pin, HR10A-7P-6S to Open, Moveable, Power/IO, черен, 7.0 м
Brand: HIKROBOT
Availability: OutOfStock

Описание

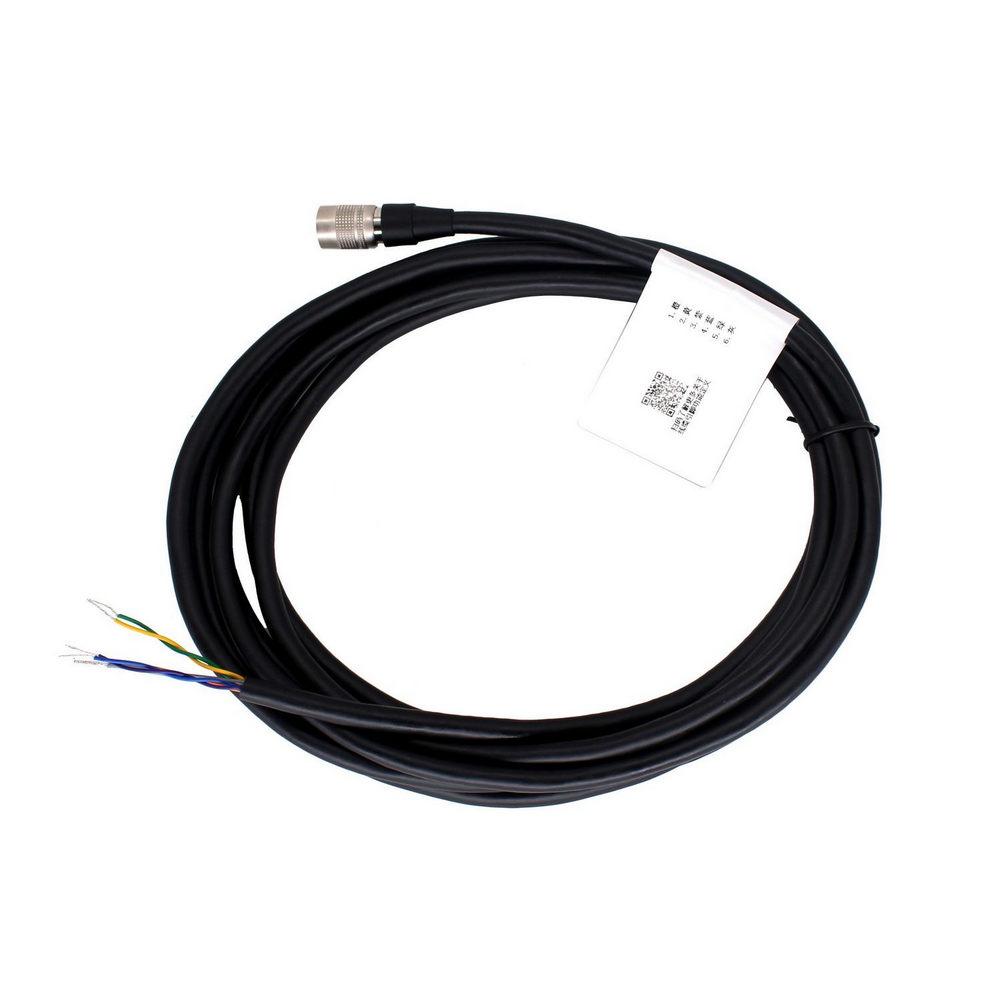

The 6-pin P7 Super Flex Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.

Model	Product Model	MV-ACP-H6p-open-SF-7m
Model	Type	MV-ACP-H6p-open-SF-7m
Physical specification	End A connector	P7 6-pin，Femal，Black insulator，Solder type
	End B connector	Open
	Cable diameter	5.5 mm
	Length	7 m
	Cable mechanical	2P28AWG+2C23AWG+AB
	Jacket	PVC
	Cable color	Black
	Connector model	made in China
	Connector durability	≥ 750 cycles
	Min. bending radius	66 mm
	Applicable scenario	Tank chain，Robot arm
	Max. U-type bending cycles	≥ 10 million times
	Max. ±90° bending cycles	≥ 3 million times
	Max. ±180° torsional cycles	≥ 5 million times
Electrical specification	Max. voltage	30 VDC
Additional information	Working temperature	-20℃~80℃
	Certification	RoHS2.0
	Packaging	Individual package
