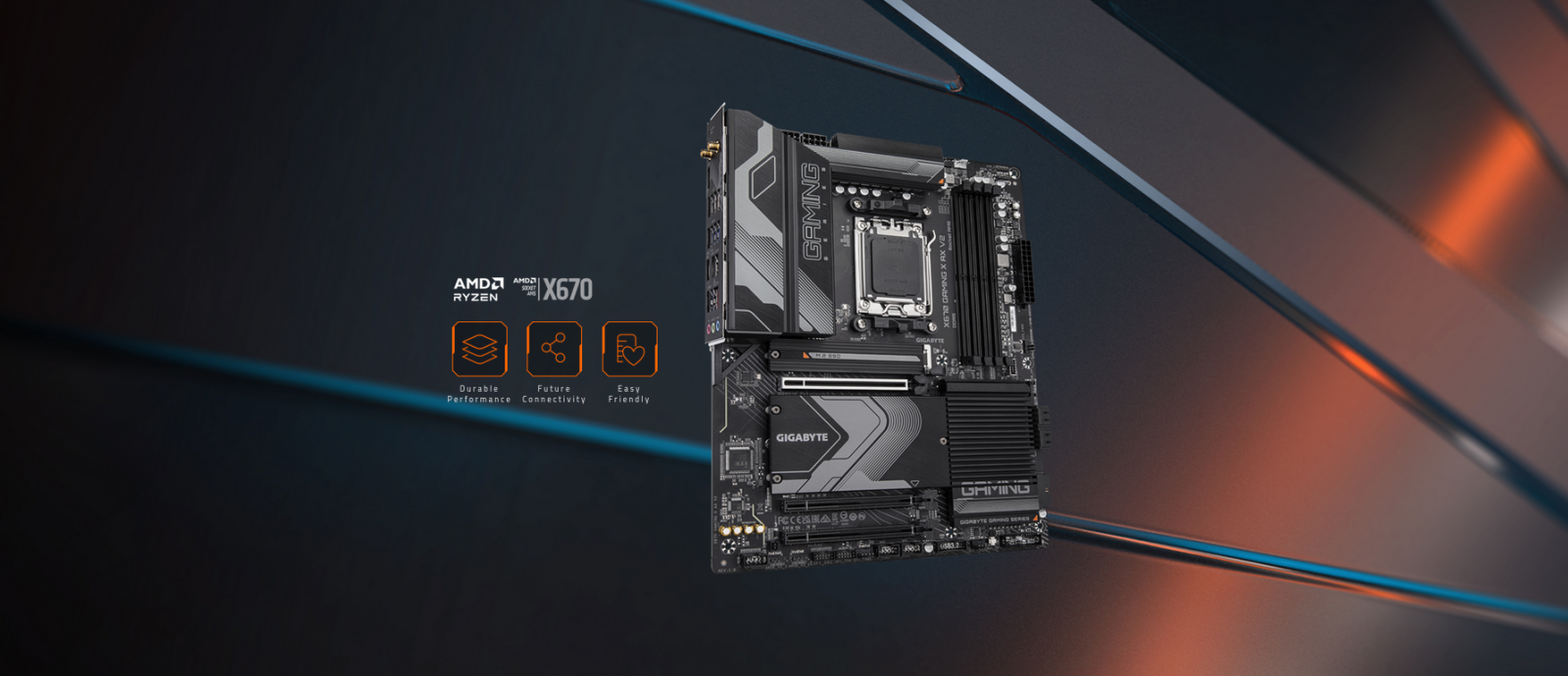

Дънна платка Gigabyte X670 GAMING X AX V2, X670, AM5, DDR5, PCI-E 4.0 (HDMI), 2x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen 2x2 Type-C, 6x USB 3.2 Gen 1 Type-A, 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.3, ATX



Gigabyte X670 GAMING X AX V2 (rev. 1.0)







• AMD Socket AM5：Supports AMD Ryzen 7000 Series / Ryzen 8000 Series Processors
• Unparalleled Performance：Twin 14*+2+2 Phases Digital VRM Solution
• Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
• Next Generation Storage：1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
• Mega-Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
• EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
• Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity：HDMI, Dual USB-C 20Gbps and Upcoming GIGABYTE USB4 AIC Support
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card













Tech specs:

   CPU
       AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 Series Processors

   Chipset
       AMD X670

   Memory
       Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
       4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
       Dual channel memory architecture
       Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
       Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules.)

   Onboard Graphics
   Integrated Graphics Processor:
       1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
       * Support for HDMI 2.1 version and HDCP 2.3.
       ** Support native HDMI 2.1 TMDS compatible ports.
   (Graphics specifications may vary depending on CPU support.)

   Audio
       Realtek Audio CODEC
       High Definition Audio
       2/4/5.1/7.1-channel
       * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

   LAN
       Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

   Wireless Communication module
   Realtek Wi-Fi 6E RTL8852CE
       WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
       BLUETOOTH 5.3
       Support for 11ax 160MHz wireless standard
   (Actual data rate may vary depending on environment and equipment.)

   Expansion Slots
   1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
       AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
       AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
       AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
       * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   Chipset:
       1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
       1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

   Storage Interface
   1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
       AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
       AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
   1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
       AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
       AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
       AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
   Chipset:
       2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
       4 x SATA 6Gb/s connectors
   RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
   RAID 0, RAID 1, and RAID 10 support for SATA storage devices

   USB
   CPU:
       2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
       2 x USB 3.2 Gen 1 ports on the back panel
   CPU + USB 2.0 Hub:
       4 x USB 2.0/1.1 ports on the back panel
   Chipset:
       2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
       8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
       4 x USB 2.0/1.1 ports available through the internal USB headers

   Internal I/O Connectors
       1 x 24-pin ATX main power connector
       2 x 8-pin ATX 12V power connectors
       1 x CPU fan header
       1 x CPU fan/water cooling pump header
       3 x system fan headers
       3 x addressable RGB Gen2 LED strip headers
       1 x RGB LED strip header
       4 x SATA 6Gb/s connectors
       4 x M.2 Socket 3 connectors
       1 x front panel header
       1 x front panel audio header
       1 x USB Type-C header, with USB 3.2 Gen 2x2 support
       2 x USB 3.2 Gen 1 headers
       2 x USB 2.0/1.1 headers
       1 x THB_U4 add-in card connector
       1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
       1 x power button
       1 x reset button
       1 x Clear CMOS button
       1 x reset jumper
       1 x Clear CMOS jumper

   Back Panel Connectors
       1 x Q-Flash Plus button
       2 x SMA antenna connectors (2T2R)
       1 x HDMI port
       6 x USB 3.2 Gen 1 ports
       4 x USB 2.0/1.1 ports
       2 x USB 3.2 Gen 2 Type-A ports (red)
       1 x USB Type-C port, with USB 3.2 Gen 2x2 support
       1 x RJ-45 port
       3 x audio jacks

   I/O Controller
       iTE I/O Controller Chip

   BIOS
       1 x 256 Mbit flash
       Use of licensed AMI UEFI BIOS
       PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

   Operating System
       Support for Windows 11 64-bit
       Support for Windows 10 64-bit

   Form Factor
       ATX Form Factor; 30.5cm x 24.4cm
