Видео карта AMD Radeon RX 6800, 16GB, Gigabyte GAMING OC, PCI-E 4.0, GDDR6, 256-bit, DisplayPort, HDMI

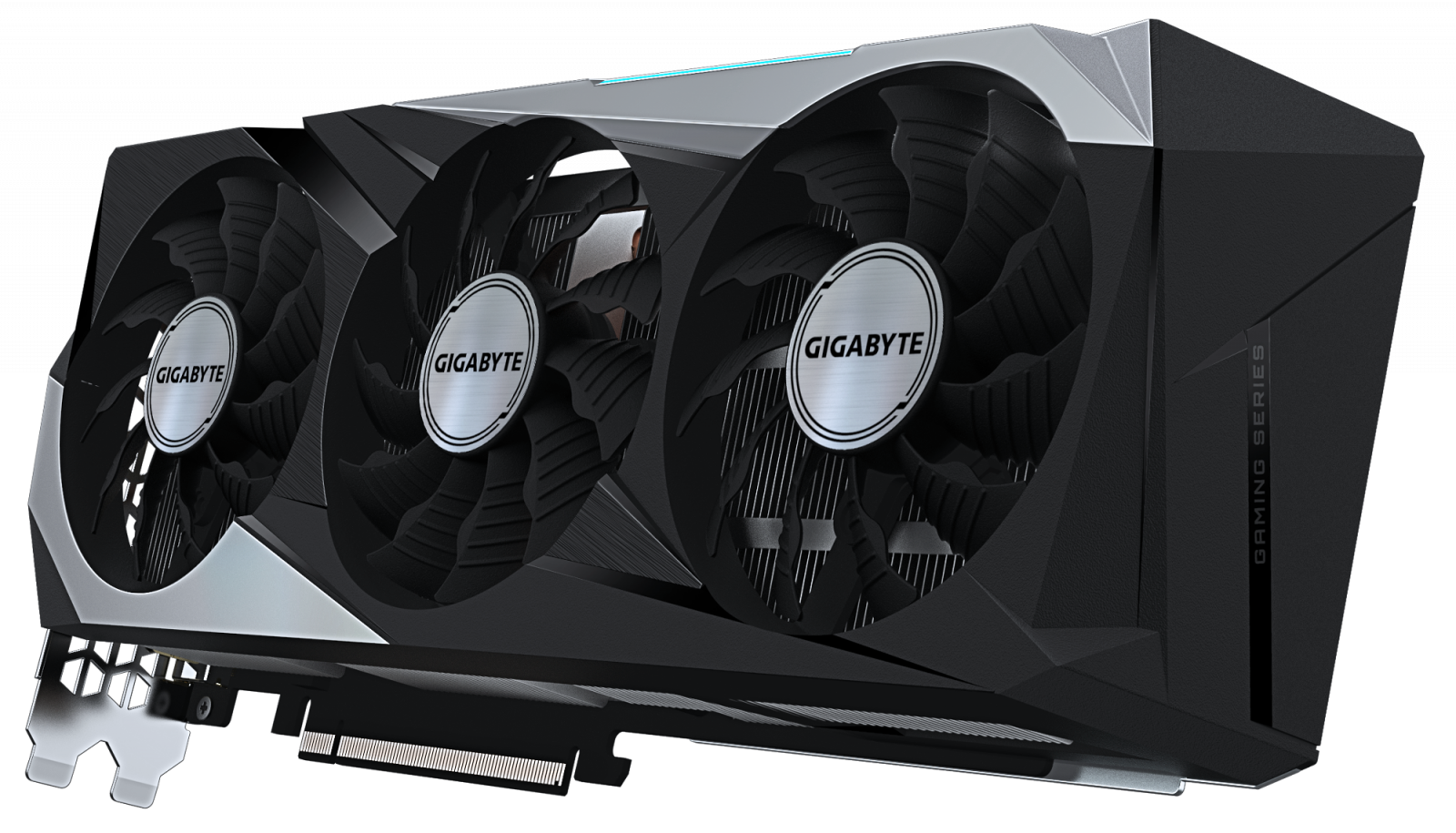

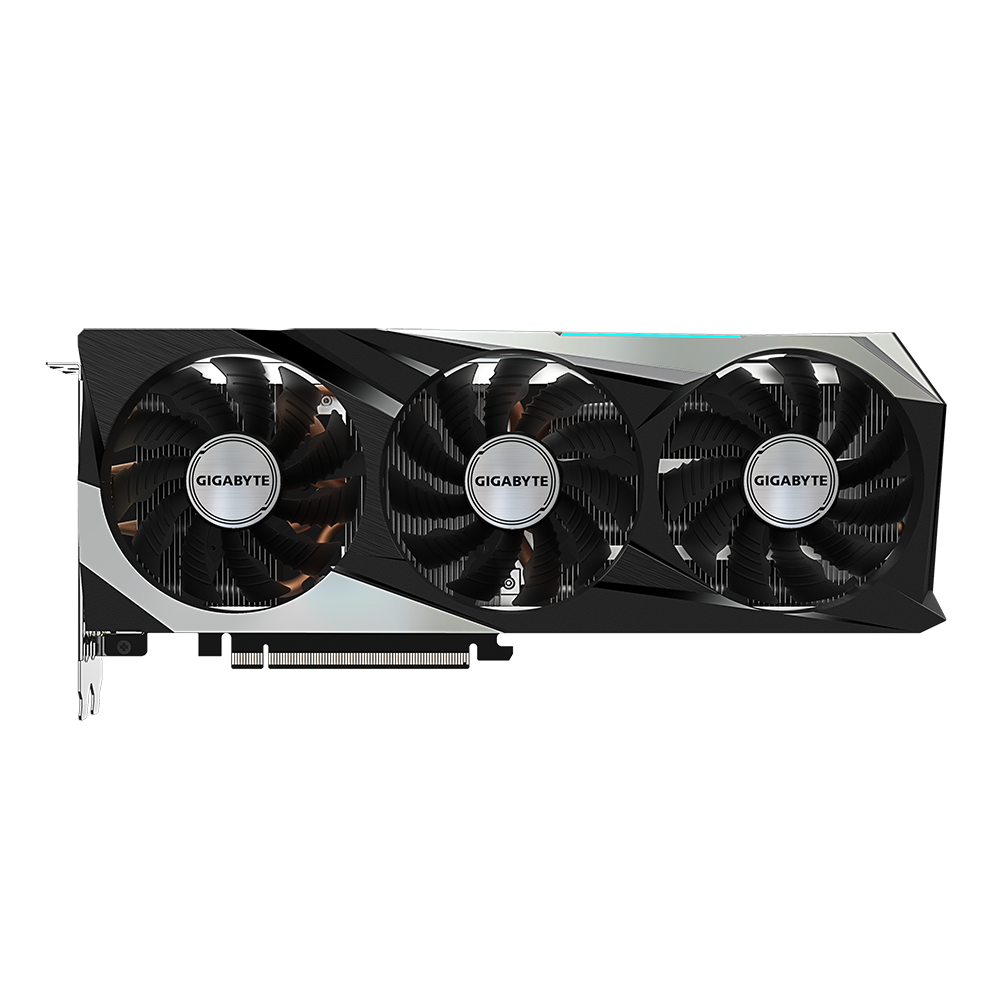

Gigabyte Radeon RX 6800 GAMING OC 16G





FEATURES
Powered by RDNA2 Radeon™ RX 6800
Integrated with 16GB GDDR6 256-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
Screen cooling
Graphene nano lubricant
RGB Fusion 2.0
Dual BIOS
Protection metal back plate

CORE CLOCK
Boost Clock* : up to 2155 MHz (Reference card: 2105 MHz)
Game Clock* : up to 1925 MHz (Reference card: 1815 MHz)

SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

Graphics Processing
Radeon™ RX 6800

Core Clock
Boost Clock* : up to 2155 MHz (Reference card: 2105 MHz)
Game Clock* : up to 1925 MHz (Reference card: 1815 MHz)

Stream Processors
3840

Process Technology
7 nm

Memory Clock
16000 MHz

Memory Size
16 GB

Memory Type
GDDR6

Memory Bus
256 bit

Memory Bandwidth (GB/sec)
512 GB/s

Card Bus
PCI-E 4.0 x 16

Digital max resolution
7680x4320

Multi-view
4

Card size
L=286 W=112 H=58 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8 pin*2

Output
DisplayPort 1.4a *2
HDMI 2.1 *2

Accessories
Quick guide

Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
