Видео карта AMD Radeon RX 5600 XT, 6GB, Gigabyte GAMING OC, PCI-E 4.0, GDDR6, 192bit, DisplayPort, HDMI

Features
Powered by AMD Radeon™ RX 5600 XT
Integrated with 6GB GDDR6 192-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0 – 16.7M colors synchronize with other AORUS devices
Metal Back Plate
PCI-Express 4.0 Support



WINDFORCE 3X COOLING SYSTEM

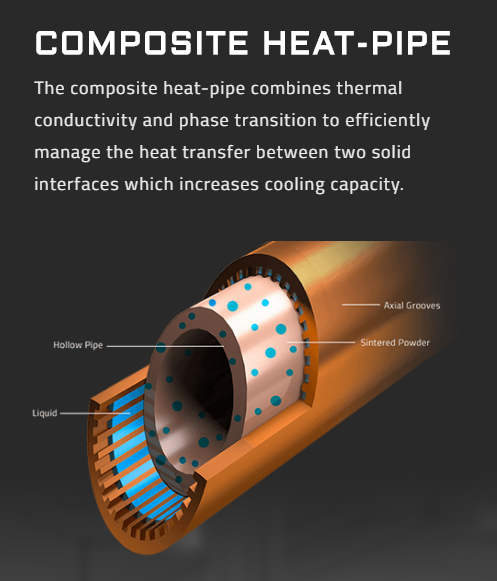

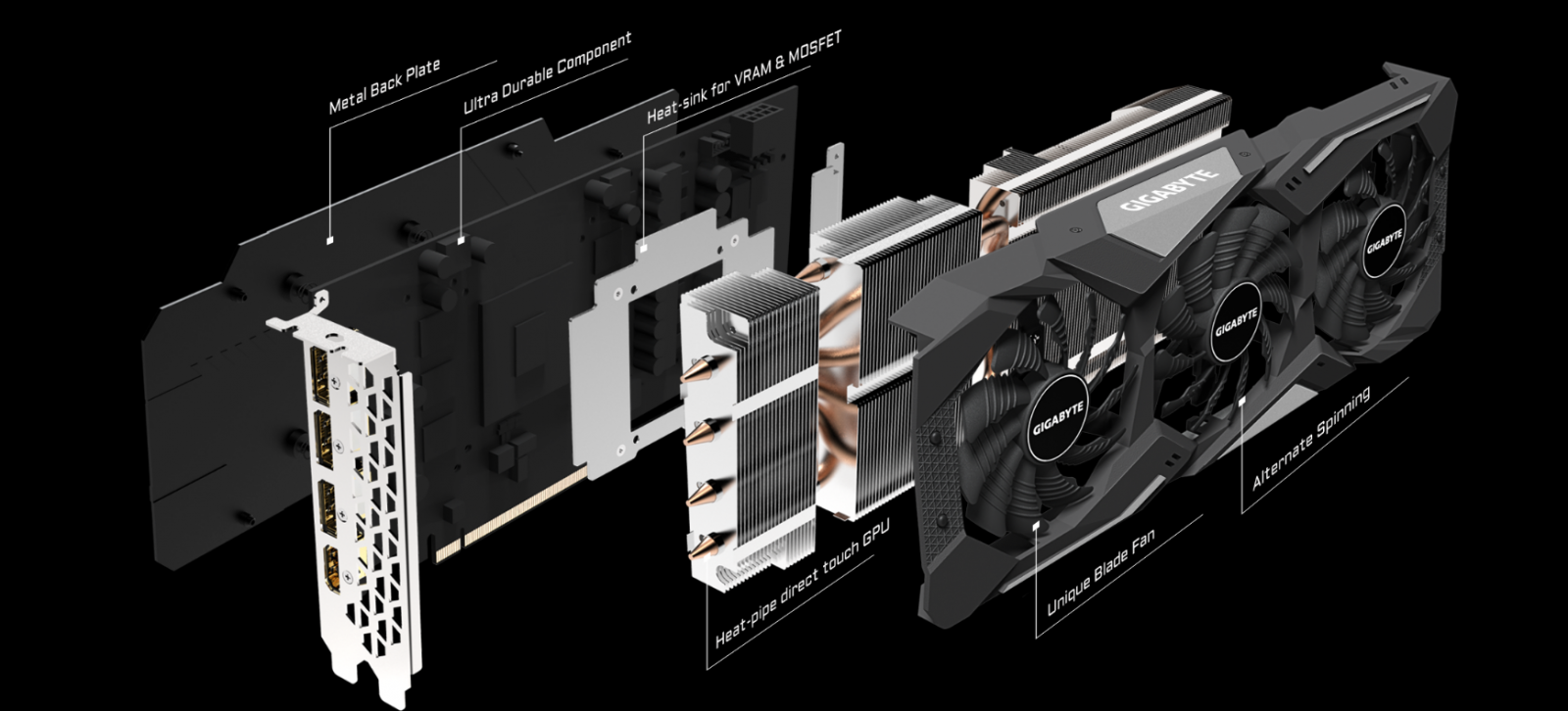

The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 5 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

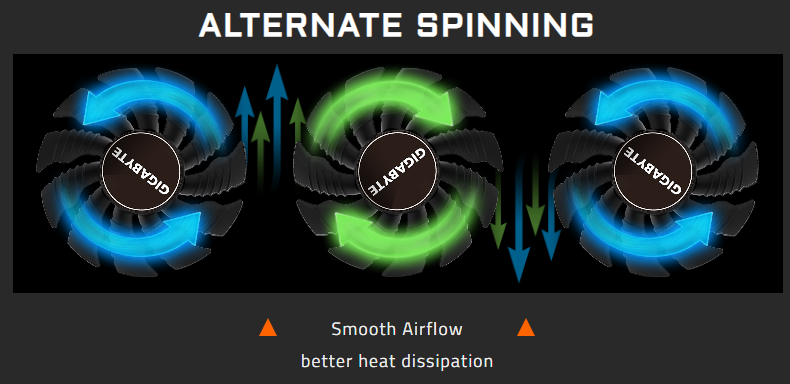

ALTERNATE SPINNING

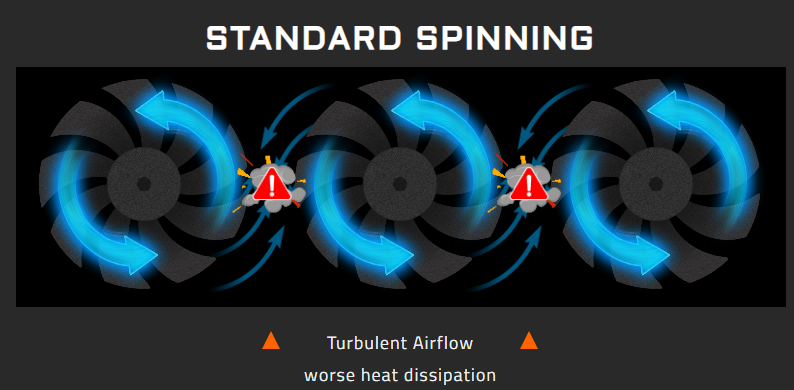

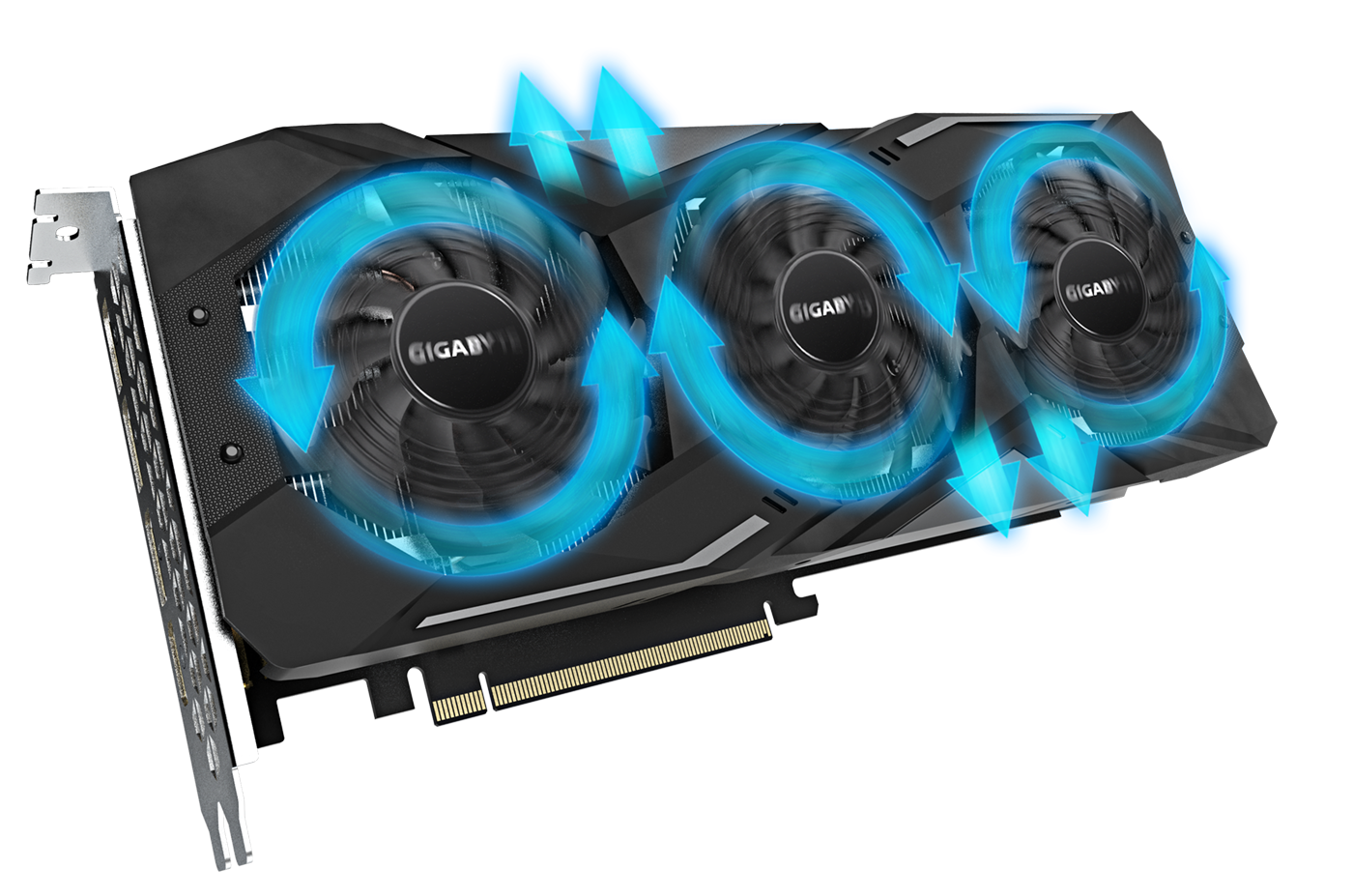

The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.



UNIQUE BLADE FAN

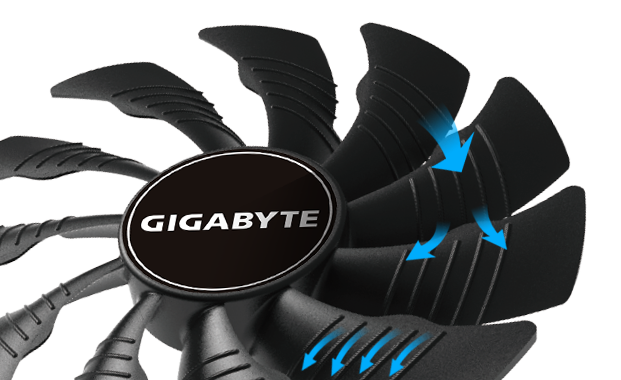

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

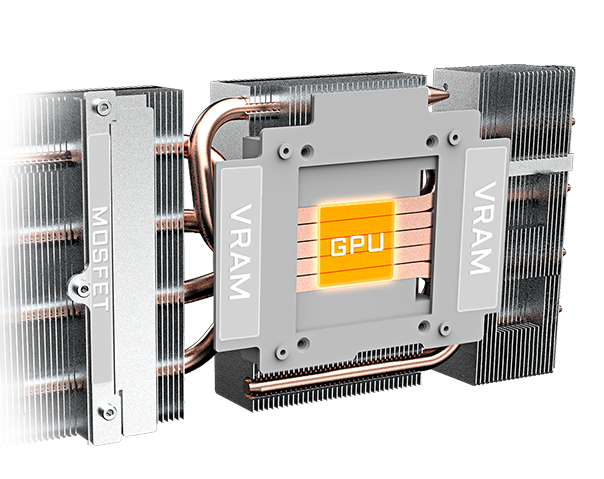

HEAT PIPES DIRECT TOUCH GPU

The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.

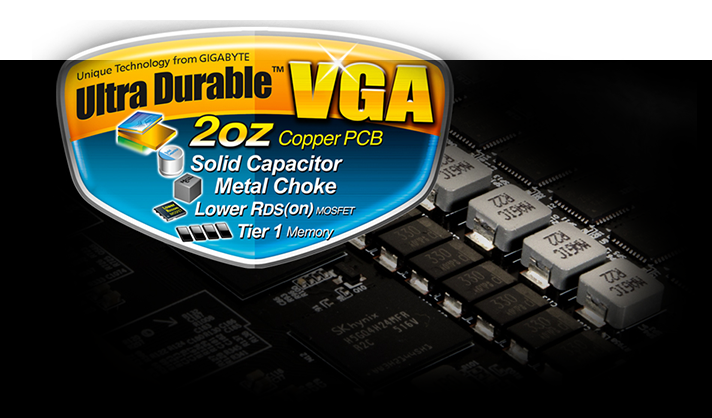

EXTREME DURABILITY AND OVERCLOCKING

The graphics card uses the better power phases design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

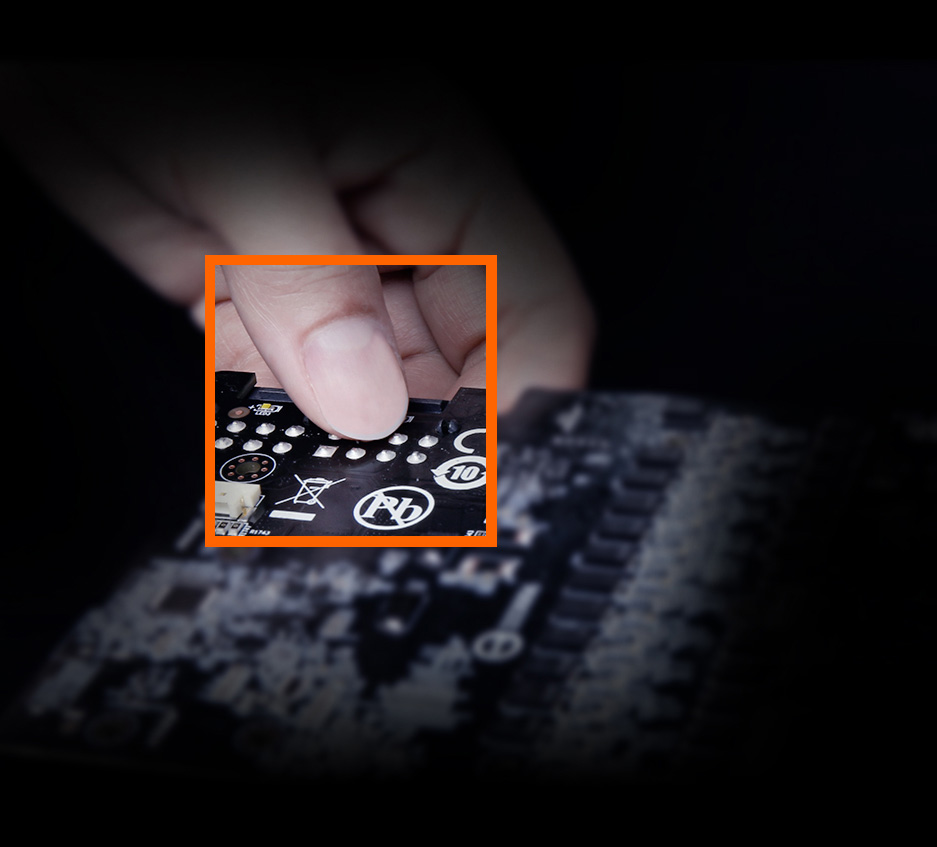

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

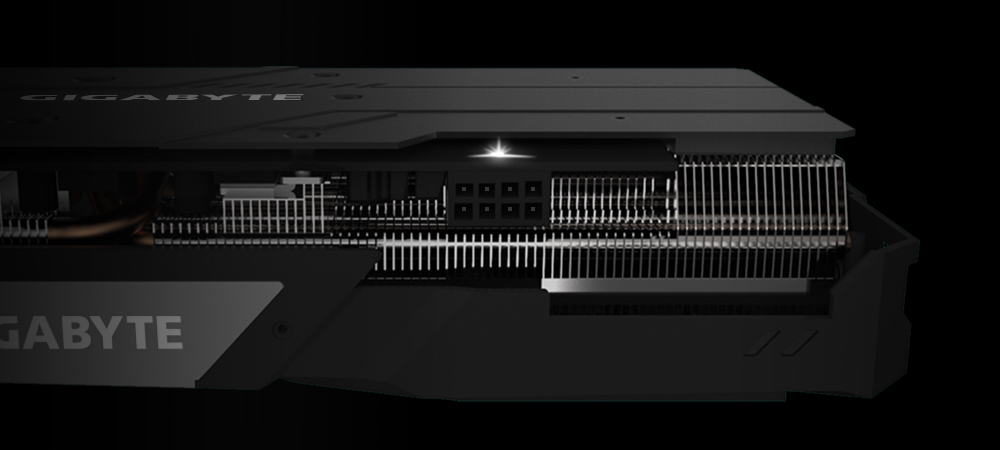

POWER INDICATOR

The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.

Light on : power cable disconnected          Light off : stable power supply         Blinking : abnormal power supply

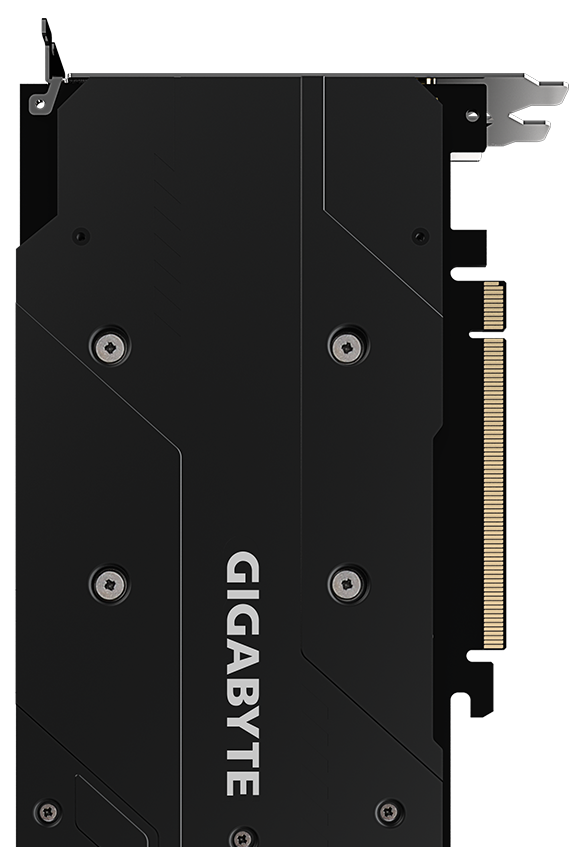

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.



PCI-E 4.0 SUPPORT

Gigabyte Radeon RX 5600 XT GAMING OC features PCI-Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. With the PCI-Express 4.0 supported motherboard, and get ready for the next generation of PC gaming.



SPECIFICATIONS

Graphics Processing	Radeon™ RX 5600 XT
Core Clock	Boost Clock : up to 1620 MHz Game Clock* : 1560 MHz
Stream Processors	2304
Process Technology	7 nm
Memory Clock	12000 MHz
Memory Size	6 GB
Memory Type	GDDR6
Memory Bus	192 bit
Memory Bandwidth (GB/sec)	288 GB/s
Card Bus	PCI-E 4.0 x 16
Digital max resolution	7680x4320@60Hz
Multi-view	4
Card size	L=279.85 W=114.35 H=49.55 mm
PCB Form	ATX
DirectX	12
OpenGL	4.6
Recommended PSU	450W
Power Connectors	8 Pin*1
Output	DisplayPort 1.4 *3 HDMI 2.0b *1
Accessories	Quick Guide
Note	*Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
