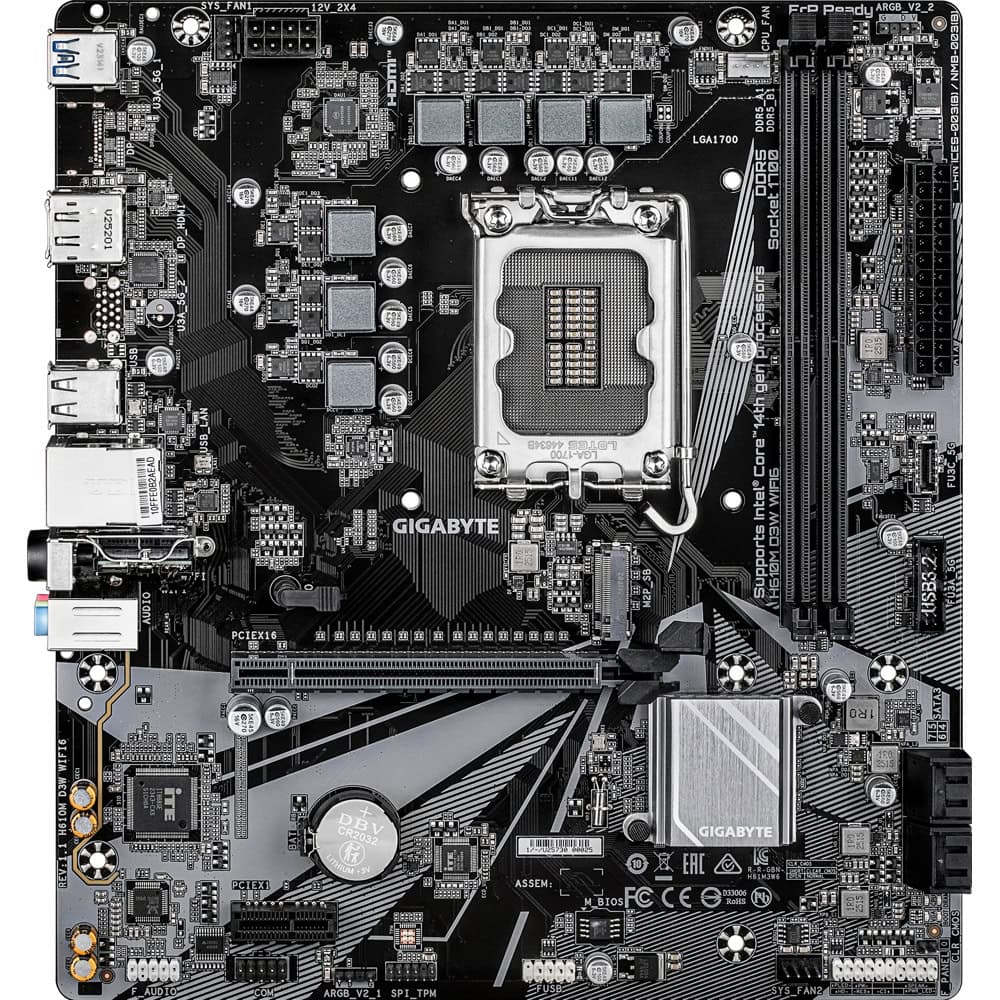

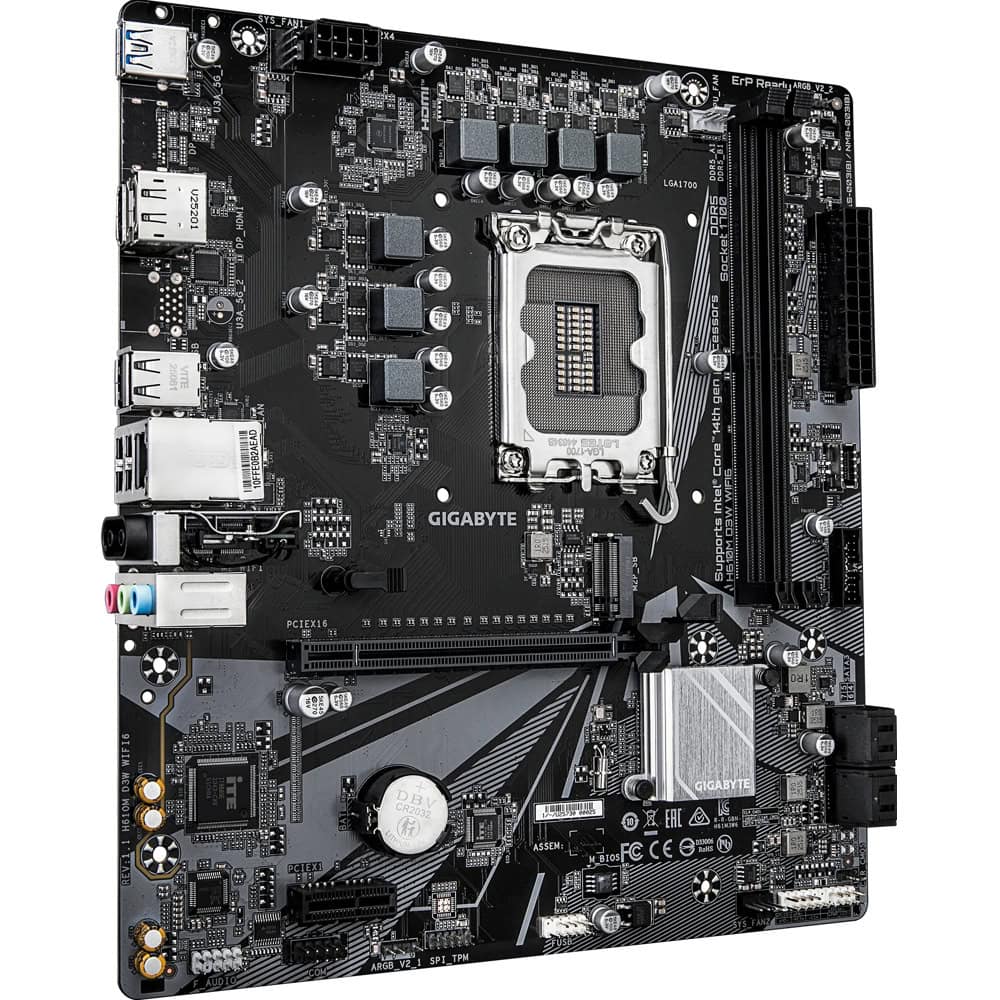

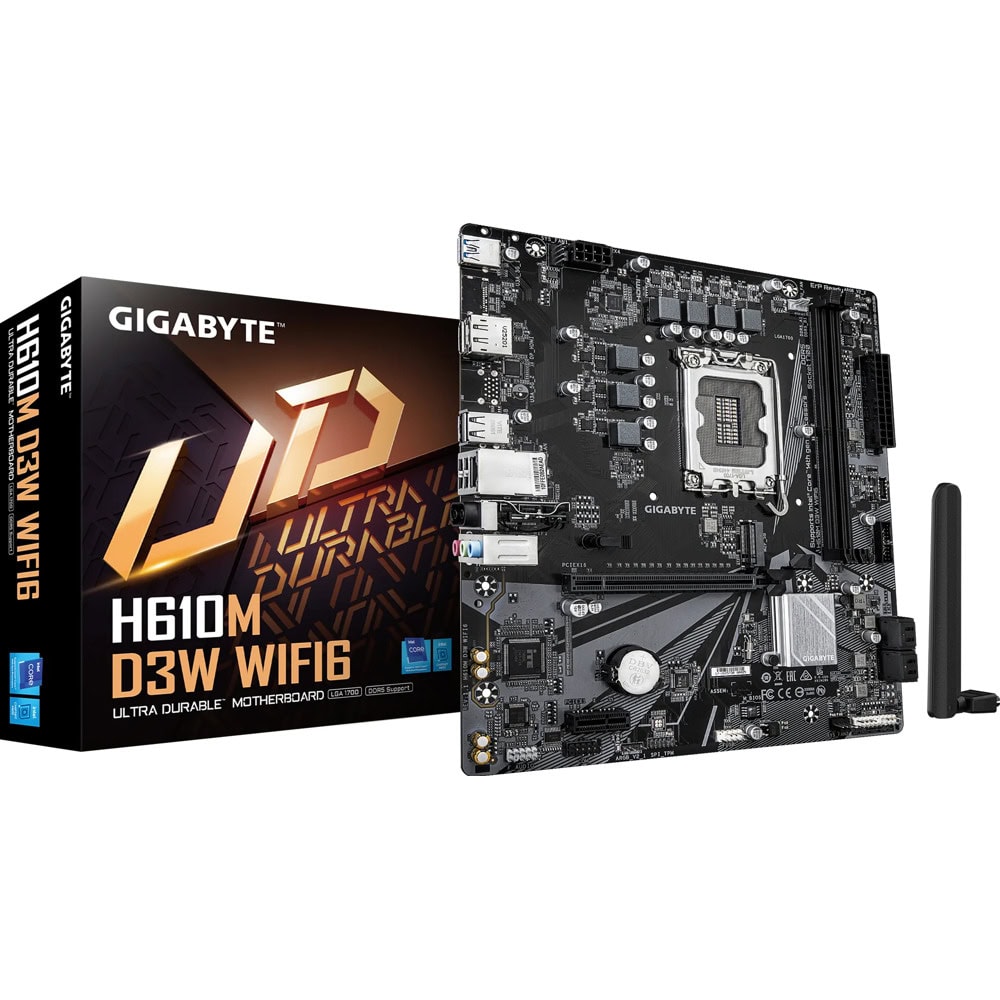

Name: Дънна платка Gigabyte H610M D3W WIFI6, H610, LGA1700, DDR5, PCI-E 5.0, (DP&HDMI), 1x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen 1, 1GbE LAN, Wi-Fi 6, Bluetooth 5.3, Micro ATX
Brand: Gigabyte
SKU: MBIGIGABYTEH610MD3WWIFI6
Price: 98.79 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

Intel® H610 Motherboard with 5+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, GbE LAN, Wi-Fi 6 802.11ax, Anti-Sulfur Resistor, Smart Fan 6

Supports Intel® Core™ 14th/ 13th/ 12th processors
Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
5+1+1 Hybrid Digital VRM Design
Fast Networks：Wi-Fi 6 802.11ax, GbE LAN
NVMe PCIe 3.0 x4 M.2
DisplayPort / HDMI for Multiple Display
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use
Anti-Sulfur Resistors Design

Component	Specification
Socket	LGA1700
Supported Processors	Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors
Chipset	Intel® H610 Express Chipset
Cache	L3 cache varies depending on CPU
Memory Type	DDR5
Memory Slots	2 × DDR5 DIMM
Maximum Memory	Up to 128 GB (2 × 64 GB)
Memory Architecture	Dual Channel
Supported Memory Speeds	14th/13th Gen Core i9/i7: DDR5-5600/5200/4800/4400 MT/s; 13th Gen Core i5/i3 & 12th Gen Core/Pentium Gold/Celeron: DDR5-4800/4400 MT/s
Memory Support	ECC Un-buffered DIMM (non-ECC mode), Non-ECC Un-buffered DIMM (1Rx8/2Rx8/1Rx16), Intel® XMP
Integrated Graphics	Intel® HD Graphics (CPU dependent)
Video Outputs	1 × DisplayPort 1.2 (4096×2304 @ 60 Hz, HDCP 2.3), 1 × HDMI 2.1 (4096×2160 @ 60 Hz, HDCP 2.3, native HDMI 2.1 TMDS compatible)
Audio	Realtek® High Definition Audio CODEC, 2/4/5.1/7.1-channel
LAN	Realtek® Gigabit Ethernet (10/100/1000 Mbps)
Wireless	Realtek® Wi-Fi 6 RTL8851BE, IEEE 802.11 a/b/g/n/ac/ax, 2.4 GHz & 5 GHz, 80 MHz channel support
Bluetooth	Bluetooth 5.3
PCIe Slots	1 × PCIe 4.0 x16 (CPU), 1 × PCIe 3.0 x1 (Chipset)
M.2 Slots	1 × M.2 Socket 3 (2280, M-Key, PCIe 3.0 x4/x2 SSD)
SATA Ports	4 × SATA 6 Gb/s
USB (Rear)	1 × USB 3.2 Gen 1 Type-A, 4 × USB 2.0/1.1
USB (Internal)	1 × USB Type-C® (USB 3.2 Gen 1), 1 × USB 3.2 Gen 1 header (2 ports), 1 × USB 2.0/1.1 header (2 ports)
Internal Connectors	24-pin ATX power, 8-pin ATX12V, CPU fan header, 2 × system fan headers, 2 × Addressable RGB Gen2 headers, M.2 connector, 4 × SATA, front panel header, front panel audio, USB Type-C® header, USB 3.2 Gen 1 header, USB 2.0 header, TPM header (GC-TPM2.0 SPI V2), serial port header, Clear CMOS jumper

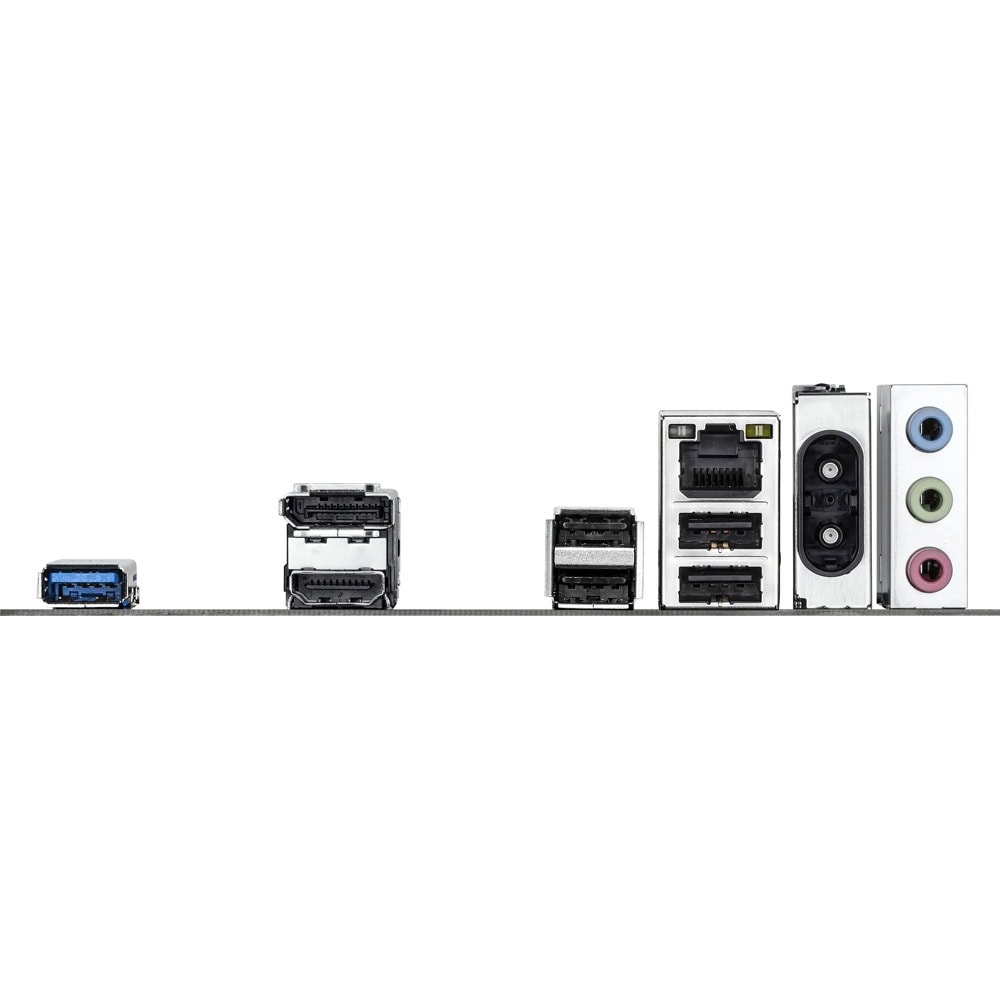

Rear I/O	1 × DisplayPort, 1 × HDMI, 1 × USB 3.2 Gen 1, 4 × USB 2.0/1.1, 1 × RJ-45, 2 × Wi-Fi antenna connectors, 3 × audio jacks
I/O Controller	iTE® I/O Controller Chip
Hardware Monitoring	Voltage detection, temperature detection, fan speed detection, water cooling flow rate detection, fan fail warning, fan speed control
BIOS	128 Mbit Flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features	GIGABYTE Control Center (GCC), Q-Flash, Smart Backup
Bundled Software	Norton® Internet Security (OEM version)
Operating System Support	Windows 11 64-bit, Windows 10 64-bit
Form Factor	Micro ATX
Dimensions	24.4 × 22.0 cm

Виж още Дънни платки за Intel процесори Gigabyte
Виж всички Дънни платки за Intel процесори в категорията

Технически характеристики

Процесор сокет:	LGA 1700
Чипсет:	H610
Поддържана памет:	DDR5
Брой слотове за RAM памет:	2
Storage интерфейси:	SATA 6Gbit/s, M.2
RAID:	Не
Безжични мрежи:	Wi-Fi 6 (802.11ax)
Bluetooth:	Не
Видео слот:	PCI-E
Multi-Graphics технология:	Няма
Видео изход:	DP HDMI
Форм фактор:	Micro ATX
