Видео карта Nvidia GF RTX 4070 Super, 12GB, Gigabyte Aorus Master, PCI-E 4.0, GDDR6X, 192-bit, DisplayPort, HDMI



Gigabyte AORUS GeForce RTX 4070 SUPER MASTER





















WINDFORCE COOLING SYSTEM

THE EVOLVING POWER OF WINDFORCE

The WINDFORCE cooling system features three 108mm newly designed bionic shark fans, alternate spinning, 9 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.











DIRECTLY. SO FAST.

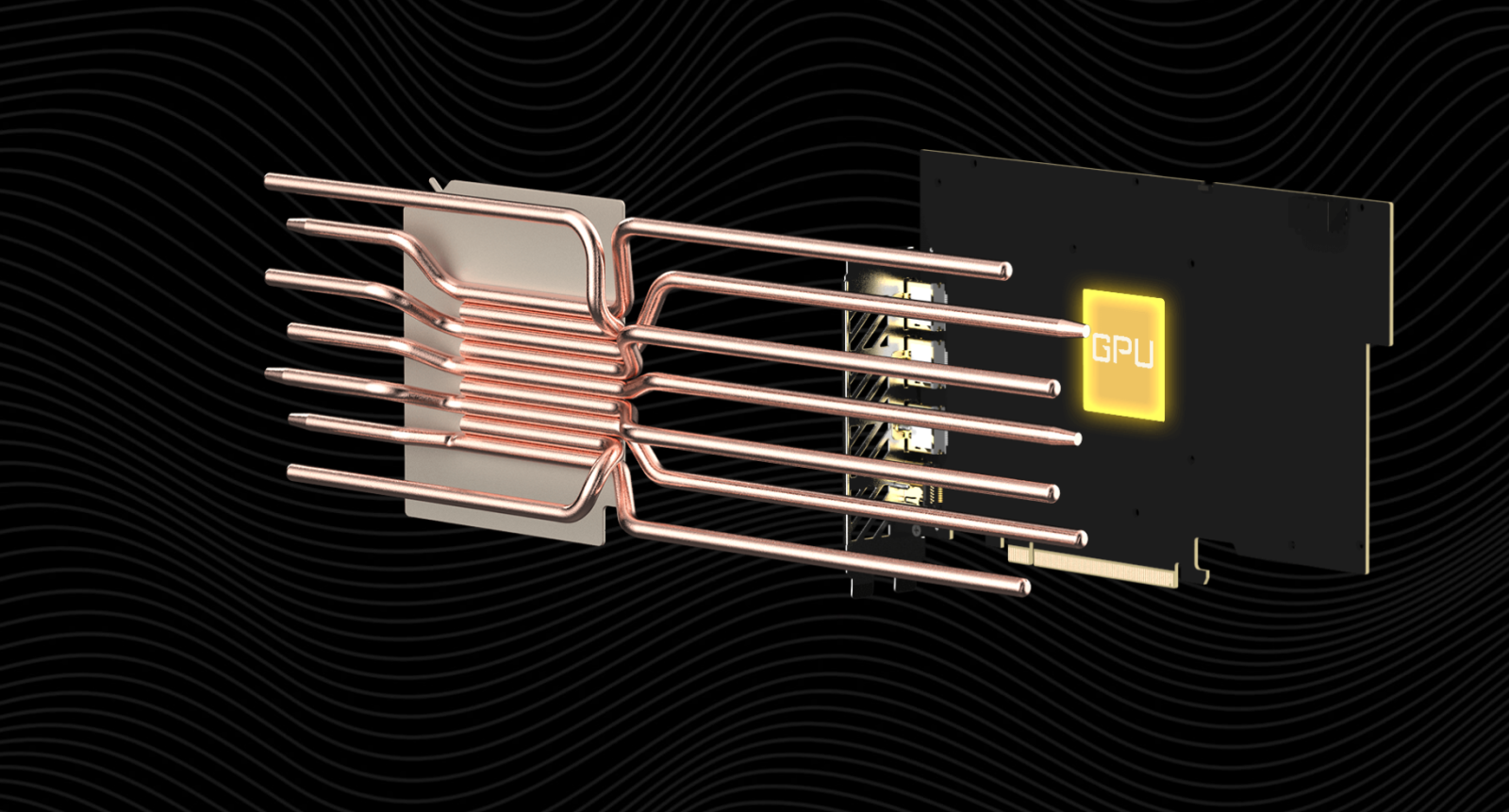

LARGE VAPOR CHAMBER & HEAT-PIPE

The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.












THE OTHER WAY AROUND.

ALTERNATE SPINNING

Each fan rotates in different direction to the adjacent one. This special mechanism reduces turbulence and increases air pressure by minimizing the offset occurred between airflows.



3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.












MAKE ROOM FOR THE AIRFLOW.

SCREEN COOLING

To create more space for airflow to pass through, the heatsink extends over the PCB and therefore increase the ventilation. This Screen Cooling design provides better heat dissipation.










Tech specs:

• Graphics Processing

  GeForce RTX 4070 SUPER

• Core Clock

  2655 MHz (Reference card: 2475 MHz)

• CUDA Cores

  7168

• Memory Clock

  21 Gbps

• Memory Size

  12 GB

• Memory Type

  GDDR6X

• Memory Bus

  192 bit

• Card Bus

  PCI-E 4.0

• Digital max resolution

  7680x4320

• Multi-view

  4

• Card size

  L=342 W=153 H=70.6 mm

• PCB Form

  ATX

• DirectX

  12 Ultimate

• OpenGL

  4.6

• Recommended PSU

  700W

• Power Connectors

  16 pin*1

• Output

  DisplayPort 1.4a *3
  HDMI 2.1a *1
