Дънна платка Elitegroup P55H-A, P55, LGA1156, DDR3, 2xPCI-E, SB7.1, Lan7.1, eSATA, SATA RAID 0,1,5,10, ATX

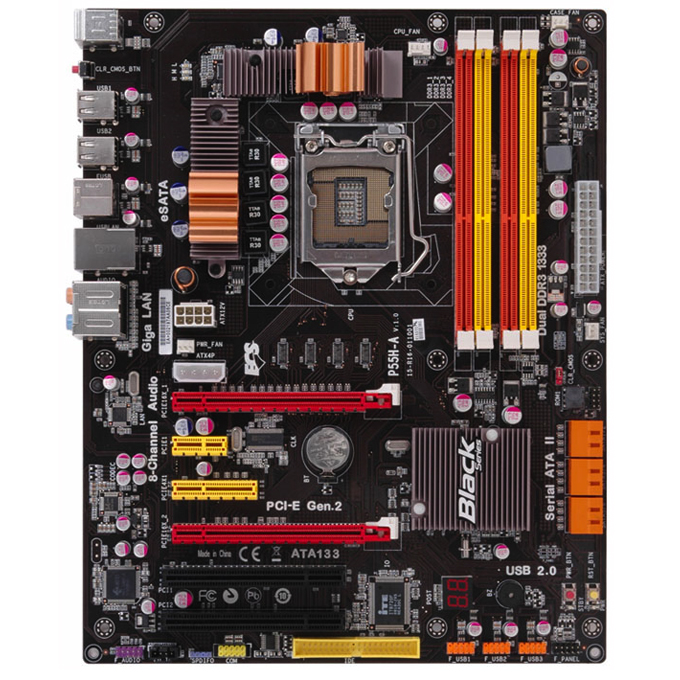

Elitegroup P55H-A

CPU
Support the Intel® LGA1156 Core™ i7 and Intel® Core™ i5 processors

CHIPSET
Featuring the Intel® P55 Express Chipset

MEMORY
Dual-channel DDR3 memory architecture
4 x 240-pin DDR3 DIMM socket support up to 16GB
Support DDR3 up to 2130+(oc)/1333/1066/800 DDR3 SDRAM

EXPANSION SLOT
2 x PCI Express Gen 2.0 x16 slots
1 x PCI Express x4 slot
1 x PCI Express x1 slot
2 x PCI slots
When using two VGA cards, the bandwidth is @8 badnwidth; when using one VGA card, the bandwodth is @16.

STORAGE
Support by Intel® P55
6 x Serial ATAII 3.0Gb/s devices
Support by JMB 361
1 x Ultra DMA133/100/66 port
1 x eSATA
RAID0, RAID1, RAID5, RAID 10 configuration

AUDIO
Realtek ALC888 8-channel HD Audio codec
Compliant with 8CH HD audio specification

LAN
RealTek 8111DL Gigabit Fast Ethernet

REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
1 x RJ45 LAN connector
1 x Audio port (Line-in, Line-out, Mic-in)
1 x SPDIF port
1 x Clear_CMOS button
1 x eSATA
8 x USB ports

INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
1 x 8-pin ATX 12V Power Connector
1 x 4-pin power connector for VGA card
1 x 4-pin CPU_FAN connector
1 x 3-pin CASE_FAN connector
1 x 3-pin PWR_FAN connector
1 x 3-pin SYS_FAN connector
1 x Reset button
1 x IDE connector
1 x Power on button
1 x Front panel switch/LED header
1 x Front panel audio header
1 x SPDIF out header
1 x Clear CMOS header
1 x CD in header
1 x Serial port (COM1)
1X Power on LED (Green light)
1X Stand by LED (Red Light)
6 x Serial ATA 3Gb/s connectors
3 x USB 2.0 headers support additional 6 USB ports
1 x onboard Buzzer

SYSTEM BIOS
AMI BIOS with 16Mb SPI Flash ROM
Supports Plug and Play, STR(S3)/STD(S4), Hardware monitor, ACPI & DMI
Audio, LAN, can be disabled in BIOS
Support Page Up clear CMOS Hotkey
F11 hot key for boot up devices option
Support over-clocking
Supports ACPI 3.0 revision
ECS M.I.B.II Support Over-Clocking:
CPU voltage adjustable
Memory voltage adjustable
External Clock Adjustable
Multiple Frequency Adjustable by CPU
PCH Chipset voltage adjustable

FORM FACTOR
ATX Size, 305mm*244mm
