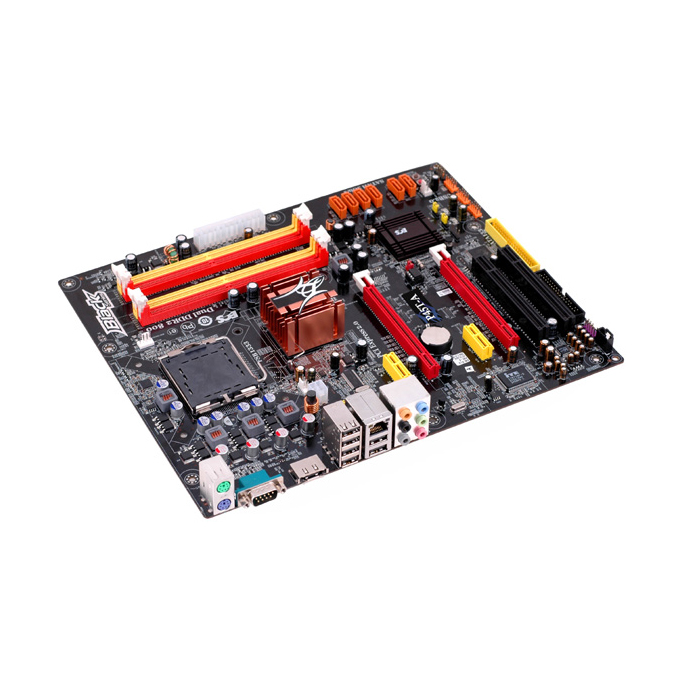

Elitegroup P45T-A
CPU
LGA775 socket for latest Intel® Yorkfield/ Wolfdale/ Conroe/Core 2 Extreme/Core 2 Quad/Core 2 Duo/ Pentium Dual Core/ Celeron Dual Core/ Celeron 4xx processor
FSB 1333/1066/800 MHz
CHIPSET
Intel® Eaglelake P45 & ICH10R
North Bridge: Intel® Eaglelake P45
South Bridge: Intel® ICH10R
MEMORY
Dual-channel DDR2 memory architecture
4 x 240-pin DDR2 DIMM socket support up to 16GB
Support DDR2 800/667 DDR2 SDRAM
EXPANSION SLOT
2 x PCI Express x16 slots
When using two VGA cards, the bandwidth is @8 badnwidth; when using one VGA card, the bandwodth is @16.
2 x PCI Express x1 slots
2 x PCI slots
STORAGE
Support by Intel® ICH10R
6 x Serial ATAII 3.0Gb/s devices
(Supports RAID 0, 1, 5, 10 ICH10R)
Support by JMB 361
1 x IDE channel support 2 Ultra DMA133/100/66 devices
1 x eSATA
AUDIO
Realtek ALC883 7.1 Channel High Definition Audio codec
LAN
Gigabit LAN, Atheros L1 PCIe GigaLAN controller
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
6 x USB ports
1 x RJ45 LAN connector
1 x Audio port
1 x Serial port (COM1)
1 x Externel SATA connector
INTERNAL I/O CONNECTORS & HEADERS
CPUFAN/PWRFAN/SYSFAN connectors
1 x IDE connector
1 x Speaker header
1 x SPDIF out header
6 x Serial ATA connectors
1 x Front panel switch/LED header
1 x Front panel audio header
1 x CD in header
3 x USB 2.0 headers support additional 6 USB ports
1 x Power button/1 x Reset button
SYSTEM BIOS
AMI BIOS with 8Mb SPI Flash ROM
Supports Plug and Play, STR/STD, Hardware monitor, PCI interrupt selection, ACPI & DMI, CPU FSB adjustment (increase of 1MHz)
Audio, LAN, can be disabled in BIOS
F11 hot key for boot up devices option
CPU voltage adjustable
Memory voltage adjustable
Support over-clocking
FORM FACTOR
ATX Size, 305mm*244mm
