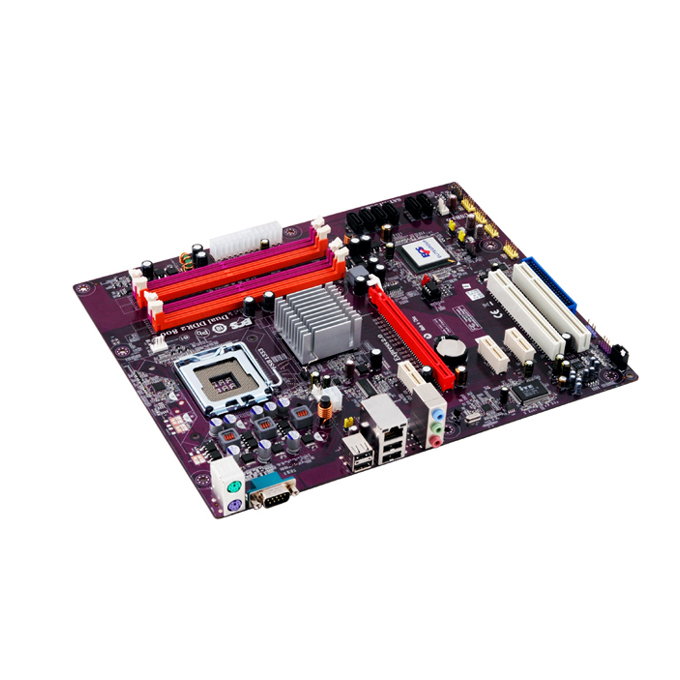

P43T-A2
CPU
LGA775 socket for latest Intel Yorkfield/ Wolfdale/ Core 2 Quad/ Core 2 Duo/ Pentium Dual Core/ Celeron Dual Core/ Celeron 4xx processor
FSB 1333/1066/800 MHz
CHIPSET
Intel® Eaglelake P43 & ICH10
North Bridge: Intel® Eaglelake P43
South Bridge: Intel® ICH10
MEMORY
Dual-channel DDR2 memory architecture
4 x 240-pin DDR2 DIMM socket support up to 16GB
Support DDR2 800/667 DDR2 SDRAM
EXPANSION SLOT
1 x PCI Express x16 slot
3 x PCI Express x1 slots
2 x PCI slots
STORAGE
Support by Intel® ICH10
6 x Serial ATAII 3.0Gb/s devices
Support by JMB 361
1 x IDE channel support 2 Ultra DMA133/100/66 devices
AUDIO
Realtek ALC662 6-channel HD audio CODEC
LAN
Gigabit LAN, Athlos L1 PCIe GigaLAN controller
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x RJ45 LAN connector
1 x Audio port
1 x Serial port (COM1)
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
CPU_FAN/SYS_FAN/PWR_FAN connectors
1 x IDE connector
1 x Speaker header
1 x SPDIF out header
6 x Serial ATA connectors
1 x Front panel switch/LED header
1 x Front panel audio header
CD in header
4 x USB 2.0 headers support additional 8 USB ports
SYSTEM BIOS
AMI BIOS with 8Mb SPI Flash ROM
Supports Plug and Play, STR/STD, Hardware monitor, PCI interrupt selection, ACPI & DMI, CPU FSB adjustment (increase of 1MHz)
Audio, LAN, can be disabled in BIOS
F11 hot key for boot up devices option
CPU voltage adjustable
Memory voltage adjustable for DDR2 800
PECI Supports
FORM FACTOR
ATX Size 305mm*244mm
