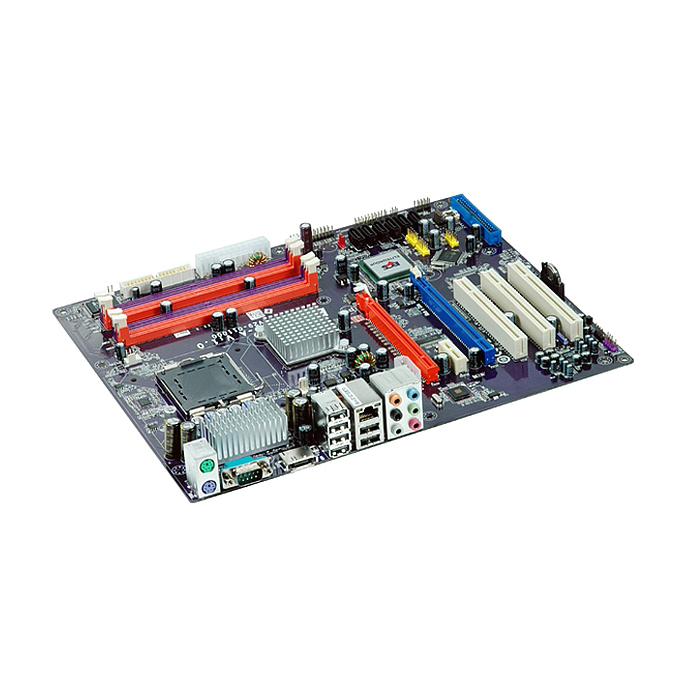

CPU
LGA775 socket for latest Intel® Core 2 Extreme/Core 2 Quad/Core 2 Duo / Pentium Dual-Core Inside (E21xx series)/Celeron D(4xx series) processor
FSB 1333MHz
CHIPSET
Intel® P35 & ICH9DH
North Bridge: Intel® P35
South Bridge: Intel® ICH9DH
MEMORY
Dual-channel DDR2 memory architecture
4 x 240-pin DDR2 DIMM socket support up to 8 GB
Support DDR2 800/667 DDR SDRAM
EXPANSION SLOT
1 x PCI Express x16 slot (Orange)
1 x PCI Express x16 slot (Blue @ x4 bandwidth)
1 x PCI Express x1 slot
3 x PCI slots
STORAGE
Support by Intel® ICH9DH
6 x Serial ATAII 3.0Gb/s devices
Supported by JMicron® JMB361
2 x Ultra DMA133/100/66 devices
1 x External SATA 3.0 Gb/s port
AUDIO
Realtek ALC 883 8-channel audio CODEC (Co-lay ALC888)
LAN
Intel® 82566DC GigaLAN Controller
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
6 x USB ports
1 x External SATA port
1 x Serial port (COM1)
1 x RJ45 LAN connector
1 x Audio port
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x IDE connector
1 x FDD connector supports two 360K~2.88MB FDDs
6 x Serial ATA connectors
3 x USB 2.0 headers support additional 6 USB ports
1 x Clear CMOS header
1 x SPDIF out header
1 x Front panel audio header
1 x Front panel header
1 x CD in header
1 x IrDA for SIR header
1 x JPLC header
1 x LPT1 header
1 x Speaker header
CPUFAN/SYSFAN connectors
SYSTEM BIOS
AMI BIOS with 16Mb SPI ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
ATX Size, 305mm*244mm
