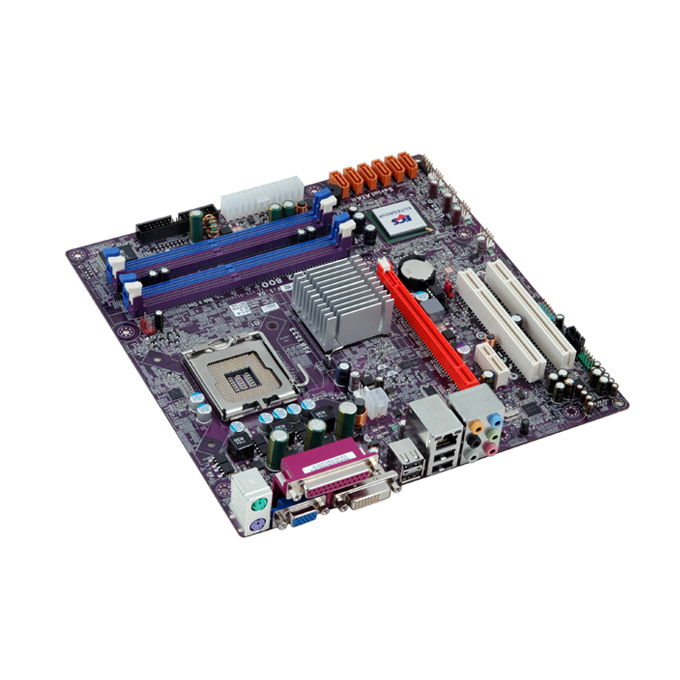

Elitegroup G45T-M2
CPU
FSB 1333/1066/800 MHz
CHIPSET
Intel® Eaglelake G45 & ICH10
North Bridge: Intel® Eaglelake G45
South Bridge: Intel® ICH10
GRAPHICS
Integrated Intel Graphics Media Accelerator X4500HD ( GMA X4500HD )
Integrated DirectX 10 graphics processor
Max Dynamic Video Memory : 1759MB (Vista) / 1GB (WinXP)
MEMORY
Dual-channel DDR2 memory architecture
4 x 240-pin DDR2 DIMM socket support up to 16GB
Support DDR2 800/667 DDR2 SDRAM
EXPANSION SLOT
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
STORAGE
Support by Intel® ICH10
6 x Serial ATAII 3.0Gb/s devices
AUDIO
RealTek ALC888VC 8ch High Definition audio CODEC
LAN
Gigabit LAN, RealTek 8111C GigaLAN controller
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x RJ45 LAN connector
1 x Audio port
1 x VGA port
1 x DVI connector
1 x Parallel port (LPT1)
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
CPUFAN/PWRFAN connectors
1 x SPDIF out header
6 x Serial ATA connectors
1 x Front panel switch/LED header
1 x Front panel audio header
CD in header
4 x USB 2.0 headers support additional 8 USB ports
1 x COM1 header
1 x Clear CMOS header
SYSTEM BIOS
AMI BIOS with 8Mb SPI Flash ROM
Supports STR(S3)& STD(S4)
Supports Plug and Play, STR/STD, Hardware monitor, PCI interrupt selection, ACPI & DMI, CPU FSB adjustment (increase of 1MHz)
Audio, LAN, can be disabled in BIOS
F11 hot key for boot up devices option
Memory voltage adjustable
PECI Supports
FORM FACTOR
Micro-ATX Size, 244mm*244mm
