Дънна платка Elitegroup G41T-M6, G41, LGA775, DDR3, VGA+PCI-E, SB5.1, Lan, SATA, mATX

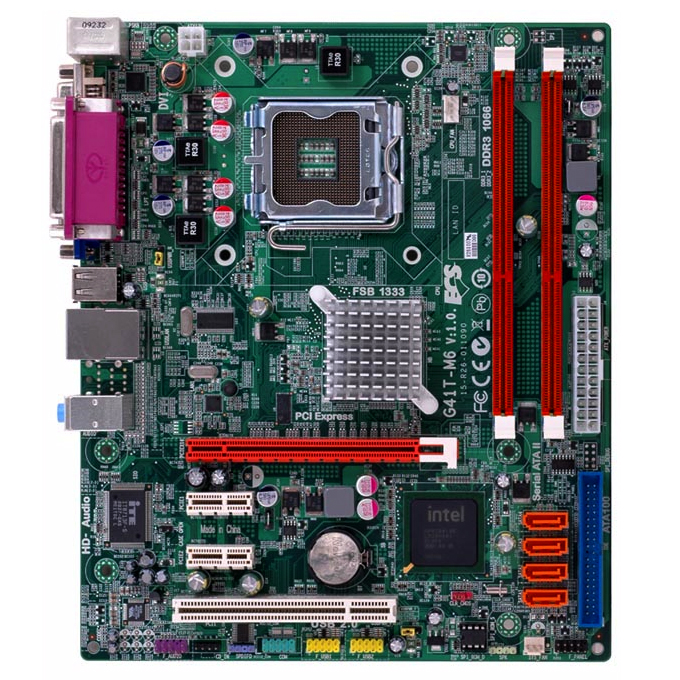

Elitegroup G41T-M6

CPU
LGA775 socket for Core™2 Quad/Core™2 Duo/ Pentium® Dual Core/ Celeron® Dual Core/ Celeron® 400 series processors
LGA775 socket for latest Intel® 45nm Multi-Core processors
FSB 1333/1066/800 MHz

CHIPSET
Intel® G41 & ICH7
North Bridge: Intel® G41
South Bridge: Intel® ICH7

GRAPHICS
Integrated Intel® Graphics Media Accelerator X4500 (GMA X4500)
Integrated DirectX 10 graphics processor

MEMORY
Dual-channel DDR3 memory architecture
2 x 240-pin DDR3 DIMM socket support up to 8 GB

EXPANSION SLOT
1 x PCI Express x16 slot
2 x PCI Express x1 slots
1 x PCI slot

STORAGE
Support by Intel® ICH7
2 x Ultra DMA100/66 devices
4 x Serial ATAII 3.0Gb/s devices

AUDIO
VT 1705 6-Ch High Definition audio CODEC , ALC662/VT 1708 (optional)

LAN
Atheros AR8132 10/100 Lan (Atheros AR8131 Gigabit Fast Ethernet Controller

REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
1 x D-sub(VGA)
1 x Parallel port (LPT)
1 x RJ45 LAN connector
1 x Audio port (Line-in, Line-out, Mic-in)
4 x USB 2.0 Ports

INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x 4-pin CPU_FAN connector
1 x 3-pin SYS_FAN connector
1 x IDE connector
1 x Speaker header
1 x Front panel header
1 x COM header
1 x S/PDIF out header, 1 x CD-in header
1 x CLR COMS
4 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB Ports
1 x Case Open header

SYSTEM BIOS
AMI BIOS with 8Mb SPI Flash ROM
Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Supports ACPI & DMI
Audio, LAN, can be disabled in BIOS
F11 hot key for boot up devices option
Support Page Up clear CMOS Hotkey

FORM FACTOR
Micro-ATX Size, 244mm*204mm
