Дънна платка Elitegroup G41T-M2, G41, LGA775, DDR2, VGA+PCI-E (DVI), SB5.1, Lan1000, SATA, mATX

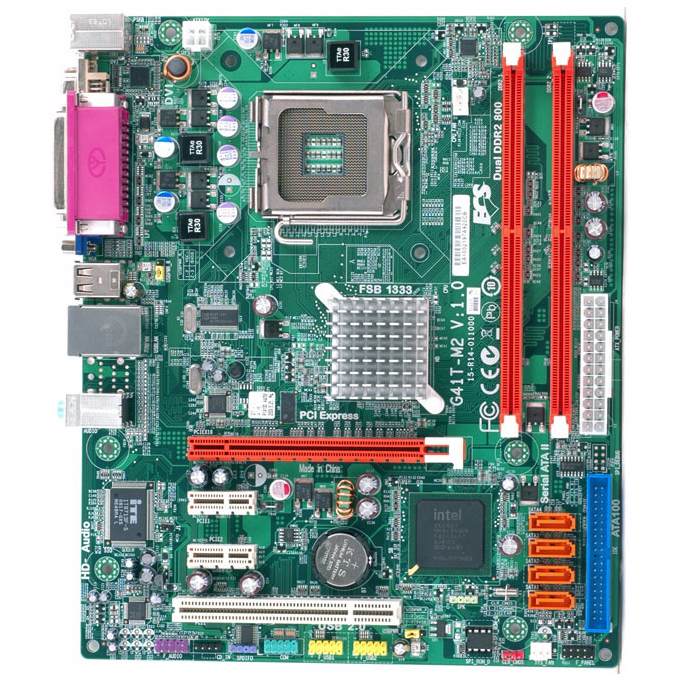

Elitegroup G41T-M2

CPU
LGA775 socket for Core™2 Quad/Core™2 Duo/ Pentium® Dual Core/ Celeron® Dual Core/ Celeron® 400 series processors
LGA775 socket for latest Intel® 45nm Multi-Core processors
FSB 1333/1066 MHz
VRD11.1 compliant for improved energy efficiency

CHIPSET
Intel® G41 & ICH7
North Bridge: Intel® G41
South Bridge: Intel® ICH7

GRAPHICS
Integrated Intel Graphics Media Accelerator X4500 ( GMA X4500 )

MEMORY
Dual-channel DDR2 memory architecture
2 x 240-pin DDR2 DIMM socket support up to 8 GB
Support DDR2 667/800 MHz Memory

EXPANSION SLOT
1 x PCI Express x16 slot
2 x PCI Express x1 slots
1 x PCI slot

STORAGE
Supported by Intel®ICH7
2 x Ultra DMA100/66 devices
4 x Serial ATAII devices

AUDIO
Realtek ALC662 6ch HD Audio(Colay ALC888)

LAN
Realtek RTL8111DL Gigabit Lan (Co-lay RTL8103EL)

REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB 2.0 Ports
1 x VGA port
1 x DVI Port
1 x LPT port
1 x RJ45 LAN connector
1 x Audio port (3 holes jack)

INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply Connector & 4-pin 12V Connector
4 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB Ports
1 x Clear CMOS header
1 x Front panel header
1 x Front panel audio header
1 x SPDIF out header
1 x CD in header
1 x SPK header
1 x COM header
CPUFAN/SYSFAN connectors
1 x Chassis intrusion header

SYSTEM BIOS
AMI BIOS with 8Mb SPI ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification

FORM FACTOR
Micro-ATX Size, 244mm*204mm
