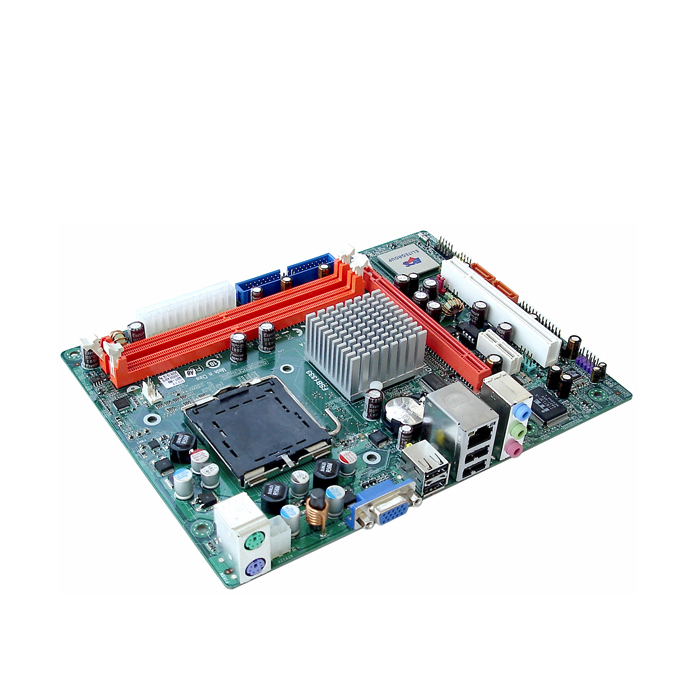

EliteGroup G31T-M9 (V1.0)
ECS smallest G31T-M9 v1.0 motherboard supports Intel® Core 2 Duo processors, and supports FSB up to 1333MHz
ECS G31T-M9 motherboard features the Intel® Bearlake G31 and ICH7 chipsets, by supporting the latest Core 2 Duo processors; ECS G31T-M9 brings outstanding performance without high price tag. G31T-M9 is the smallest form factor for G31 chipset.
CPU
LGA775 socket for Core™2 Duo/ Pentium® Dual Core/ Celeron® Dual Core/ Celeron® 400 series processors
LGA775 socket for latest Intel® 45nm Multi-Core processors
FSB 1333/1066/800 MHz
CHIPSET
Intel® G31 & ICH7
North Bridge: Intel® G31
South Bridge: Intel® ICH7
GRAPHICS
Integrated Intel® Graphics Media Accelerator 3100 (GMA3100)
MEMORY
Dual-channel DDR2 memory architecture
2 x 240-pin DDR2 DIMM socket support up to 4 GB
Support DDR2 667/800 MHz Memory
EXPANSION SLOT
1 x PCI Express x16 slot
1 x PCI Express x1 slot
1 x PCI slot
STORAGE
Supported by Intel®ICH7
2 x Ultra DMA100/66 devices
2 x Serial ATAII 3.0Gb/s devices
AUDIO
VIA® VT1708B 6-channel HD Audio
LAN
Atheros AR8112 10/100 LAN
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x VGA port
1 x RJ45 LAN connector
1 x Audio port (3 holes jack)
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply Connector & 4-pin 12V Connector
1 x IDE connector
2 x Serial ATA connectors
1 x USB 2.0 header support additional 2 USB ports
1 x Clear CMOS header
1 x Front panel header
1 x Front panel audio header
1 x SPK header
1 x LPT header
1 x COM header
1 x CPU_FAN connector
SYSTEM BIOS
AMI BIOS with 4Mb SPI Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
Micro-ATX Size, 225mm*170mm
