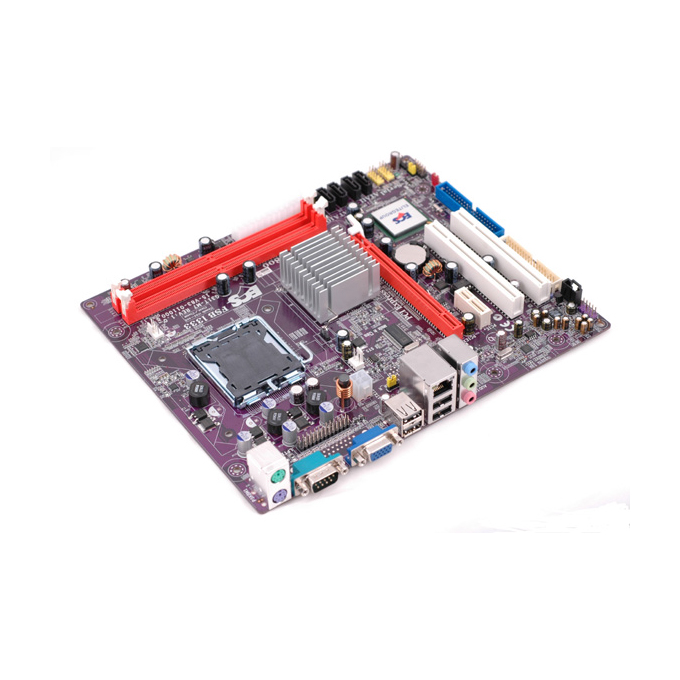

G31T-M7 (V1.0)
ECS G31T-M7 v1.0 motherboard supports Intel® Core 2 Duo processors, and supports FSB up to 1333MHz.
ECS G31T-M7 motherboard features the Intel® Bearlake G31 and ICH7 chipsets, by supporting the latest Wolfdale, Core 2 Quad and Core 2 Duo processors; ECS G31T-M7 brings outstanding performance without high price tag. G31T-M7 supports Intel 45nm Core 2 Duo and Core 2 Quad processors.
Specifications:
CPU
LGA775 socket for latest Intel® Core 2 Quad/Core 2 Duo / Pentium Dual-core (E21xx series)/Celeron 4xx processors
FSB 1333/1066 MHz
CHIPSET
Intel® G31 & ICH7
North Bridge: Intel® G31
South Bridge: Intel® ICH7
GRAPHICS
Integrated Intel® Graphics Media Accelerator 3100 (GMA3100)
MEMORY
Dual-channel DDR2 memory architecture
2 x 240-pin DDR2 DIMM socket support up to 4 GB
Support DDR2 667/800 MHz Memory
EXPANSION SLOT
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
STORAGE
Supported by Intel®ICH7
2 x Ultra DMA 100/66/33 devices
4 x Serial ATAII devices
AUDIO
VIA® VT1708B 6-channel High Definition audio CODEC
LAN
ATHEROS AR8012 10/100 Mbps PHY
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x VGA port
1 x COM Port
1 x RJ45 LAN connector
1 x Audio port
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply Connector & 4-pin 12V Connector
1 x FDD connector supports two 360K~2.88MB FDDs
4 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB Ports
1 x Clear CMOS header
1 x Front panel header
1 x Front panel audio header
1 x SPDIF out header
1 x CD in header
1 x Speaker header
1 x LPT header
CPUFAN/SYSFAN connectors
SYSTEM BIOS
AMI BIOS with 4Mb SPI Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
Micro-ATX Size, 244mm*200mm
