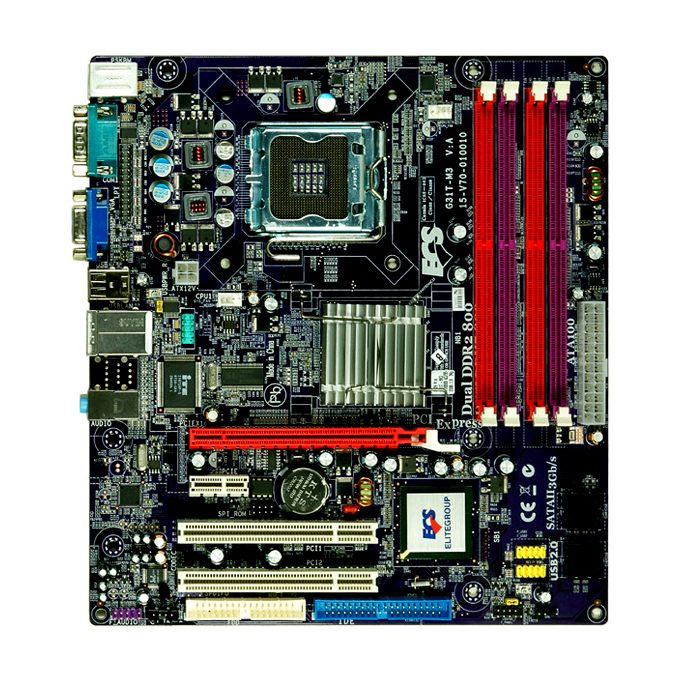

Elitegroup G31T-M3
CPU
LGA775 socket for latest Intel Yorkfield/ Wolfdale/ Core 2 Quad/Core 2 Duo / Pentium Dual-core (E21xx series)/Celeron Dual Core/ Celeron 4xx processors
FSB 1333/1066/800 MHz
CHIPSET
Intel® G31 & ICH7
North Bridge: Intel® G31
South Bridge: Intel® ICH7
GRAPHICS
Integrated Intel® Graphics Media Accelerator 3100 (GMA3100)
MEMORY
Dual-channel DDR2 memory architecture
4 x 240-pin DDR2 DIMM socket support up to 4 GB
Support DDR2 800/667/533 MHz DDR2 Memory
* As for memory support configuration, please refer to ECS Memory support list
EXPANSION SLOT
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
STORAGE
Supported by Intel®ICH7
4 x Serial ATAII 3.0Gb/s devices
2 x Ultra DMA 100/66/33 devices
AUDIO
Realtek ALC 662 6-channel HD Audio (Co-lay ALC 883/888 8-channel HD Audio)
LAN
Realtek 8111B PCI Express Giga LAN Controller (co-lay Realtek 8101C PCI Express 10/100 LAN)
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x VGA port
1 x Serial port (COM1)
1 x RJ45 LAN connector
1 x Audio port (3 jacks audio phone)
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector supports two 360K~2.88MB FDDs
4 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB Ports
1 x Clear CMOS header
1 x Front panel header
1 x Front panel audio header
1 x LPT1 header
1 x Speaker header
1 x SPDIF out header
1 x CD in header
1 x COM port header (COM2)
CPUFAN/SYSFAN connectors
SYSTEM BIOS
AMI BIOS with 8Mb SPI ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
Micro-ATX Size, 244mm*244mm
