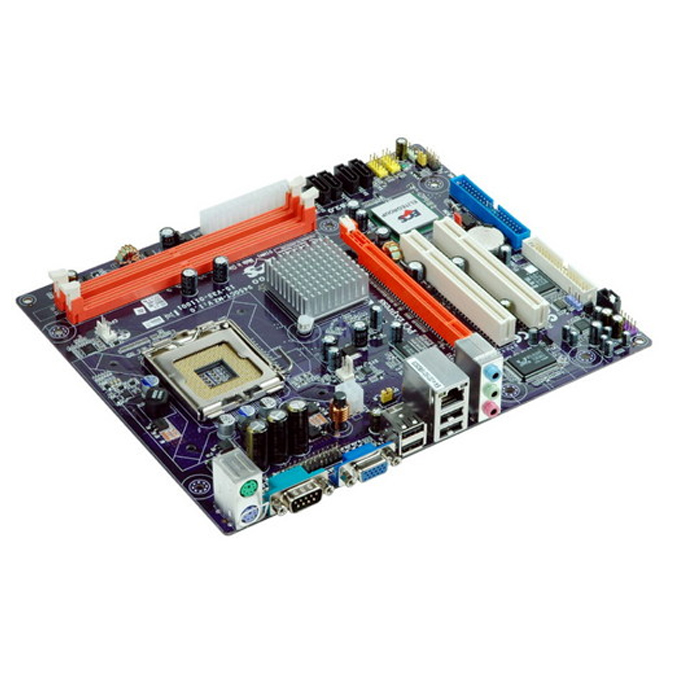

CPU
LGA775 socket for latest Intel® Core™ 2 Duo / Pentium® Dual Core/ Pentium® D / Pentium® 4 / Celeron 4xx series/ Celeron® D processor
FSB 1333*/1066/800/533 MHz
* 945GCT-M2 V1.0A can support FSB1333MHz under specific configuration
CHIPSET
Intel® 945GC & ICH7
North Bridge: Intel® 945GC
South Bridge: Intel® ICH7
GRAPHICS
Integrated Intel® Graphics Media Accelerator 950 ( GMA950 )
Max Dynamic Video Memory up to 224MB(System Memory greater than or equal to 512MB)
MEMORY
Dual-channel DDR2 memory architecture
2 x 240-pin DDR2 DIMM socket support up to 2 GB
Support DDR2 667/533/400 DDR2 SDRAM
EXPANSION SLOT
1 x PCI Express x16 slot
2 x PCI slots
STORAGE
Supported by Intel®ICH7
2 x Ultra DMA100/66 devices
4 x Serial ATAII 3.0Gb/s devices
AUDIO
IDT 92HD202 6-channel High Definition Audio Codec
LAN
Realtek RTL8100C 10/100 Mbps Fast Ethernet Controller
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x VGA port
1 x Serial port (COM1)
1 x RJ45 LAN connector
1 x Audio port (3 jacks audio phone)
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector supports two 360K~2.88MB FDDs
4 x Serial ATA connectors
1 x IDE connector
1 x SPDIF out header
2 x USB 2.0 headers support additional 4 USB Ports
1 x Clear CMOS header
1 x Front panel header
1 x Front panel audio header
1 x CD in header
CPUFAN/SYSFAN connectors
SYSTEM BIOS
AMI BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
Micro-ATX Size, 244mm*200mm
