Name: UPS Eaton 9E 11000i Rack6U 9E11KIR, 11000VA/10000W, On-line, Rack
Brand: Eaton
SKU: UPSEATON9E11KIR
Price: 3410.41 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

Eaton 9E 11000i Rack6U

9E11KIR

Specification	Value
Product Length/Depth	699 mm
Product Height	260 mm
Product Width	440 mm
Product Weight	76.9 kg
Compliances	LVD Directive (CB) EMC Directive RoHS Directive REACH WEEE Directive Packaging Directive Batteries Directive
Certifications	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm Ukr
Model Code	Eaton 9E 11000i Rack6U
Auto shutdown function	Yes
Color	Black
Construction type	482.6 mm (19 inch) device
Efficiency at max. load	95
Hot swap power	No
Internal bypass	Yes
Package contents	UPS USB cable Rack-mounting kit (rails and brackets) Safety instructions Quickstart guide
Phase (input)	1
Phase (output)	1
Rack mounting kit	Yes
Battery management	Temperature compensated charging method Automatic battery test Deep discharge protection
Battery quantity	20
Battery replacement	Hot-swappable internal batteries and extended battery modules (EBMs)
Battery type	Sealed, lead-acid
Extended battery capability	Yes
Runtime graph

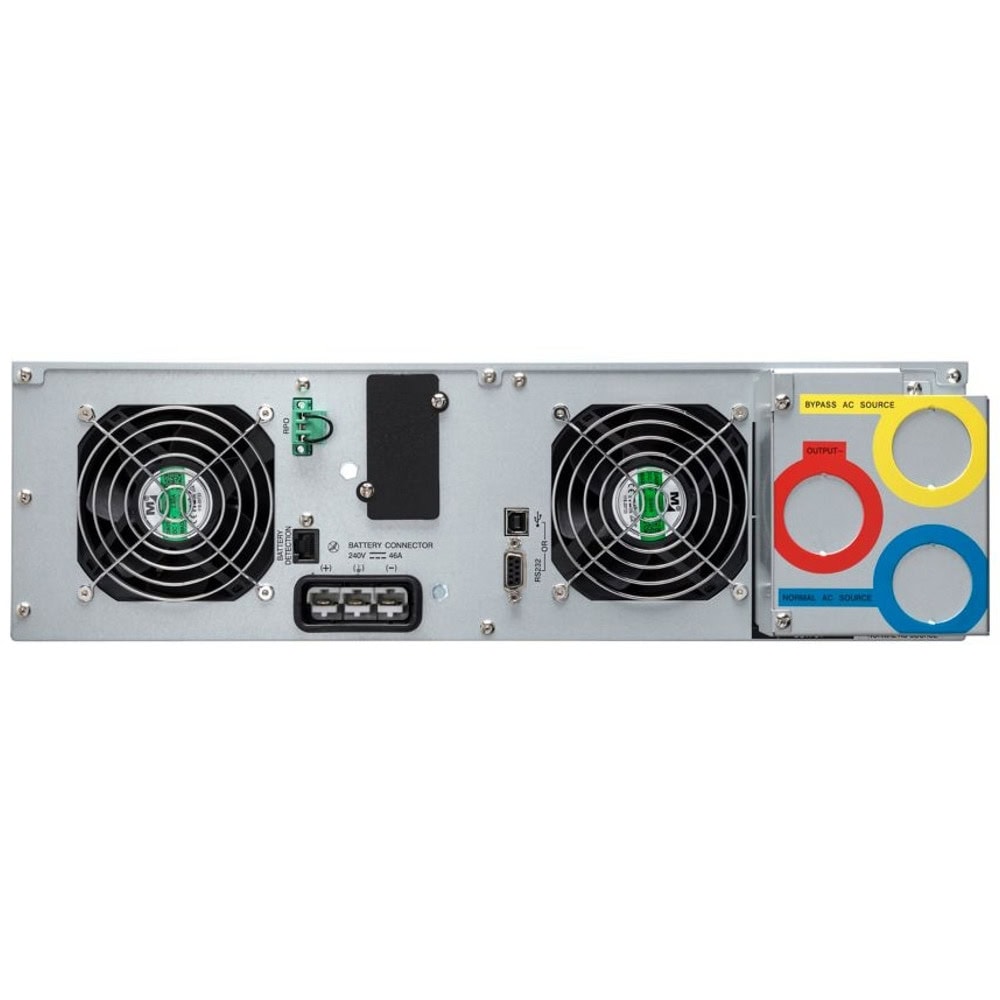

Communication	USB port (HID compliant) Serial port (RS232) Mini-terminal block for remote power off
Ethernet interface	No
Expansion slots	One slot for optional communication card
Includes network card	No
Potential free switch contact	Yes
Software compatibility	Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Type of interface	Other

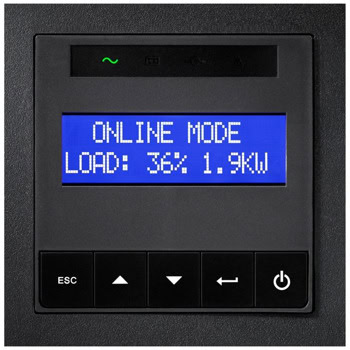

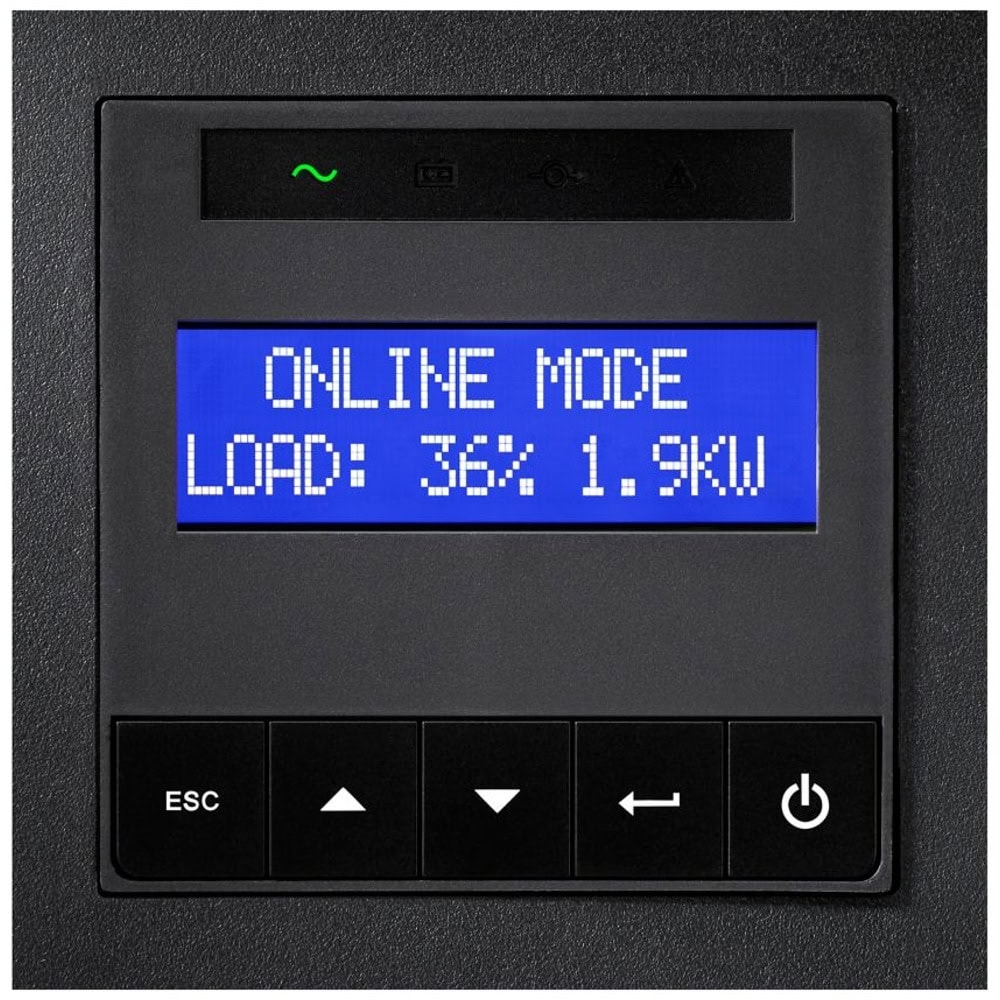

User interface	Multilingual LCD display
Input connection	Hardwired/fixed connection
Input frequency range	40-70 Hz
Input nominal voltage	230V default (200/208/220/230/240/250V)
Input power factor	>.99
Input voltage range	176-276 V (100-276 V with derating)
Nominal frequency	50/60 Hz
Feed type	1
Output nominal voltage	230V default (200/208/220/230/240/250V)
Output power factor	0.9
Output voltage range	200/208/220/230/240/250 V +/- 1%
Output waveform	Sine wave
Receptacle	Hardwired
Topology	Online/Double-conversion
VA rating	11 kVA
Voltage distortion output (linear load) - max	2
Wattage	10 kW
Altitude	3000 m
Noise level	<50 dB at 1 meter
Relative humidity	0-95% non-condensing
Temperature range	0° to 40°C (32° to 104°F)
