Name: UPS Eaton 5P 650i Rack 1U Netpack Li-Ion G2, 650VA/520W, Line-Interactive, Rack
Brand: Eaton
SKU: UPSEATON5P650IRNG2L
Price: 1127.50 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

Eaton 5P Gen2 Lithium UPS, 650 VA, 520 W, Input: C14, Outputs: (6) C13, Rack, 1U, Network card

Feature / Property	Value
Product Length/Depth	361 mm
Product Height	43.2 mm
Product Width	438 mm
Product Weight	8.1 kg
Compliances	WEEE Directive, Packaging Directive, Batteries Directive, LVD Directive (CB), EMC Directive, RoHS Directive, ENERGY STAR certified
Certifications	IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, CE, Cm, Ukr, KCC, cTUVus, RCM
Model Code	Eaton 5P650i Rack 1U Netpack Li-Ion G2
Color / Enclosure	Black/silver
Construction type	482.6 mm (19 inch) device
Efficiency at max. load	98.8
Form factor	Rack
Phase (input / output)	1 / 1
Rack mounting kit	Yes
Rack size	1U
Battery management	Advanced BMS (Battery Management System)
Battery quantity	12
Battery rating	9Ah
Battery type	Lithium-ion
Extended battery capability	No
Communication	USB port (HID compliant), Serial port (RS232), Mini-terminal block for remote On/Off and Remote Power Off
Ethernet interface	Yes
Expansion slots	One slot, network card included
Potential free switch contact	Yes
Software compatibility	Eaton Brightlayer Software suite

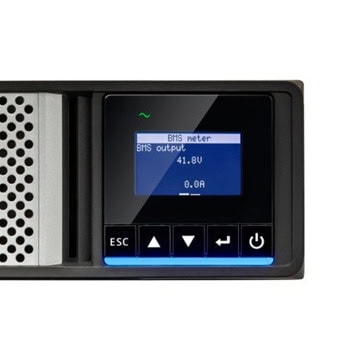

Type of interface	LCD Display with blue backlight
Input connection	C14
Input frequency range	47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
Input Nominal Voltage	230V default (200/208/220/230/240V)
Input voltage range	160-300 V (adjustable to 150 V-300 V)
Nominal frequency	50-60 Hz
Output frequency	50/60 Hz
Output nominal voltage	230V default (200/208/220/230/240V)
Output voltage range	230 V (+6%/-10%)
Topology	Line-interactive
Voltage	230V
Wattage	520 W
Altitude	3000 m
Noise level	<30 dB at 1 meter
Relative humidity	0-95% non-condensing
Temperature range	0° to 40°C (32° to 104°F)
BTU Rating	Online: 22, Battery: 284 BTU/hr
