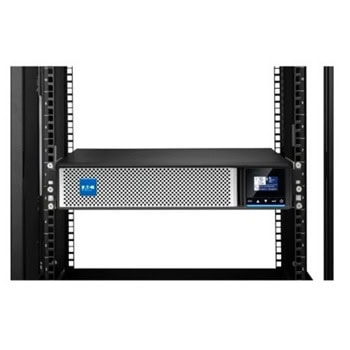

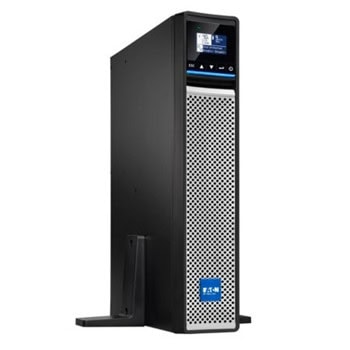

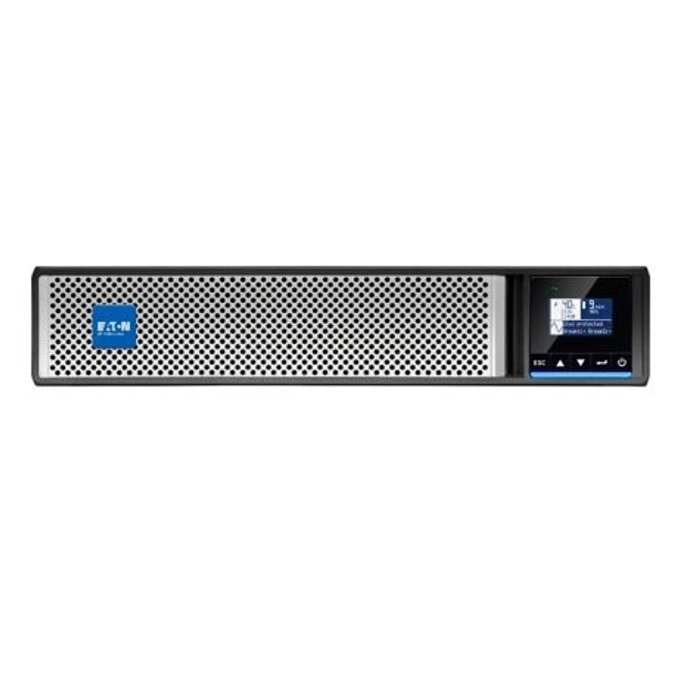

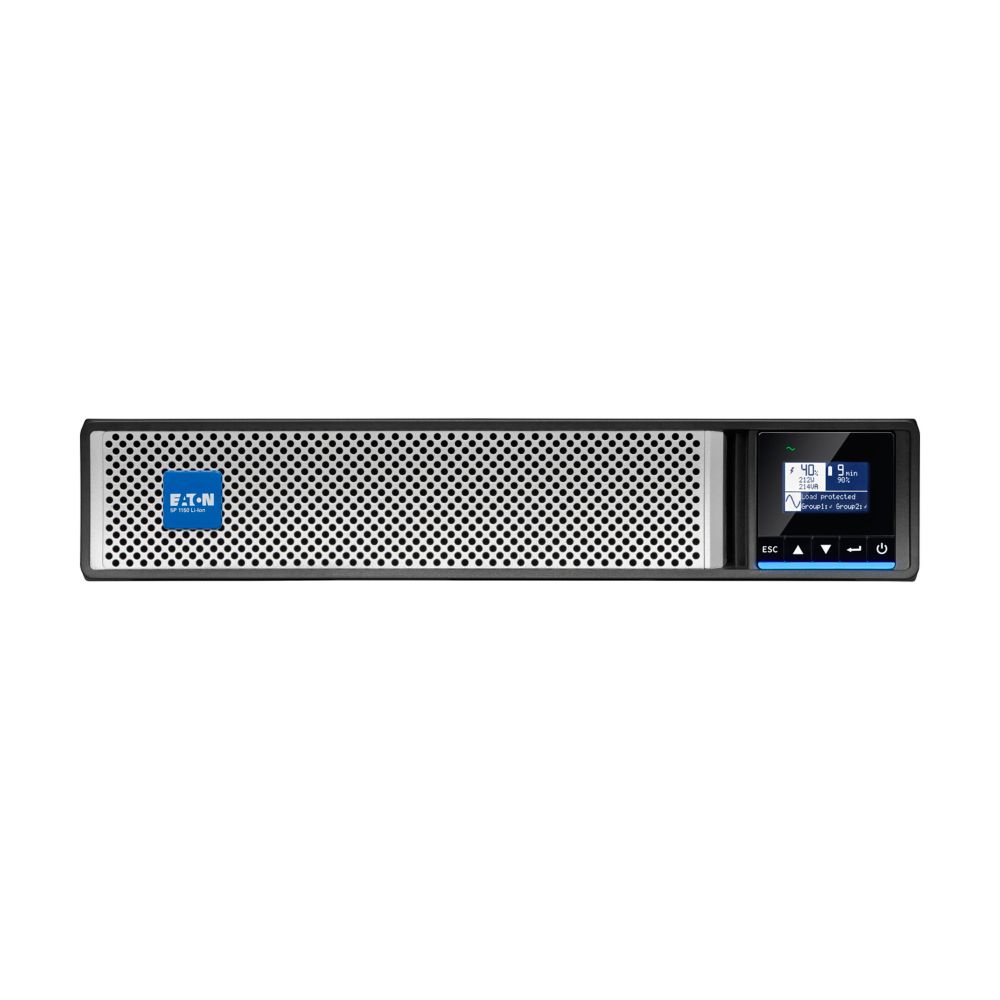

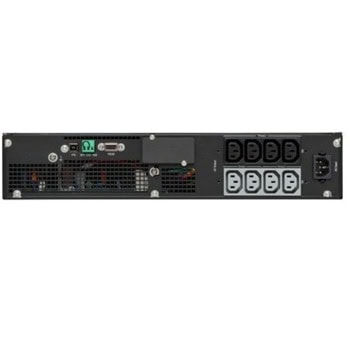

Name: UPS Eaton 5P1150i RT 2U Netpack Li-Ion G2, 1150VA/920W, Line-Interactive, Rack
Brand: Eaton
SKU: UPSEATON5P1150IRT2UNG2L
Price: 1887.98 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

Eaton 5P1150i RT 2U Netpack Li-Ion G2

Feature / Property	Value
Product Length/Depth	360 mm
Product Height	85.5 mm
Product Width	438 mm
Product Weight	13.1 kg
Compliances	WEEE Directive Packaging Directive Batteries Directive LVD Directive (CB) EMC Directive RoHS Directive ENERGY STAR certified
Certifications	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE Cm Ukr KCC cTUVus RCM
Model Code	Eaton 5P1150i RT 2U Netpack Li-Ion G2
Color / Enclosure	Black/silver
Construction type	482.6 mm (19 inch) device
Efficiency at max. load	98.5
Form factor	Rack/tower
Phase (input)	1
Phase (output)	1
Rack mounting kit	Yes
Rack size	2U
Battery management	Advanced BMS (Battery Management System)
Battery quantity	24
Battery rating	6Ah
Battery type	Lithium-ion
Extended battery capability	No
Runtime graph	View runtime graph
Communication	USB port (HID compliant) Serial port (RS232) Mini-terminal block for remote On/Off and Remote Power Off
Ethernet interface	Yes
Expansion slots	One slot, network card included
Potential free switch contact	Yes
Software compatibility	Eaton Brightlayer Software suite
Type of interface	LCD Display with blue backlight
Input connection	C14
Input frequency range	47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
Input Nominal Voltage	230V default (200/208/220/230/240V)
Input voltage range	160-300 V (adjustable to 150 V-300 V)
Nominal frequency	50-60 Hz
Output frequency	50/60 Hz
Output nominal voltage	230V default (200/208/220/230/240V)
Output voltage range	230 V (+6%/-10%)
Topology	Line-interactive
Voltage	230V
Wattage	920 W
Altitude	3000 m
Noise level	<30 dB at 1 meter
Relative humidity	0-95% non-condensing
Temperature range	0° to 40°C (32° to 104°F)
BTU Rating	Online: 48, Battery: 420 BTU/hr
