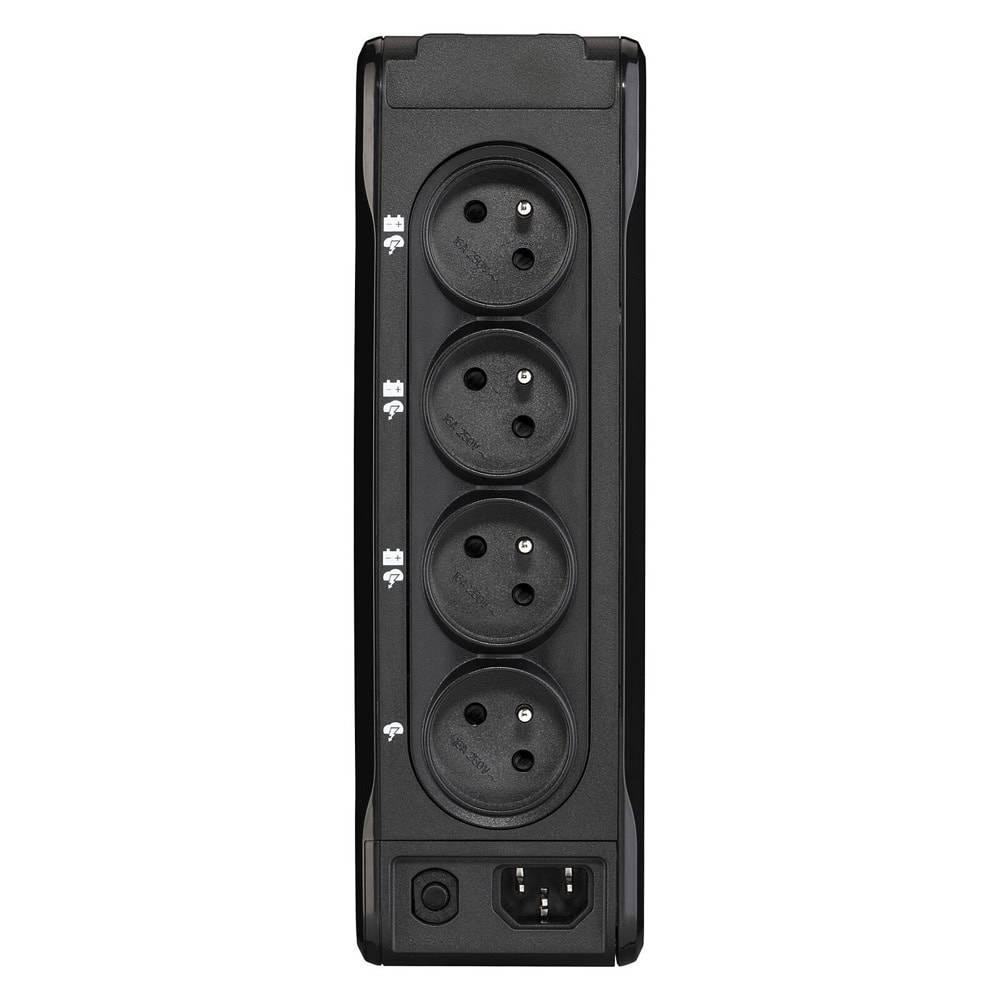

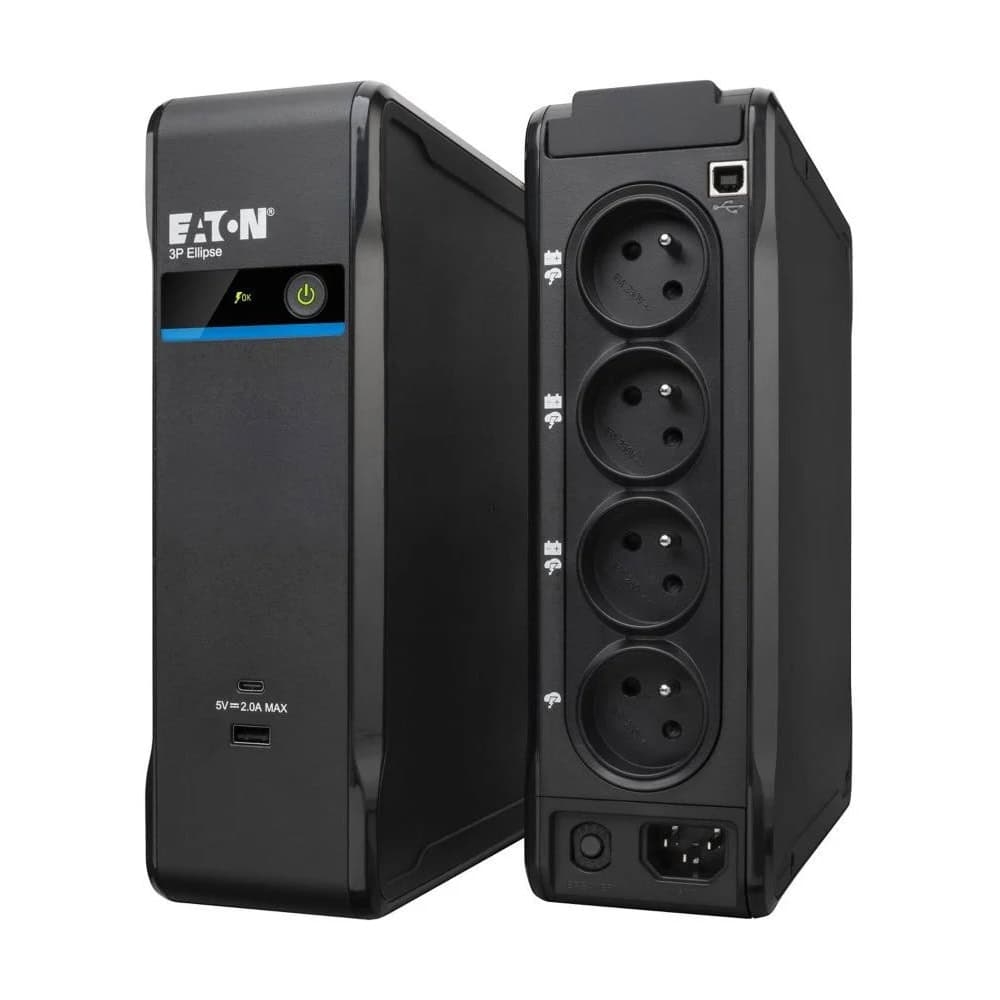

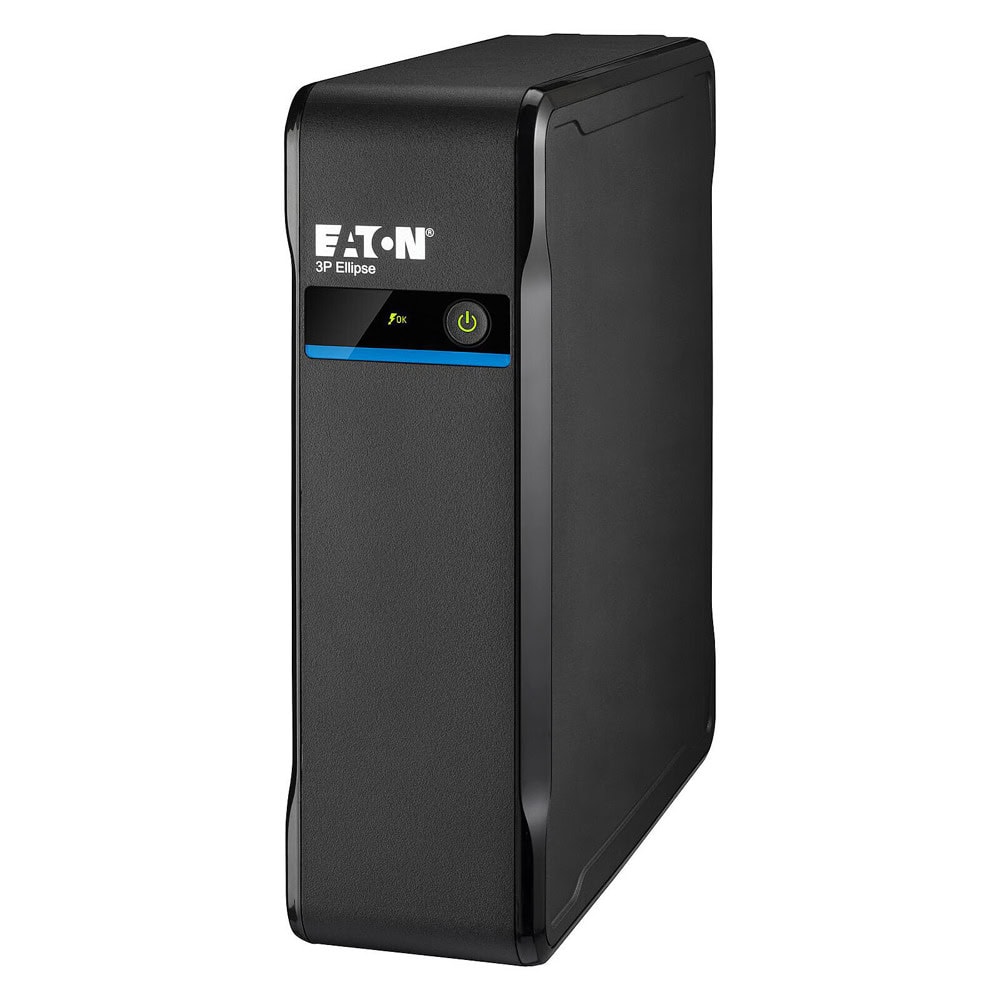

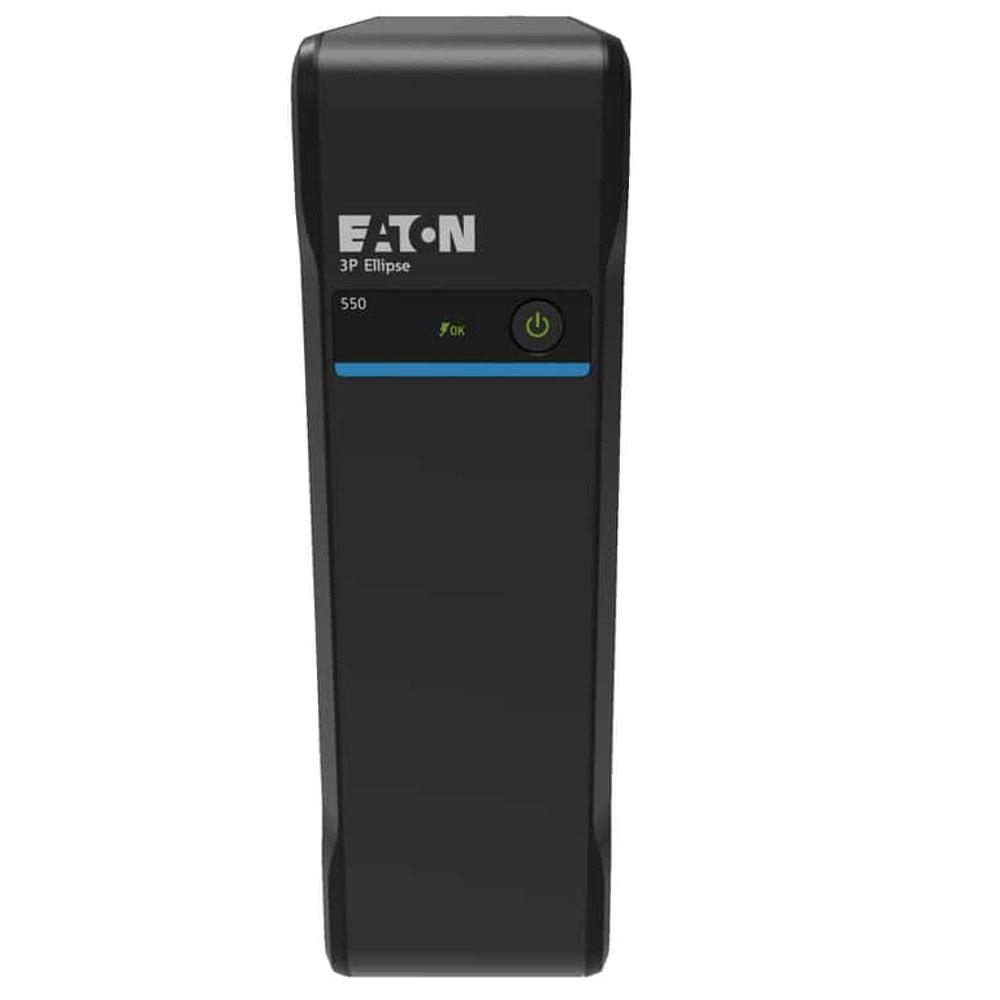

UPS Eaton 3P Ellipse 550 DIN, 550VA/330W, OFF Line, Tower

Eaton Tower, 550 VA, 330 W, 230 V, 12 V / 4.5 Ah, LED display, 25 dB, 81 x 235 x 263 mm, black

Eaton 3P Ellipse UPS
Stay protected – work and play worry-free

The 3P Ellipse UPS is Eaton’s latest addition to its power protection solution portfolio. Sleek, attractively designed and silent in operation, this compact UPS offers an exceptional user experience for backup power in both residential and small business settings.

Power up with confidence
Enjoy up to 12% more power than the previous Ellipse ECO models and a typical runtime of 15 to 20 minutes, ensuring you can handle disruptions smoothly. Save yourself the hassle and the need for additional adapters, by plugging your equipment directly into the UPS using FR, DIN/IT, and IEC outlet options. This unique feature in a predominantly IEC-only market ensures convenience. Operate any device with confidence, thanks to the built-in surge protection that meets the high-level IEC 61643-11 standards.

Designed for your space

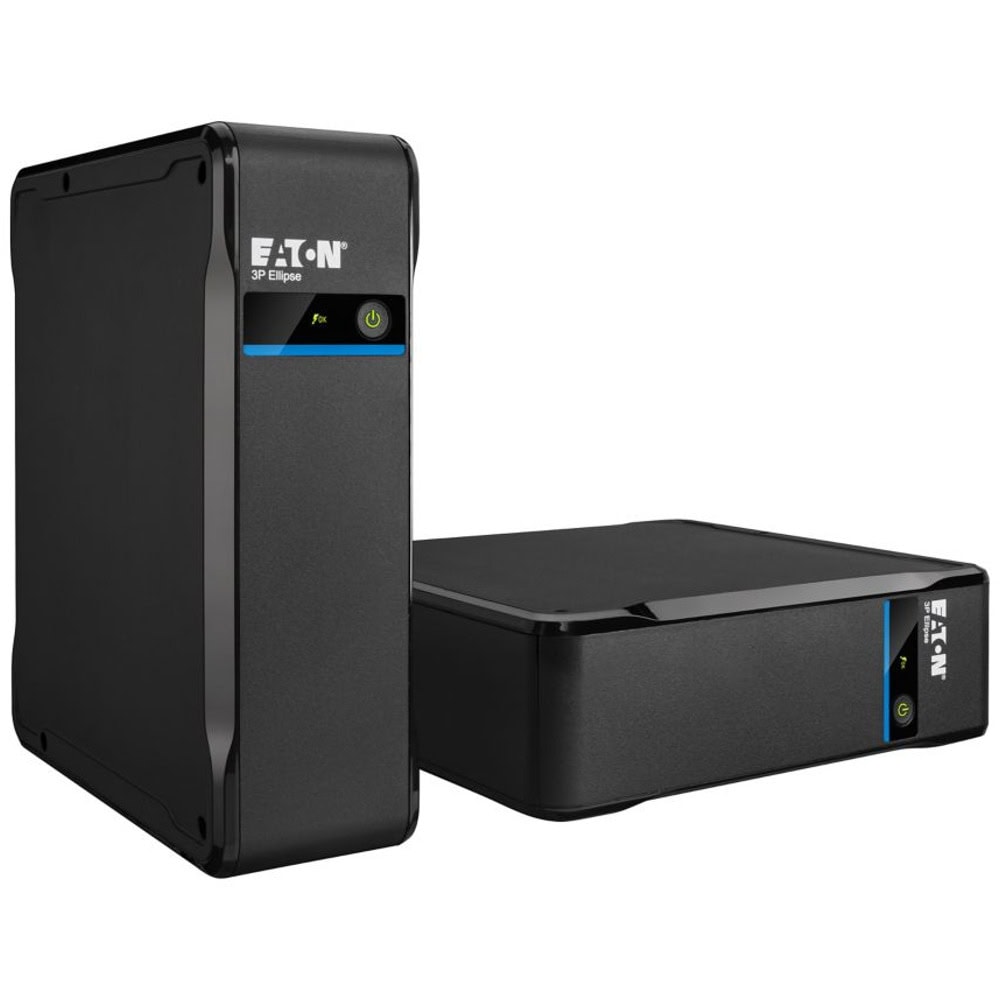

Complement any interior with 3P’s contemporary good looks that also come with versatile usability. Flexible, multi-position design allows the UPS to fit seamlessly into any environment horizontally, vertically, as well as rack or wall-mounted (with optional kits). Charge mobile devices whenever you need to using 3P’s choice of USB-A and USB-C charging ports. Watch, listen or work without distraction. Enjoy a silent user experience in both residential and business settings thanks to 3P’s discreet, no-fan engineering.

Control at your fingertips
Access status and notifications in real time via mobile app or web browser with an optional CLOUDPS card. With remote now the ‘new normal’ for many small businesses, cloud connectivity brings added control and peace of mind from any location.

Specifications for 3P550D

Battery

Battery capacity

4.5 Ah

Battery Technology

Valve-Regulated Lead Acid (VRLA)

Battery voltage

12 V

Certificates

Certification

CE, Cm, IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, UKCA

Compliance certificates

CB, CE, RoHS, WEEE

Waste Electrical and Electronic Equipment (WEEE) compliance

Yes

Design

Display type

LED

Form factor

Tower

Product colour

Black

Features

Auto shut-off

No

Efficiency

97 %

Efficiency (ECO mode)

97 %

Input frequency

46/70 Hz

Input operation voltage (max)

284 V

Input operation voltage (min)

161 V

Noise level

25 dB

Number of input phases

1

Number of output phases

1

Output frequency

50/60 Hz

Output operation voltage (max)

284 V

Output operation voltage (min)

161 V

Output power

330 W

Output power capacity

0.55 kVA

Output power factor

0.6

Power consumption (average operating)

10.2 W

Surge protection

Yes

UPS topology

Standby (Offline)

Waveform

Stepwise

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Other features

Input connection type

C14

Nominal input voltage

220-240 V

Relative humidity

0 - 95 %

Packaging content

Rack mount kit

No

Ports & interfaces

AC outlet types

C3 coupler

AC outlets quantity

4 AC outlet(s)
