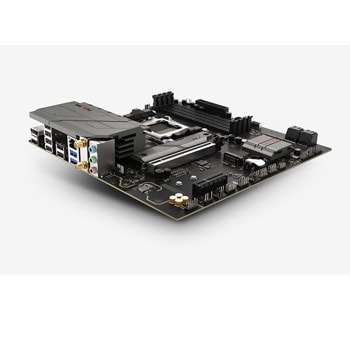

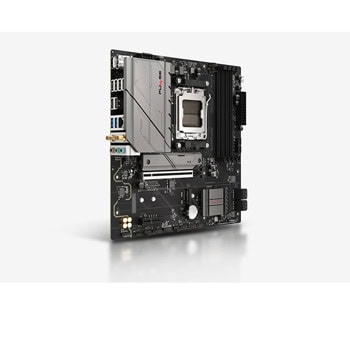

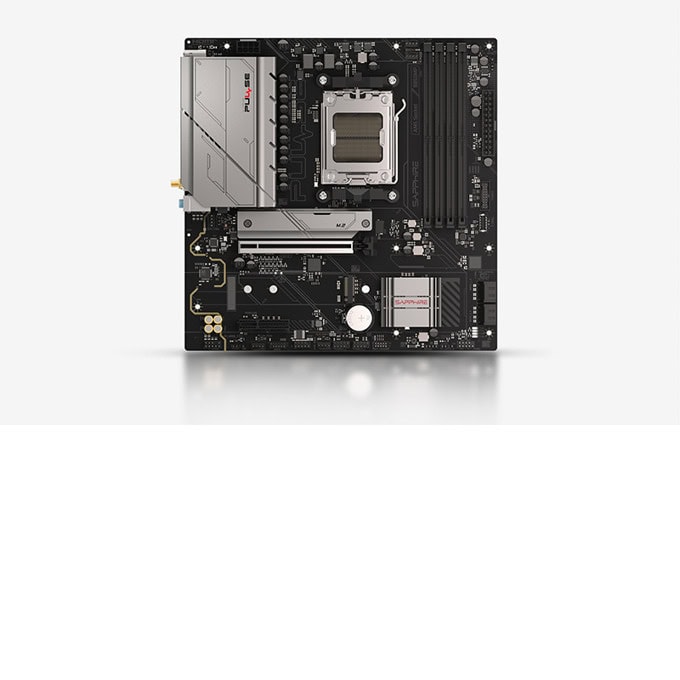

Дънна платка SAPPHIRE PULSE B850M WIFI, B850, AM5, DDR5, 1x PCI-E 4.0 (DP&HDMI), 2x M.2, 4x SATA, 1x USB 3.2 Gen 1, LAN 2.5 Gigabit, WiFi 6, Bluetooth 5.3, Micro-ATX

Chipset

AMD® B850

CPU Support

Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Memory Support

4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 7600 MHz(OC)

PCI-E Expansion Slots

1x PCIe 4.0 x16, 1x PCIe 4.0 x4

Display Connector

DisplayPort x1, HDMI x1

Audio

Realtek® ALC897 HD Audio, 5.1 Channel

Network

Realtek® RTL8125BG 2.5 Gigabit Ethernet
M.2 WiFi 6 Module, Support 802.11 a/b/g/n/ac/ax, 2.4 GHz/ 5 GHz band, Bluetooth 5.3 Support

Front USB Headers

1x USB 3.2 Gen1 (1 x Type-C), 1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A)

Rear Ports

1× HDMI™, 1× DisplayPort, 6× USB 2.0, 2× USB 3.2 Gen1 Type-A
1× RJ45 LAN, 2× Wi Fi Antennas, 3× Audio Jacks

Storage

1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, 4x SATA

Dimensions

Micro-ATX, 244x244mm

Debug LED

DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
