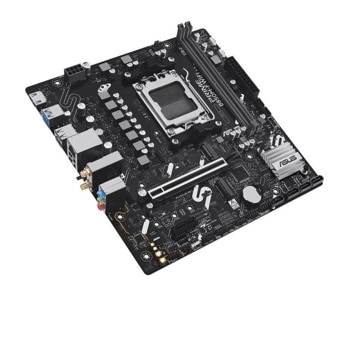

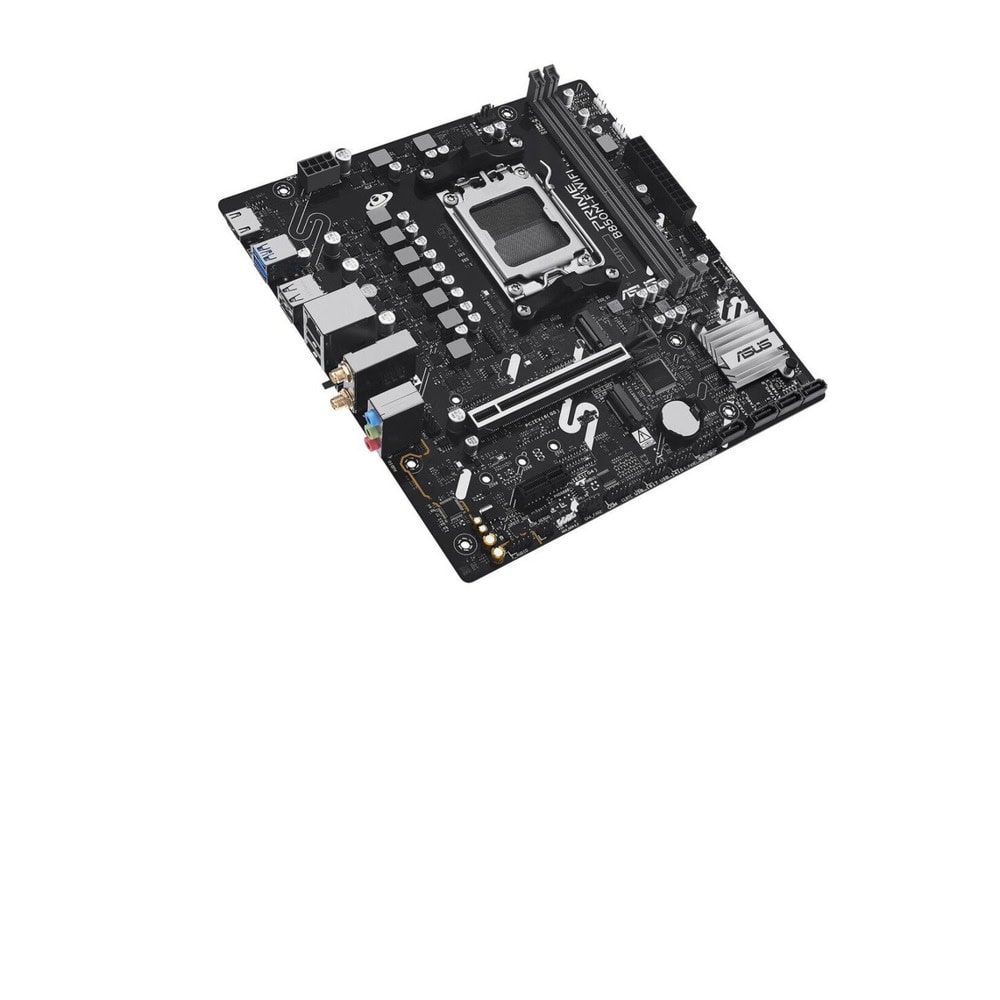

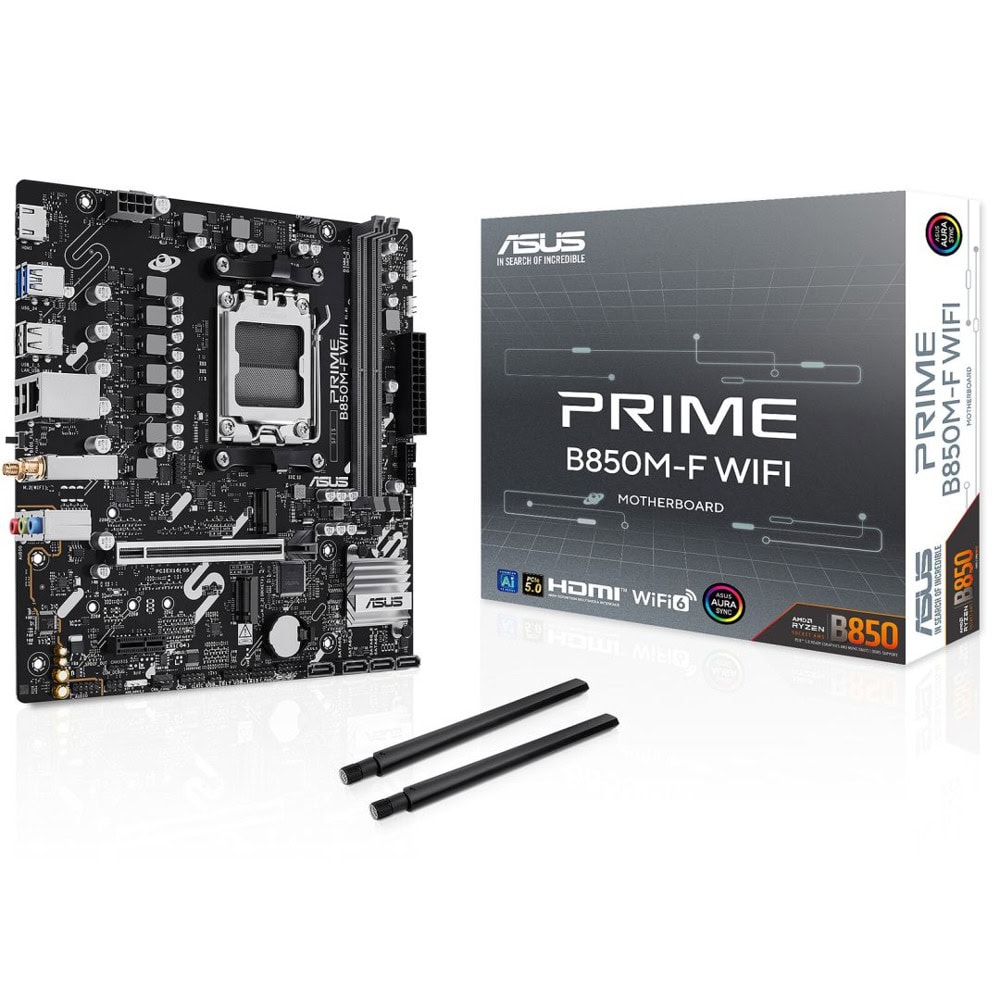

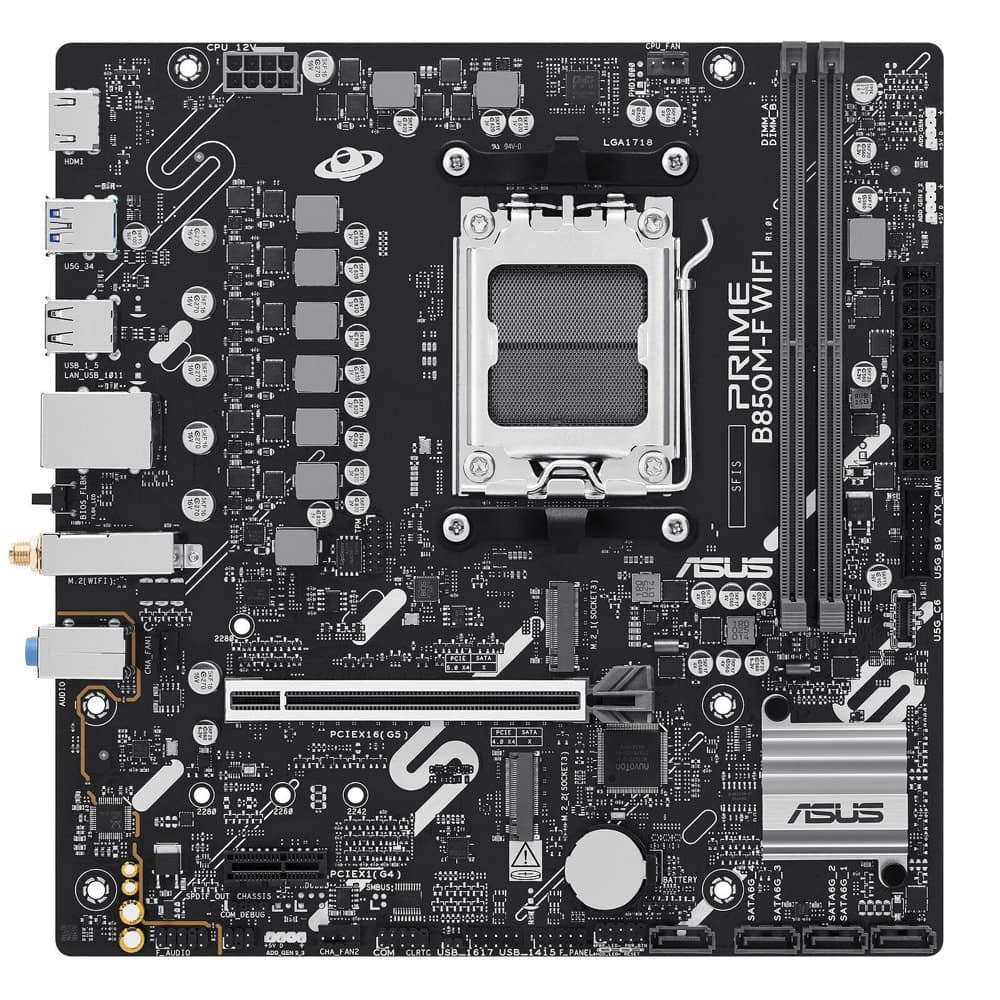

Дънна платка ASUS PRIME B850M-F WIFI, B850, AM5, DDR5, 1xPCI-E 5.0(DP & HDMI), 2xM.2, 4xSATA 6Gb/s,USB C 3.2 Gen 2, Wi-Fi 6, Bluetooth 5.3, Micro ATX

Socket:
AMD AM5

Graphics:

Integrated graphics support via compatible AMD Ryzen processors; 1 x HDMI, 2 x DisplayPort

CPU's supported:

AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors

Chipset:
AMD B850

Expansion slots:

1 x PCIe 5.0 x16, 1 x PCIe x4, 1 x PCIe x1

Storage:

2 x M.2 (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4), 4 x SATA 6Gb/s

RAID:

AMD RAID 0, 1, 10

Memory type:

DDR5, 2 x DIMM Slots, Max. 128GB, Dual-Channel, up to 8400 MT/s (OC)

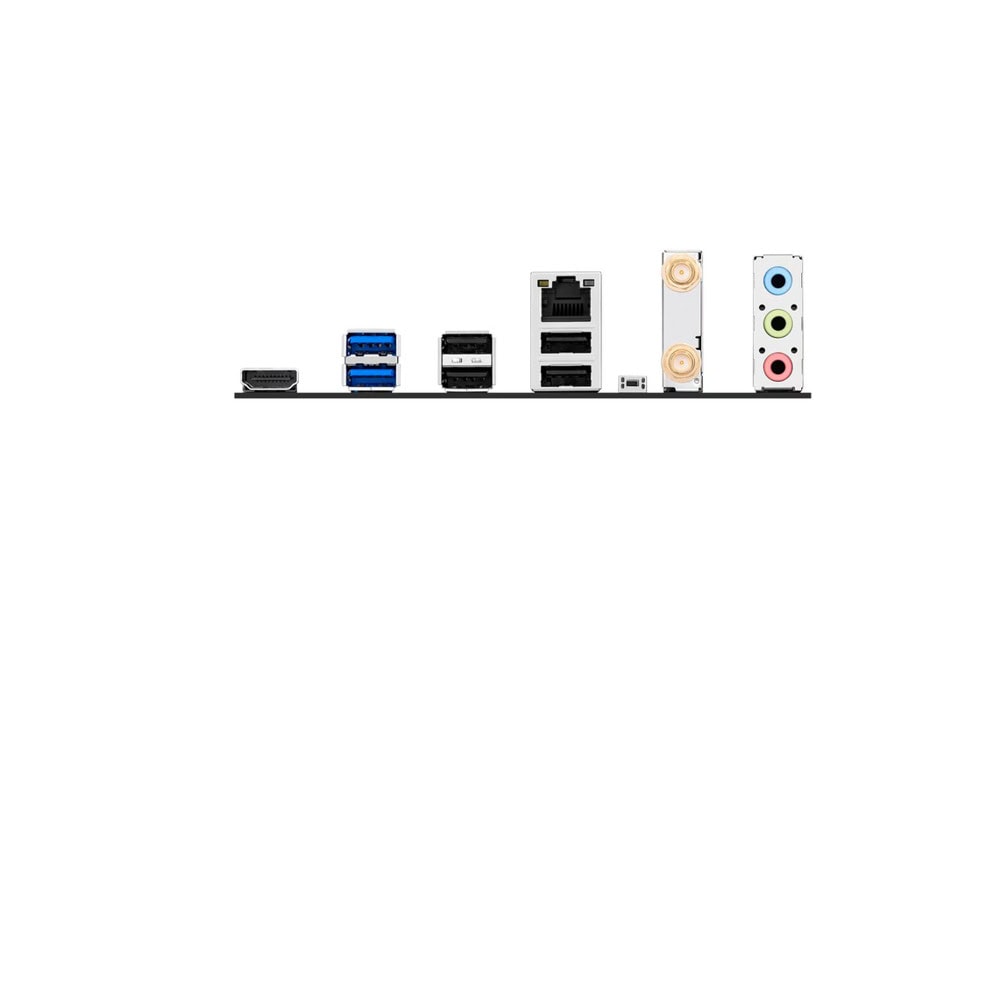

Rear panel I/O:

1 x HDMI, 2 x DisplayPort, 1 x RJ-45, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A, 3 x Audio Jacks, 1 x BIOS FlashBack Button, Wi-Fi Antenna Connections

USB:

Rear: 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A; internal USB headers also supported

Connectors:

1x 24-pin ATX Power, 1x 8-pin CPU Power, 1 x4-pin CPU Power, 2 x M.2, 4 x SATA 6Gb/s, Fan Headers, Front Panel Audio, USB Headers, Addressable RGB Headers, System Panel

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

Lan:

Realtek 2.5Gb Ethernet, ASUS LANGuard

Wireless:

Wi-Fi 6 (802.11ax)

Bluetooth:

Bluetooth 5.3

BIOS:

256Mb Flash ROM, UEFI AMI BIOS, BIOS FlashBack, ASUS EZ Flash 3, CrashFree BIOS 3

Form factor:

Micro-ATX

OS:

Windows 11 64-bit, Windows 10 64-bit

Dimensions:

226 x 221–222 mm
