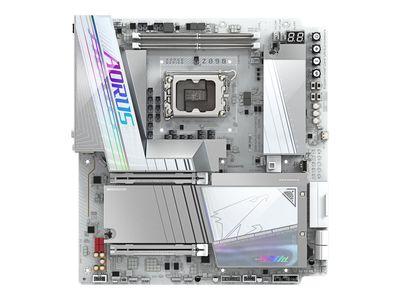

Name: Дънна платка AORUS Z890 TACHYON ICE - motherboard - extended ATX - LGA1851 Socket - Z890
Price: 657.42 EUR
Availability: InStock

Описание

Общи Характеристики
Packaged Quantity	1
Процесор
Installed Qty	0
Max Supported Qty	1
Дънна платка
Form Factor	Extended ATX
Chipset Type	Intel Z890
Supported RAM Technology	DDR5 SDRAM
Supported RAM Integrity Check	Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed	9200 MT/s (O.C.), 7200 MT/s (O.C.), 5600 MT/s, 8000 MT/s (O.C.), 8200 MT/s (O.C.), 7000 MT/s (O.C.), 6800 MT/s (O.C.), 9500 MT/s (O.C.), 6400 MT/s, 8400 MT/s (O.C.), 6600 MT/s (O.C.), 7400 MT/s (O.C.), 7600 MT/s (O.C.), 7800 MT/s (O.C.), 7900 MT/s (O.C.), 7950 MT/s (O.C.), 5800 MT/s, 6000 MT/s, 6200 MT/s, 8266 MT/s (O.C.), 8600 MT/s (O.C.), 8800 MT/s (O.C.), 8933 MT/s (O.C.), 9066 MT/s (O.C.), 9333 MT/s (O.C.), 9466 MT/s (O.C.)
Processor Socket	LGA1851 Socket
Power Connectors	24-pin main power connector, 2 x 8-pin ATX12V connectors
Supported RAM (Registered or Buffered)	Unbuffered
RAM Slots	2 DIMM slots
Интерфейси
Internal Interfaces	1 x Thunderbolt 4 - header, 1 x USB-C 3.2 Gen 2 - header, 1 x audio - header, 2 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header
RAM
Features	Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size	128 GB
Видео изход
Type	Graphics adapter (CPU required)
Аудио изход
Type	Sound card
Compliant Standards	High Definition Audio
Audio Codec	Realtek ALC1220
Audio	High Definition Audio (8-channel)
Работа в мрежа
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet
Network Controller	Realtek RTL8922AE
Network	802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet
Слотове за разширение
Expansion Slots	1 x CPU, 1 x PCIe 5.0 x16, 1 x PCIe 5.0 x8, 2 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot), 2 x M.2 socket (22110/2280), 4 x DIMM 288-pin
Интерфейси
Storage Interfaces	PCIe 4.0 -connectors: 3 x M.2, PCIe 5.0 -connectors: 1 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage	Serial ATA-600 (RAID), M.2 socket
USB / FireWire	USB 3.2 Gen 1, USB4, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2
Storage Ports	4 x SATA-600 (RAID), 4 x M.2
USB / FireWire Ports Configuration (Active)	1 x USB-C 3.2 Gen 2x2 + 5 x USB 3.2 Gen 2
USB / FireWire Ports Configuration (Headers)	1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
Софтуер
Software Included	GIGABYTE Control Center, Norton Internet Security (OEM Version)
Размери и Тегло
Width	30,5 cm
Depth	28,5 cm
