Докинг станция Dell Pro Thunderbolt 4 Dock, от Thunderbolt 4 към 2 x Thunderbolt 4, 2x USB C, 4x USB A, 2x DisplayPort, 1x HDMI, 1x RJ45, черна

Dell Pro Thunderbolt 4 Dock - WD25TB4

Drive unmatched power to your workspace with the latest Thunderbolt 4 dock, featuring up to 130W power delivery.

Power AI productivity

Maximise your AI PC productivity by seamlessly using Gen AI tools across up to four 4K 60Hz displays. Stay powered with up to 130W power delivery and connect all your peripherals effortlessly.

Accelerate manageability

Enhance IT efficiency across the modern workspace.

Improved sustainability

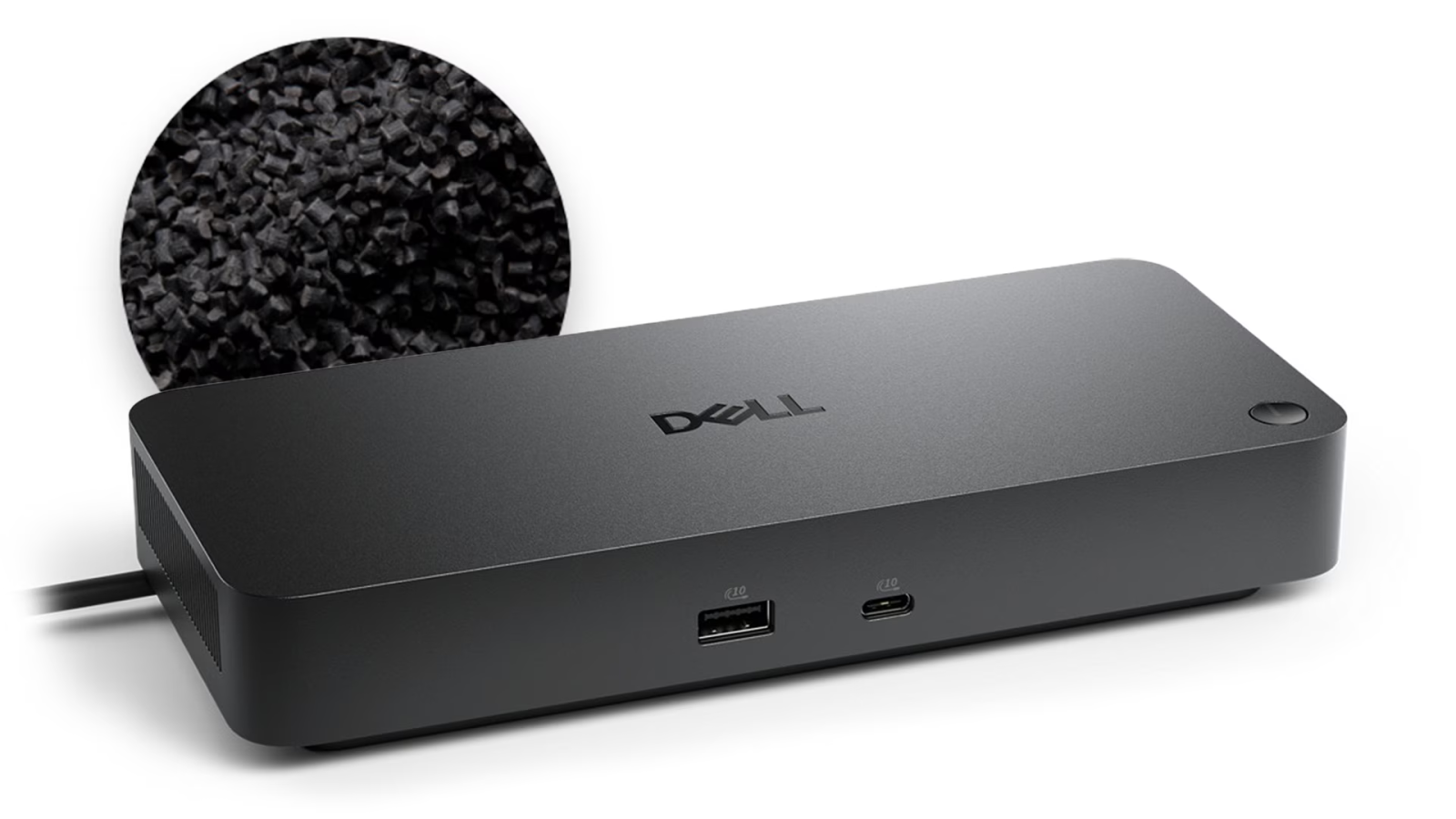

The new generation of Dell Pro Docks reflect a commitment to sustainable design innovation to reduce environmental impact. The WD25TB4 is built with sustainable materials and packaged with at least 65% post-recycled content (PCR) plastic and 100% recycled or renewable packaging

Tech Specs

Technical Information

Connectivity Technology

Wired

Device Supported

• Notebook
• Desktop PC

Cable Length

83 cm

Features

• Power Delivery Pass-through
• LED Power Indicator
• Indicator Light

Management Features

• Intel AMT over Thunderbolt with select Intel vPro PCs
• MAC Address Pass-through
• PXE Boot
• Dock Power Button Sync
• Wake-on-LAN
• WLAN to LAN Switch
• Kernel Direct Memory Access (DMA) Protection
• Dell Command Update (DCU)
• Port Disablement
• Host PC based firmware update
• Firmware update on disconnect

Number of Displays Supported

4

Screen Mode Supported

• QHD @ 60Hz
• WQHD @ 60Hz
• 4K @ 60Hz
• 5K @ 60Hz
• 6K @ 60Hz
• 8K @ 60Hz

Supported Resolutions

• 3840 x 2160
• 5120 x 2160
• 2560 x 1440
• 3440 x 1440
• 7680 x 4320
• 6144 x 3456

Maximum Data Transfer Rate

1.25 GB/s

Security Slot Type

• Kensington Security Slot
• Noble Wedge Security Slot

Power Delivery Details

• 4 x USB-A 3.2 Gen 2 (4.5W each)
• 1 x USB-C 3.2 Gen 2 (15W)
• 1 x USB-C Multi-function DisplayPort (7.5W)
• 2 x Thunderbolt 4 (15W each)
• All deliver power with or without PC

Power Delivery

• Up to 130W (Dell System)
• Up to 96W (Non-Dell System)

Video Resolution Details

• QHD - 60 Hz (Quad Display)
• WQHD - 60 Hz (Triple Display)
• 4K - 60 Hz (Dual Display)
• 5K - 60 Hz (Single Display)
• 4K - 60 Hz (Quad Display)
• 4K - 60 Hz (Triple Display)
• 6K - 60 Hz (Dual Display)
• 8K - 60 Hz (Single Display)

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet

Interfaces/Ports

Host Interface

Thunderbolt 4

Total Number of USB Ports

6

USB Type-A

Yes

Number of USB 3.2 Gen 2 Type-A Ports

4

Number of USB 3.2 Gen 2 Type-C Ports

1

Number of USB Type-A Ports

4

USB Type-C

Yes

USB Type-C Detail

1 x USB-C 3.2 Gen 2 (10 Gbps), (15W), 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

Number of USB Type-C Ports

2

Network (RJ-45)

Yes

DisplayPort

Yes

Number of DisplayPorts

2

DisplayPort Version

1.4

HDMI

Yes

Number of HDMI Ports

1

HDMI Version

2.1

Thunderbolt

Yes

Thunderbolt Ports Quantity

2

Number of Thunderbolt 4 Ports

2

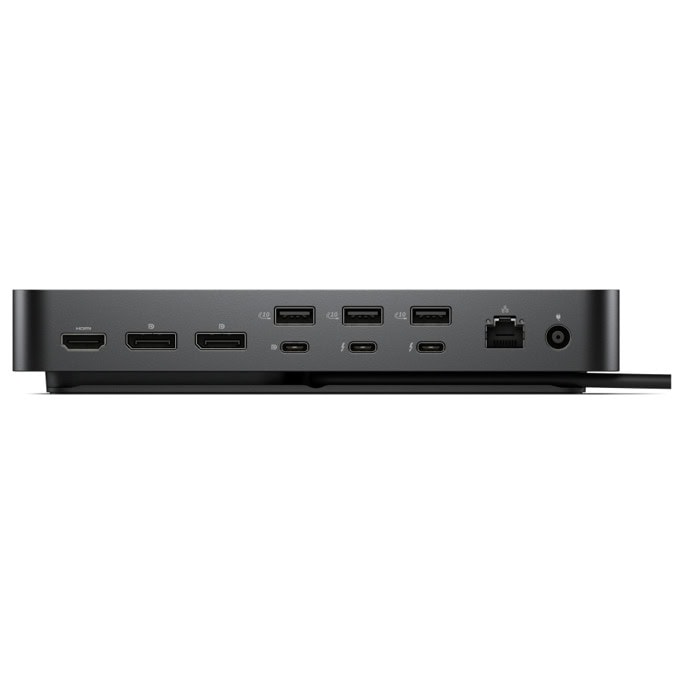

Interfaces

• 2 x DP1.4
• 1 x HDMI 2.1
• 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
• 2 x Thunderbolt 4

Software

Host Software

Host Software (Windows):


• Dell Firmware Utility
• Dell Display and Peripheral Manager
• Dell Command Update

Cloud Management (via host PC software)
Dell Device Management Console enables:


• Automatic firmware updates
• Maintain specific firmware version or downgrade
• Peripheral inventory and status

Operating System Supported

• Windows 10
• Windows 11
• Ubuntu 24.04
• macOS
• ChromeOS 137
• Red Hat Enterprise Linux 9.6

Power Description

Maximum Power Supply Wattage

180 W

Power Source Type

Power Adapter

Physical Characteristics

Height

35.3 mm

Width

205 mm

Depth

90 mm

Weight (Approximate)

567 g

Miscellaneous

Kensington Security Slot

Yes
