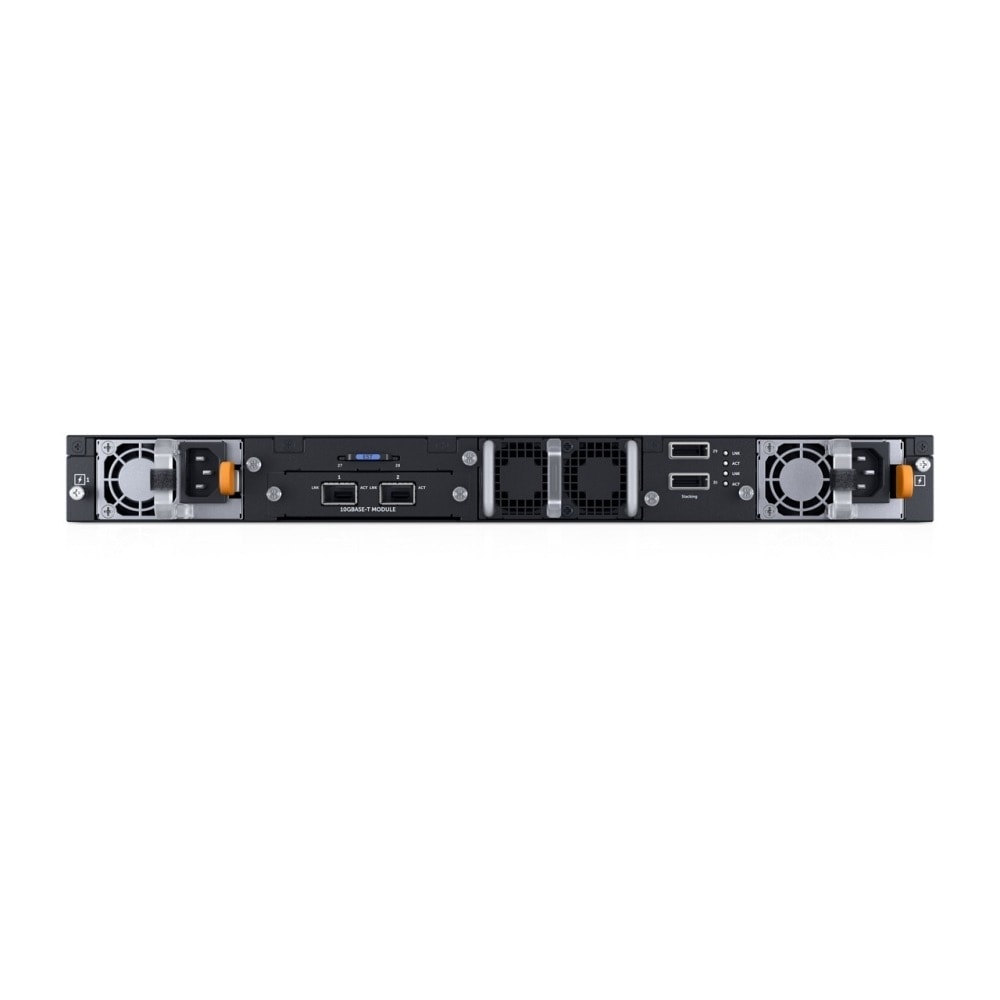

Суич Dell Networking S3148, 1000Mbps, 52 порта, 48x 10/100/1000Mb, 2x 10GbE SFP+, 2x GbE combo media ports

Dell Networking S3148, L3, 48x 1GbE, 2xCombo, 2x 10GbE SFP+ fixed ports, Stacking, IO to PSU airflow, 1x AC PSU, LLW

Суич: Fixed Port
Общ брой портове: 52
Основни портове: 48x RJ45 10/100/1000Mb auto-sensing ports
Uplink портове 2x 10GbE SFP+ ports, 2x GbE combo media ports
Свободни (10GB) слотове: Hot swappable expansion module supporting dual-port SFP+ or dual-port 10GBaseT
Управление: Management via an intuitive and familiar CLI, SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection
Stackable: 2 rear stacking ports (21Gbps) supporting up to 84Gbps (full- duplex)
Fans: Redundant variable speed fans

Захранване: 1x 200W PSU included, IO to PSU airflow
Routing: Line-rate Layer 3 routing: IPv4 and IPv6

Памет (Flash, RAM): 256 MB
Капацитет за маршрутизиране/превключване, Gbps: 260 Gbps
Пропускателна способност, Mpps: 193 Mpps
MAC адреси: 56K (80K in L2 scaled mode)
VLAN (брой, стандарти) Layer 2 VLANs: 4K; 802.1Q VLAN Tagging, Double VLAN Tagging, GVRP; Private VLAN support

L2 мрежови стандарти: IEEE compliance: 802.1AB, 802.1D, 802.1p, 802.1Q, 802.1Qbb, 802.1Qaz, 802.1s, 802.1w, 802.1x, 802.1x-2010, 802.3ab, 802.3ac, 802.3ad, 802.1ax, 802.3ae, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z

IPv6 functionality: Static routes: 16K (IPv4)/8K (IPv6), Dynamic routes: 16K (IPv4)/8K (IPv6); IPv6 Router Alert Option, IPv6 Scoped Address Architecture, ICMP for IPv6, Neighbor Discovery and etc.
Сигурност: Radius and IPv6, 802.1X with RADIUS, EAP, AES Cipher Algorithm in the SNMP User Base Security Model, SSHv2, Security Architecture for IPSec, IPSec Authentication Header, ESP Protocol

Размери (Ш, Д, В), mm: 407 x 434 x 44
Опция за монтаж: Rackmount
