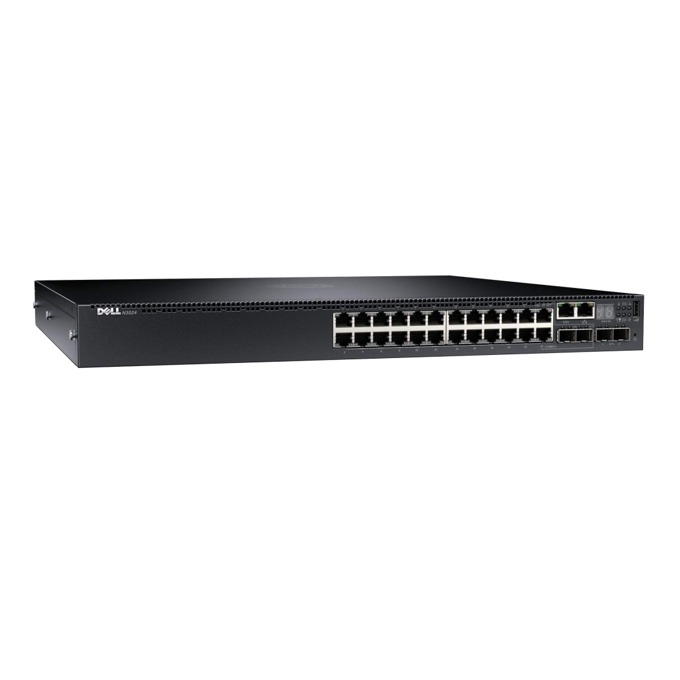

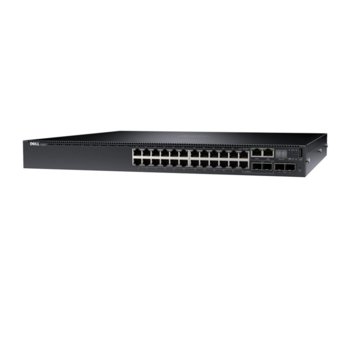

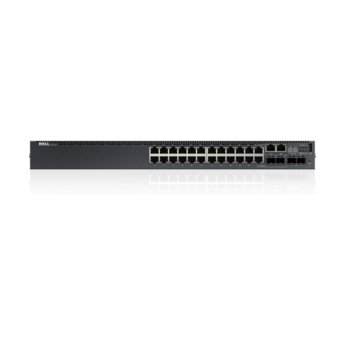

Dell Networking N3024, 24 Port 1000Mbps, 2x SFP, AC PSU

Суич, тип Fixed Port

Общ брой портове 28

Основни портове, тип 24x10/100/1000Base-T

Uplink портове 2 dual personality, 2x10GE SFP

Свободни (10GB) слотове 1x hot swap expansion module bay supporting dual-port SFP+ or dual-port 10GBaseT

Управление Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection.

Stackable 2 rear stacking ports (21Gbps) supporting up to 84Gbps (full-duplex)

Fans Redundant variable speed fans

Захранване Two internal hot swappable power supply bays, 1x 200W PSU included; Optional power supply: 200W AC hot swappable with V-Lock

Routing Layer 3 Advanced

Памет (Flash, RAM) Flash Memory: 256 MB, RAM: 1 GB

Капацитет за маршрутизиране/превключване, Gbps 212 Gbps

Пропускателна способност, Mpps 158 Mpps

MAC адреси 16000 MAC address table size

VLAN (брой, стандарти) 802.1Q VLAN Tagging, Double VLAN Tagging, GVRP; Private VLAN extensions and Private

VLAN Edge support; 128 VLAN routing interfaces; 4094 VLANs supported; Protocol-based VLANs; Max VLAN interfaces with ACLs applied: 24

QoS 8 priority queues per port, Broadcast storm control, DiffServ

L2 мрежови стандарти IEEE 802.1AB, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1S, IEEE 802.1v, IEEE 802.1W, IEEE 802.1X, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3AX, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

L3 мрежови стандарти Flexible routing options with policy-based routing to route packets based on
assigned criteria beyond destination address; OSPF routing interfaces: 8160; RIP routing interfaces: 512

IPv6 functionality General IPv6 protocols are supported.

Сигурност AAA authorization, TACACS+ accounting and RADIUS support for comprehensive secure access support.

Размери, mm 43.5 x 434.0 x 407.0 mm, 1U Rack Height; ReadyRails rack mounting system, no tools required
