3D скенер DAVID SLS-3, Full HD камера, 2,300,000 вертекса на сканиране, експорт формати OBJ/STL/PLY, HDMI, USB

DAVID SLS-2
79012126

Description
This advanced model enhances the well proven structured-light-technology with a way better handling. Never before it has been easier to adjust a 3D-scan-system on scanobjects taking different terms and various scanobject sizes into account.

The scanner is mobile and can be positioned easily in front of the surface to be scanned.

A single click in the well proven DAVID software starts the scanning process and a few seconds later the digitised 3D model appears on the screen – even the colours of the object can be optionally captured and reproduced in the resulting scan!

You are able to scan all of the sides of the object in succession and subsequently render an enclosed 360° model.

The 3D model can be exported to standard 3D file formats (such as OBJ, STL and PLY) and processed in other applications.


Specification
Scan size: 60-500 mm
Resolution/Precision: Up to 0,05% of scan size (up to 0,05 mm)
Scanning time: One single scan within 2 seconds (or up to ~10 seconds, depending on settings and computer speed)
Mesh density: Up to 2,300,000 vertices per scan
Export formats: OBJ, STL, PLY

Requirements

Required

Standard-PC (32/64 bit - Windows Vista, 7, 8, 10)
3D graphics adapter
Available VGA or HDMI port
Two available USB ports

Recommended

Dual core 2 GHz CPU
64 bit Windows
8 GB system memory
3d graphics card (e.g. NVIDIA GeForce or ATI Radeon) with 1 GB RAM or more
USB 3.0

Contents

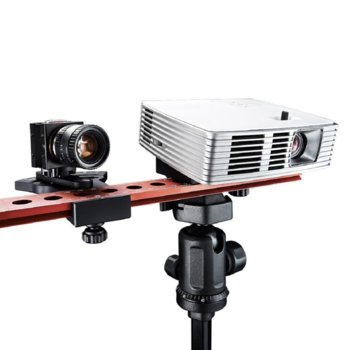

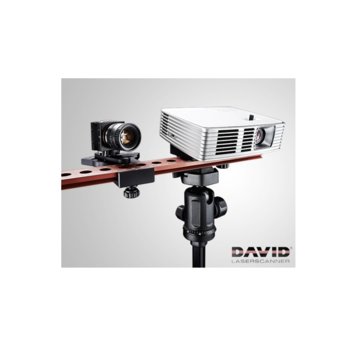

Industrial HDMI camera with high quality lens
Video projector with special lens for large focal range, including remote control
USB drive with DAVID PRO software
Sliding rail (aluminium)
Camera slider
High quality tripod
Calibration panels printed on both sides for multiple scan volumes
Printed instructions
All required connecting cables
Adapters for power supply in over 150 countries
Cable straps
