SD2C400NA-B-PV-PRO

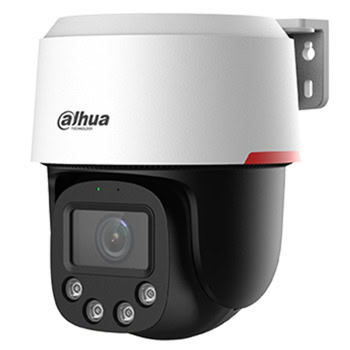

4MP WizColor WizSense Network PTZ Camera
> 1/1.8" 4Megapixel STARVIS™ CMOS.
> WizColor technology.
> Max. 25/30 fps@4MP.
> H.265 encoding.
> SMD3.0.
> Perimeter protection.
> Two-way Talk.
> Auto Tracking(Lite).
> Preset Patrol.
> IP66 protection.
Here is the merged standard-format table for the camera specifications you provided:
| Category | Specification |
|---|---|
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Pixel | 4 MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM / RAM | 256 MB / 256 MB |
| Electronic Shutter Speed | 1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.0005 [email protected] (Color, 30 IRE); 0 lux (illuminator on) |
| Illumination Distance | 30 m (Warm light) |
| Illuminator On/Off Control | Manual; auto; off |
| Illuminator Number | 4 (warm light) |
| Lens | |
| Focal Length | 4 mm |
| Max. Aperture | F1.0 |
| Field of View | H: 97°; V: 52°; D: 114° |
| Close Focus Distance | 2.6 m |
| DORI Distance (4 mm lens) | |
| Detect | 70.34 m |
| Observe | 28.14 m |
| Recognize | 14.07 m |
| Identify | 7.03 m |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 345°; Tilt: 0° to +90° |
| Manual Control Speed | Pan: 0.1°–74°/s; Tilt: 0.1°–36.4°/s |
| Preset Speed | Pan: 0.1°–62°/s; Tilt: 0.1°–36.3°/s |
| Preset / Tour | 300 / 8 (32 presets per tour) |
| Power-off Memory / Idle Motion | Yes / Preset; Tour |
| Smart Event | |
| IVS | Tripwire, Intrusion |
| Human Detection / Vehicle Detection | Yes / Yes |
| Intelligence | |
| Smart Tracking | Auto Tracking lite |
| SMD | SMD 3.0 |
| Active Deterrence | |
| Light Warning | Warm light, flash duration: 5–30s; frequency: high/med/low |
| Sound Warning | 16 built-in alarms + 10 custom; volume 0–100%; play times 1–10 |
| Video | |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264B/M/H, MJPEG |
| Supported Resolutions | 4M (2560×1440), 1080p, 720p, D1, VGA, CIF |
| Frame Rates | Main: up to 30 fps; Sub: D1/VGA/CIF up to 30 fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H264: 3,072–15,104 kbps; H265: 1,280–9,216 kbps |
| Day/Night | Color / B/W |
| BLC / WDR / HLC | Yes / DWDR / Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium; natural; street |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR / 3D NR |
| Motion Detection | Yes |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | PCM, G.711A, G.711Mu |
| Built-in Mic / Speaker | Yes / Yes |
| Network | |
| Port | RJ-45 (10/100 Base-T) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, NFS |
| Interoperability | ONVIF (S/G/T), CGI, SDK |
| Streaming | Unicast / Multicast |
| User/Host Support | 20 users, 64 Mbps total |
| Storage | Micro SD (up to 256 GB), FTP |
| Browser Support | IE 7+, Chrome, Firefox, Safari |
| Software | DMSS, 5 Series NVR, DSS Pro |
| Mobile App | iOS, Android |
| Function | |
| Abnormal Sound Alarm | Yes |
| Alarm Linkage | Capture; preset; recording; audio; email |
| Alarm Events | Motion, tampering, audio, network disconnection, IP conflict, SD state/space issues |
| Certification | |
| Certifications | CE |
| Ports | |
| Audio In / Out | 1 ch (built-in mic) / 1 ch (built-in speaker) |
| Power | |
| Supply | 12 VDC ±10%, 1A / PoE (802.3af) |
| Consumption | Basic: 3.6 W, Max: 9.5 W (illuminator + PTZ) |
| Adapter | Optional |
| Environment | |
| Temperature | –30 °C to +55 °C |
| Humidity | ≤95% |
| Protection | TVS 2000 V, surge, voltage, waterproof, dustproof |
| Structure | |
| Dimensions | 153.5 mm × Φ129.3 mm (6.04" × Φ5.09") |
| Net / Gross Weight | 0.66 kg / 1 kg |
Виж още Цифрови IP камери Dahua
Виж всички Цифрови IP камери в категорията
Документация
Технически характеристики
| Вид: | Куполни камери |
|---|---|
| Резолюция: | QHD |
| Управляема: | PTZ - Pan/Tilt/Zoom |
| Аудио: | Двупосочно |
| Безжична: | Не |
| Външен монтаж: | Да |
| IR Осветление: | Да |
| Термокамера: | Не |
