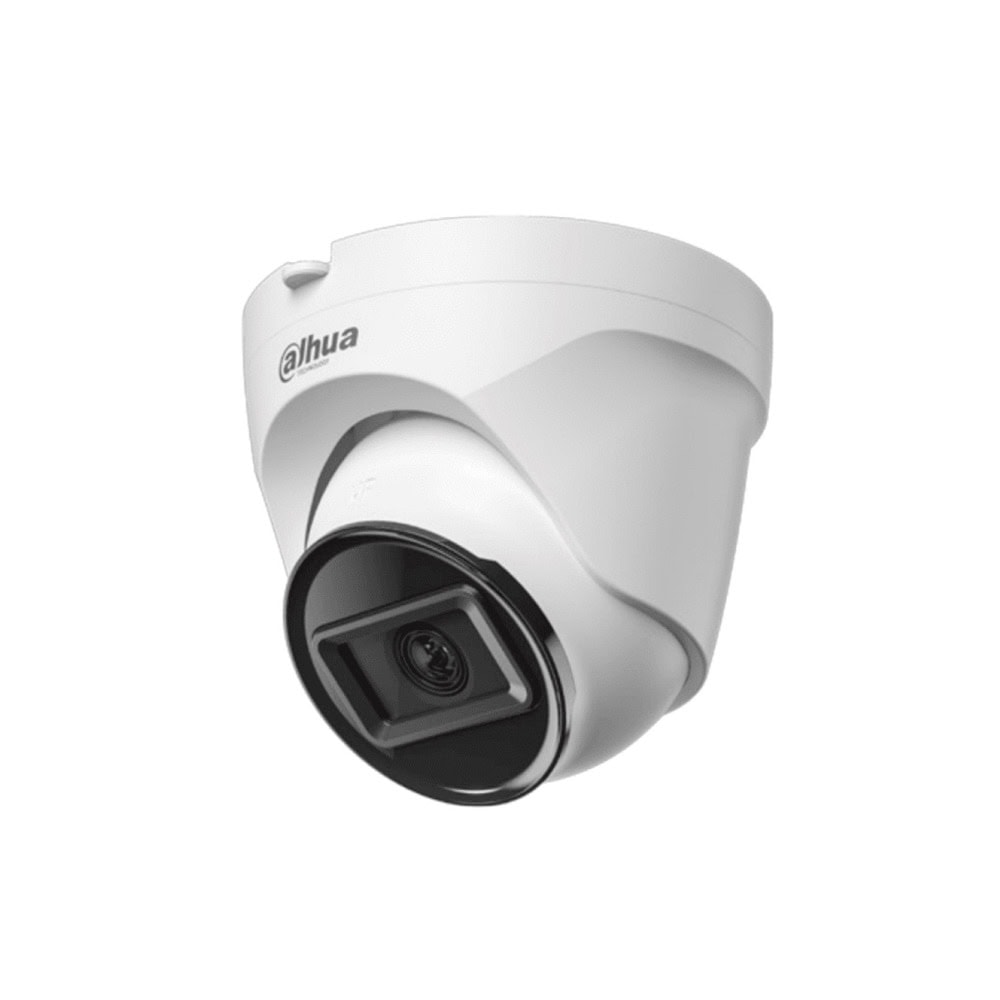

IP камера Dahua IPC-T1E40-A-0280B, куполна камера, 4MPix (2560x1440@30fps), 2.8mm обектив, H.265, IR осветеност (до 30m), външна IP67, PoE, микрофон

The Dahua ECO Series camera is designed with simplicity for practicality. Plug and play, it immediately outputs images when connected to the Dahua NVR. It supports remote monitoring through the Dahua mobile app, and triggers alarms for motion detection, video tampering, and security exception, providing you with a convenient and secure IP service.

Smart H.265+ & Smart H.264+:
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Smart Illumination:
Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment. According to the distance of the targets, the camera adjusts Illuminations intensity automatically to display the details of the moving target.

Motion Detection:
When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records.

Cyber Security:
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, Wide Voltage):
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.


Technical Specification:

Camera
Image Sensor 1/3" CMOS (4Mpix)
Max. Resolution 2560 (H) × 1440 (V)
ROM 16 MB
RAM 64 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.03 [email protected] (Color, 30 IRE)
0.003 [email protected] (B/W,30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance Up to 30 m (98.43 ft) (IR LED)
Illuminator On/Off Control Auto;Manual
Illuminator Number 2 (IR LED)
Angle Adjustment
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Max. Aperture F2.2
Field of View 2.8 mm: H: 90°; V: 49°; D: 106°
Iris Control Fixed
Close Focus Distance 2.8 mm: 1.0 m (3.28 ft)
DORI Distance
Lens
2.8 mm
Detect
68.0 m
(223.10 ft)
Observe
27.2 m
(89.24 ft)
Recognize
13.6 m
(44.62 ft)
Identify
6.8 m
(22.31 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video
Video Compression H.265; H.264; H.264B; MJPEG (Only supported by the
sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate
Main stream: 2560 × 1440@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–4096 kbps
H.265: 12 kbps–4096 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto; natural; street lamp; outdoor; manual; regional
custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/180°
Mirror Yes
Privacy Masking 4 areas

Audio
Built-in MIC Yes, built-in Mic
Audio Compression G.711a; G.711Mu; G.726; PCM

Alarm
Alarm Event: Network disconnection; IP conflict; illegal access; motion detection; audio detection; video tampering; security exception

Network
Network Port RJ-45 (10/100 Base-T)
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP;
FTP; DHCP; DNS; DDNS; NTP; Multicast; P2P
Interoperability ONVIF (Profile S; Profile T); CGI
User/Host 6 (Total bandwidth: 24 M)
Storage FTP
Browser IE; Chrome; Firefox
Management Software Smart PSS Lite; DSS; DMSS
Mobile Client iOS;Android
Cyber Security
Configuration encryption;Trusted execution;Digest;Security logs;HTTPS;Trusted upgrade;WSSE;Trusted boot;Account lockout;Generation and importing of X.509 certification;Video encryption

Power
Power Supply 12 VDC/PoE
Power Consumption
Basic: 1.4 W (12 VDC); 2.1 W (PoE)
Max. (ICR switch+illuminator intensity): 3.0 W (12 VDC); 4.2 W (PoE)

Environment
Operating Temperature –40 °C to +50 °C (–40 °F to +122 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95%
Protection IP67

Structure
Casing Material Plastic
Product Dimensions 103.2 mm × Φ109.9 mm (4.06" × Φ4.33")
Net Weight 0.24 kg (0.53 lb)
Gross Weight 0.38 kg (0.84 lb)
