Name: Докинг станция D-Link 14-in-1 DUF-E01, от USB C(Thunderbolt 4) към 1x Thunderbolt 4, 1x USB C, 3x USB A, 1x DisplayPort, 1x HDMI, 1x RJ45, 1x AUX, 1x RJ45, 1x SD четец, 1x MicroSD четец, бяла
Brand: D-Link
SKU: DSMDLINKDUFE01
Price: 294.65 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

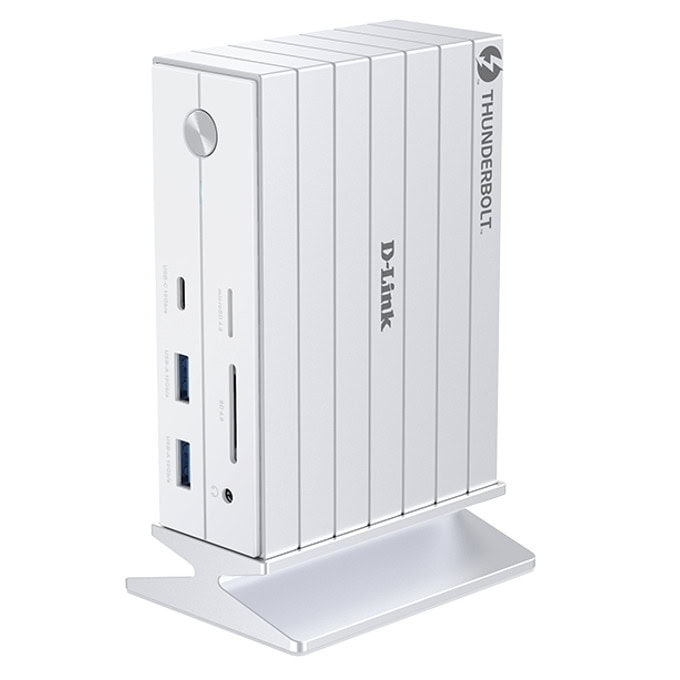

14-in-1 Thunderbolt 4 Docking Station

DUF-E01

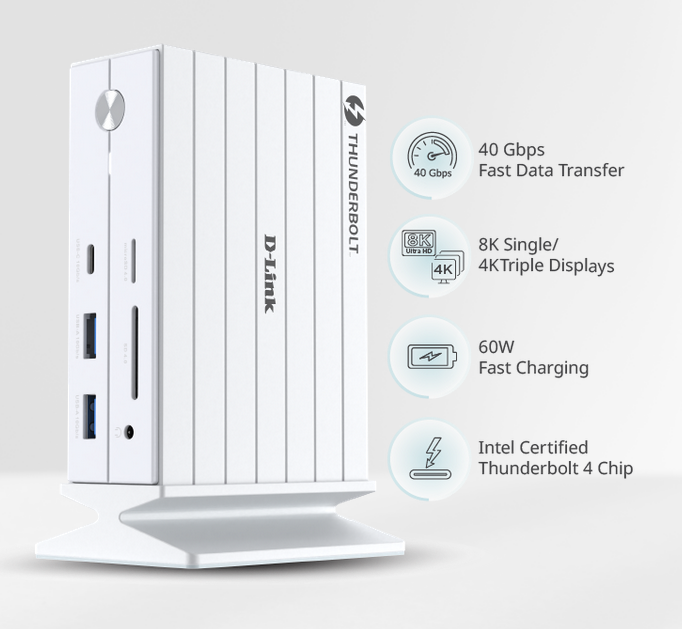

14-in-1 Expansion: Connect all your storage, peripherals, networking, and displays with 14 versatile ports
Thunderbolt 4: Thunderbolt 4 enables faster data, high-res displays, and power delivery via one connection
40 Gbps Data Transfer Speeds: Up to 40 Gbps data transfer in seconds with the Thunderbolt 4 port
4K @ 60Hz Triple Display: Extend or mirror across HDMI 2.1, DP 1.4, and Thunderbolt 4 ports
Up to 8K resolution: HDMI 2.1, DP 1.4, and Thunderbolt 4 ports support up to 8K @ 30Hz single display
PD 60W Fast Charging: Power your laptop up to PD 3.0 60W while charging another device at 15W
Magnetic Detachable Stand: Premium aluminum casing enhances heat dissipation
Aluminum Alloy Case: The detachable magnetic base keeps your setup organized

14-in-1 Expansion to Power Your Workflow

Connect storage, peripherals, networks, and displays with 14 ports, streamlining tasks and maximizing productivity.

Power, Speed, and Clarity with Thunderbolt 4

Experience 40 Gbps fast data transfer, triple 4K displays, or single 8K displays, and 60W power delivery through a single connection. Fully backward compatible with previous USB versions.　

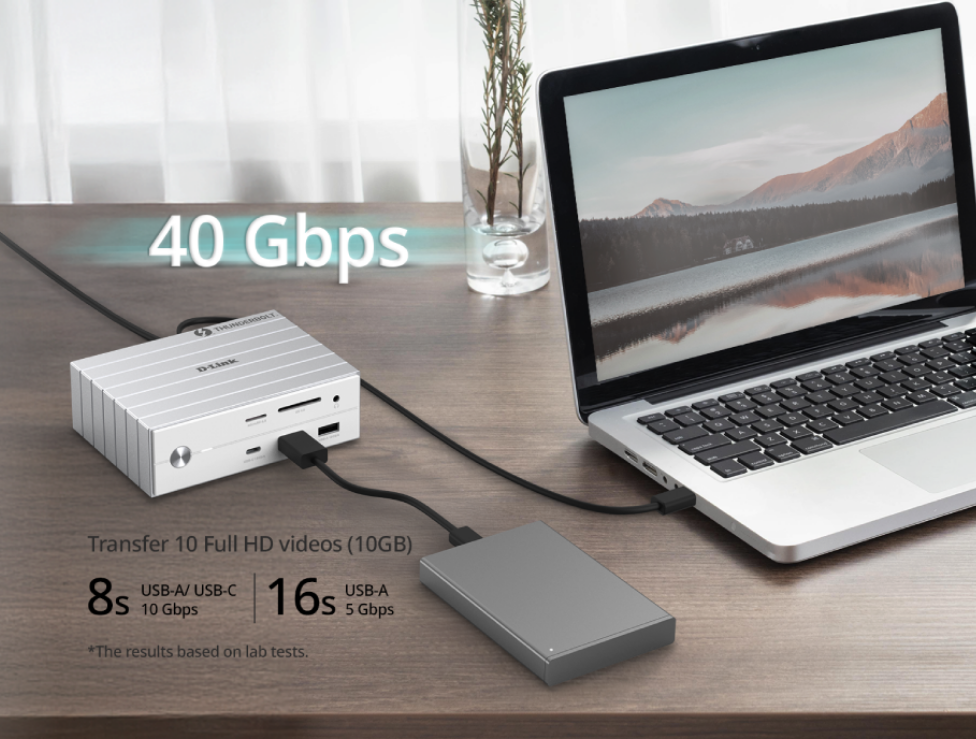

Blasting-Fast 40 Gbps Data Transfers

Transfer large files, 8K videos, and backups in seconds with Thunderbolt 4’s fast 40 Gbps bandwidth, along with three 10 Gbps and a 5 Gbps USB ports.

Specification	Details
Device Interfaces	1
Video Ports	• 1 × HDMI 2.1 (7680 × 4320 @ 30 Hz)• 1 × DP 1.4 (7680 × 4320 @ 30 Hz)• 1 × Thunderbolt 4 (multi-functional connector)
Network Port	• 1 × RJ45 (10/100/1000 Base-T)
USB & Thunderbolt Ports	• Thunderbolt 4: 40 Gbps with 15 W (5 V @ 3 A) power output (multi-functional connector)• 1 × USB 3.1 Type-C (10 Gbps)• 2 × USB 3.1 Type-A (10 Gbps)• 1 × USB 3.0 Type-A (5 Gbps)• 2 × USB 2.0 Type-A (480 Mbps)
Memory Card Slots	• SD & microSD card slots: UHS-II; supports capacity range: 32 GB to 2 TB
Audio Connector	• 3.5 mm combo audio jack: supports left/right channel and microphone
Host Connector	• Thunderbolt 4 (60 W): 40 Gbps with USB Power Delivery (PD 3.0) for fast charge of 60 W (compatible with USB4)
HDMI 2.1 Display Resolution	• Single display: 8K (7680 × 4320 @ 30 Hz)• Dual display: 4K (3840 × 2160 @ 60 Hz)• Triple display: 4K (3840 × 2160 @ 60 Hz)
DP 1.4 Display Resolution	• Single display: 8K (7680 × 4320 @ 30 Hz)• Dual display: 4K (3840 × 2160 @ 60 Hz)• Triple display: 4K (3840 × 2160 @ 60 Hz)
Thunderbolt 4 Display Resolution	• Single display: 8K (7680 × 4320 @ 30 Hz)• Dual display: 4K (3840 × 2160 @ 60 Hz)• Triple display: 4K (3840 × 2160 @ 60 Hz)
Operating System	macOS, Windows 10, Windows 11, and Android
Maximum Power Consumption	Power adapter: 135 W (24 V / 5.63 A)
Dimensions	188 × 40 × 125 mm
Weight	1.2 kg
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 65 °C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Certifications	FCC, CE

Виж още Докинг станции D-Link
Виж всички Докинг станции в категорията

Документация

Технически характеристики

Изход
USB Type-А:	Да
USB Type-C:	Да
Lightning:	Не
USB 2.0:	Да
USB 3.X:	Да
USB 4.X:	Не
Thunderbolt:	Да
DisplayPort:	Да
Mini DisplayPort:	Не
HDMI:	Да
DVI:	Не
VGA (D-Sub):	Не
RJ45:	Да
Аудио изход:	Да
Четец на карти:	Да
